LIGHTNING UK!

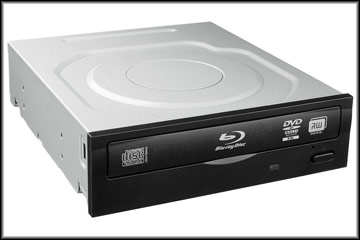

Lite-On ATAPI iHBS112 2

Recommended Posts

Firmware Version CL0F



Aone 4x BD-R [PHILIP-R04-00] @ 4x - Click Here

Kodak 4x BD-R [PHILIP-R04-00] @ 4x - Click Here

Panasonic 4x BD-R [MEI-T02-01] @ 4x - Click Here

Verbatim 2x BD-R [VERBAT-IMa-00] @ 2x - Click Here

Verbatim 4x BD-R [VERBAT-IMc-00] @ 4x - Click Here

Verbatim 6x BD-R [VERBAT-IMe-00] @ 6x - Click Here

Verbatim 2x LTH BD-R [VERBAT-IMw-00] @ 2x - Click Here

Traxdata 4x BD-R [RITEK-BR2-00] @ 4x - Click Here

Maxell 4x BD-R [RITEK-BR2-00] @ 4x - Click Here

Mirror 4x BD-R [PHILIP-R04-00] @ 4x - Click Here

RiDisc 4x BD-R [CMCMAG-BA3-00] @ 4x - Click Here

Sumvision 4x BD-R [RITEK-BR2-00] @ 4x - Click Here

Verbatim 4x LTH BD-R [VERBAT-IMv-00] @ 4x - Click Here

Victor JVC 4x LTH BD-R [TYG-BD-Y03-01] @ 4x - Click Here

Maxell 2x BD-RE [RITEK-BW1-01] @ 2x - Click Here

Panasonic 2x BD-RE [MEI-T01-01] @ 2x - Click Here

Sony 2x BD-RE [sONY-ES1-02] @ 2x - Click Here

TDK 2x BD-RE [TDKBLD-WBA-00] @ 2x - Click Here

Verbatim 2x BD-RE [VERBAT-IM0-000] @ 2x - Click Here

Victor JVC 2x BD-RE [JVCRE1-101-001] @ 2x - Click Here

Traxdata 2x BD-RE [RITEK-BW1-001] @ 2x - Click Here

Infiniti 2x BD-RE [PHILIP-W02-000] @ 2x - Click Here

Maxell 2x BD-RE DL [TDKBLD-Wfa-000] @ 2x - Click Here

Panasonic 2x BD-RE DL [MEI-T01-001] @ 2x - Click Here

Sony 2x BD-RE DL [MEI-T01-001] @ 2x - Click Here

TDK 2x BD-RE DL [TDKBLD-Wfa-000] @ 2x - Click Here



Firmware Version CL0K



Aone 4x BD-R [PHILIP-R04-000] @ 4x - Click Here

Aone 4x BD-R [PHILIP-R04-000] @ 4x - Click Here

Share this post


Link to post
Share on other sites

Aone 4x BD-R [PHILIP-R04-00] @ 4x



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: PHILIP-R04-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 13:01:44 ImgBurn Version 2.5.3.0 started!

I 13:01:44 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 13:01:44 Total Physical Memory: 3,143,248 KB - Available: 1,531,172 KB

I 13:01:44 Initialising SPTI...

I 13:01:44 Searching for SCSI / ATAPI devices...

I 13:01:44 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 13:01:44 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 13:01:44 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 13:01:45 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 13:01:45 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 13:01:45 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:01:45 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 13:01:45 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 13:01:45 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 13:01:45 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 13:01:45 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 13:01:45 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 13:01:45 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 13:02:01 Operation Started!

I 13:02:01 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 13:02:01 Source File Sectors: 12,219,392 (MODE1/2048)

I 13:02:01 Source File Size: 25,025,314,816 bytes

I 13:02:01 Source File Volume Identifier: DISCOVERY_IMAGE

I 13:02:01 Source File File System(s): None

I 13:02:01 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:02:01 Destination Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 4x)

I 13:02:01 Destination Media Sectors: 12,219,392

I 13:02:01 Write Mode: BD

I 13:02:01 Write Type: DAO

I 13:02:01 Write Speed: 4x

I 13:02:01 BD-R Verify Not Required: Yes

I 13:02:01 Link Size: Auto

I 13:02:01 Lock Volume: Yes

I 13:02:01 Test Mode: No

I 13:02:01 OPC: No

I 13:02:01 BURN-Proof: Enabled

I 13:02:02 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 13:02:02 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 13:02:02 Filling Buffer... (40 MB)

I 13:02:02 Writing LeadIn...

I 13:02:31 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 13:02:31 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:25:43 Synchronising Cache...

I 13:25:46 Closing Track...

I 13:25:47 Finalising Disc...

I 13:25:57 Exporting Graph Data...

I 13:25:57 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_22-OCTOBER-2010_13-02_PHILIP-R04-00_4x.ibg

I 13:25:57 Export Successfully Completed!

I 13:25:57 Operation Successfully Completed! - Duration: 00:23:56

I 13:25:57 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,252 KB/s (4.1x)

I 13:25:57 Cycling Tray before Verify...

W 13:26:04 Waiting for device to become ready...

I 13:26:18 Device Ready!

I 13:26:21 Operation Started!

I 13:26:21 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:26:21 Source Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 4x)

I 13:26:21 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 13:26:21 Image File Sectors: 12,219,392 (MODE1/2048)

I 13:26:21 Image File Size: 25,025,314,816 bytes

I 13:26:21 Image File Volume Identifier: DISCOVERY_IMAGE

I 13:26:21 Image File File System(s): None

I 13:26:21 Read Speed (Data/Audio): MAX / MAX

I 13:26:21 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 13:26:21 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:42:26 Exporting Graph Data...

I 13:42:26 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_22-OCTOBER-2010_13-02_PHILIP-R04-00_4x.ibg

I 13:42:26 Export Successfully Completed!

I 13:42:26 Operation Successfully Completed! - Duration: 00:16:04

I 13:42:26 Average Verify Rate: 25,351 KB/s (5.6x) - Maximum Verify Rate: 36,750 KB/s (8.2x)

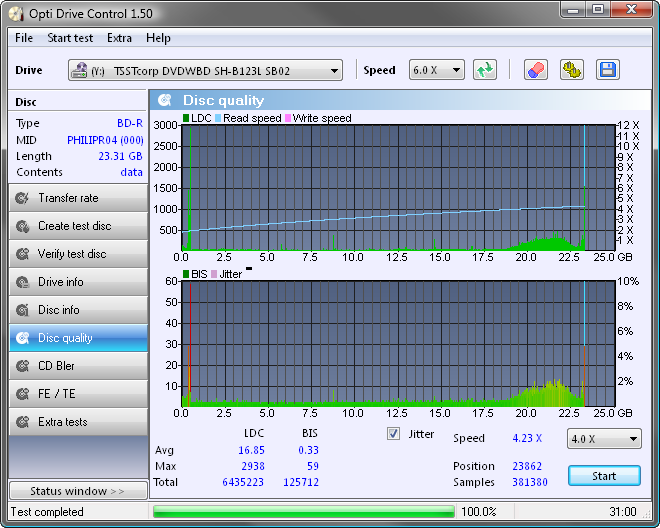

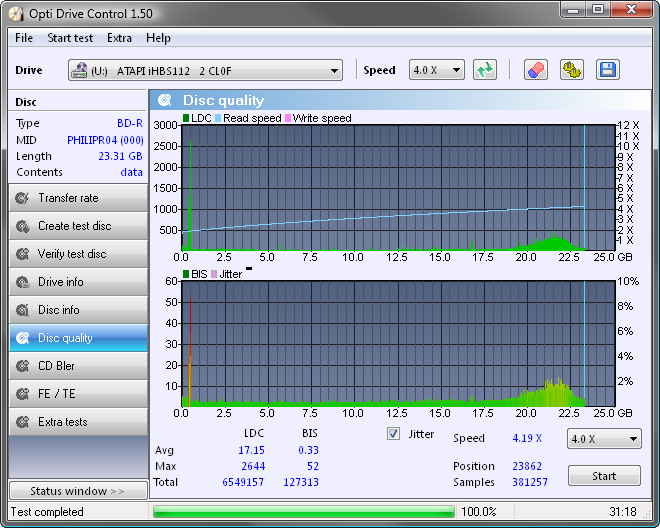

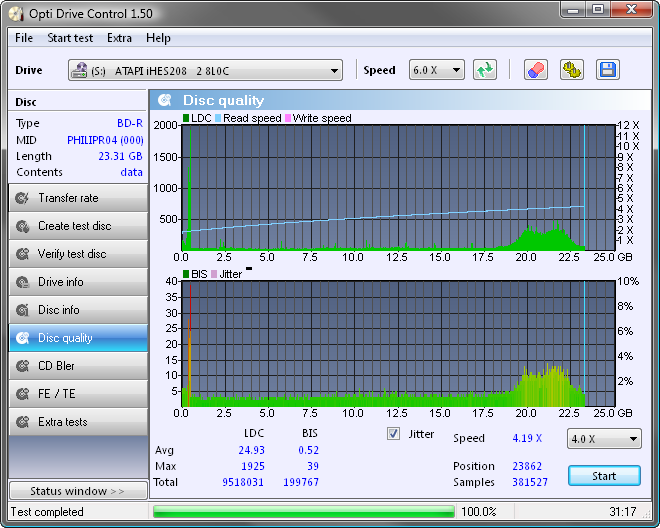

Scans:










Share this post


Link to post
Share on other sites

Kodak 4x BD-R [PHILIP-R04-00] @ 4x



Kodak CAT 3936194 - Made in India



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: PHILIP-R04-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 21:29:32 ImgBurn Version 2.5.3.0 started!

I 21:29:32 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:29:32 Total Physical Memory: 3,143,248 KB - Available: 856,752 KB

I 21:29:32 Initialising SPTI...

I 21:29:32 Searching for SCSI / ATAPI devices...

I 21:29:32 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:29:33 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:29:33 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 21:29:33 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:29:33 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:29:33 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:29:33 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:29:33 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:29:33 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:29:33 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:29:33 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:29:34 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:29:34 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:30:17 Operation Started!

I 21:30:17 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:30:17 Source File Sectors: 12,219,392 (MODE1/2048)

I 21:30:17 Source File Size: 25,025,314,816 bytes

I 21:30:17 Source File Volume Identifier: DISCOVERY_IMAGE

I 21:30:17 Source File File System(s): None

I 21:30:17 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:30:17 Destination Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 4x)

I 21:30:17 Destination Media Sectors: 12,219,392

I 21:30:17 Write Mode: BD

I 21:30:17 Write Type: DAO

I 21:30:17 Write Speed: 4x

I 21:30:17 BD-R Verify Not Required: Yes

I 21:30:17 Link Size: Auto

I 21:30:17 Lock Volume: Yes

I 21:30:17 Test Mode: No

I 21:30:17 OPC: No

I 21:30:17 BURN-Proof: Enabled

I 21:30:19 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 21:30:19 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 21:30:19 Filling Buffer... (40 MB)

I 21:30:19 Writing LeadIn...

I 21:30:48 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:30:48 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 21:53:59 Synchronising Cache...

I 21:54:03 Closing Track...

I 21:54:04 Finalising Disc...

I 21:54:15 Exporting Graph Data...

I 21:54:15 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_23-OCTOBER-2010_21-30_PHILIP-R04-00_4x.ibg

I 21:54:15 Export Successfully Completed!

I 21:54:15 Operation Successfully Completed! - Duration: 00:23:58

I 21:54:15 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,229 KB/s (4.1x)

I 21:54:15 Cycling Tray before Verify...

W 21:54:23 Waiting for device to become ready...

I 21:54:39 Device Ready!

I 21:54:41 Operation Started!

I 21:54:41 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:54:41 Source Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 4x)

I 21:54:41 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:54:41 Image File Sectors: 12,219,392 (MODE1/2048)

I 21:54:41 Image File Size: 25,025,314,816 bytes

I 21:54:41 Image File Volume Identifier: DISCOVERY_IMAGE

I 21:54:41 Image File File System(s): None

I 21:54:41 Read Speed (Data/Audio): MAX / MAX

I 21:54:41 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:54:41 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:10:47 Exporting Graph Data...

I 22:10:47 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_23-OCTOBER-2010_21-30_PHILIP-R04-00_4x.ibg

I 22:10:47 Export Successfully Completed!

I 22:10:47 Operation Successfully Completed! - Duration: 00:16:05

I 22:10:47 Average Verify Rate: 25,325 KB/s (5.6x) - Maximum Verify Rate: 36,732 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Panasonic 4x BD-R [MEI-T02-01] @ 4x



Panasonic LM-BRS2LWE10 - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: MEI-T02-01

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 20:00:44 ImgBurn Version 2.5.3.0 started!

I 20:00:44 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 20:00:44 Total Physical Memory: 3,143,248 KB - Available: 1,249,208 KB

I 20:00:44 Initialising SPTI...

I 20:00:44 Searching for SCSI / ATAPI devices...

I 20:00:44 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 20:00:44 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 20:00:44 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 20:00:45 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 20:00:45 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 20:00:45 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:00:45 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 20:00:45 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 20:00:45 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 20:00:45 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 20:00:45 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:00:45 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 20:00:45 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 20:01:00 Operation Started!

I 20:01:00 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:01:00 Source File Sectors: 12,219,392 (MODE1/2048)

I 20:01:00 Source File Size: 25,025,314,816 bytes

I 20:01:00 Source File Volume Identifier: DISCOVERY_IMAGE

I 20:01:00 Source File File System(s): None

I 20:01:00 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:01:00 Destination Media Type: BD-R (Disc ID: MEI-T02-01) (Speeds: 4x)

I 20:01:00 Destination Media Sectors: 12,219,392

I 20:01:00 Write Mode: BD

I 20:01:00 Write Type: DAO

I 20:01:00 Write Speed: 4x

I 20:01:00 BD-R Verify Not Required: Yes

I 20:01:00 Link Size: Auto

I 20:01:00 Lock Volume: Yes

I 20:01:00 Test Mode: No

I 20:01:00 OPC: No

I 20:01:00 BURN-Proof: Enabled

I 20:01:02 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 20:01:02 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 20:01:02 Filling Buffer... (40 MB)

I 20:01:02 Writing LeadIn...

I 20:01:31 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:01:31 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:24:43 Synchronising Cache...

I 20:24:46 Closing Track...

I 20:24:47 Finalising Disc...

I 20:24:58 Exporting Graph Data...

I 20:24:58 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_24-OCTOBER-2010_20-01_MEI-T02-01_4x.ibg

I 20:24:58 Export Successfully Completed!

I 20:24:58 Operation Successfully Completed! - Duration: 00:23:57

I 20:24:58 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,285 KB/s (4.1x)

I 20:24:58 Cycling Tray before Verify...

W 20:25:05 Waiting for device to become ready...

I 20:25:19 Device Ready!

I 20:25:22 Operation Started!

I 20:25:22 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:25:22 Source Media Type: BD-R (Disc ID: MEI-T02-01) (Speeds: 4x)

I 20:25:22 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:25:22 Image File Sectors: 12,219,392 (MODE1/2048)

I 20:25:22 Image File Size: 25,025,314,816 bytes

I 20:25:22 Image File Volume Identifier: DISCOVERY_IMAGE

I 20:25:22 Image File File System(s): None

I 20:25:22 Read Speed (Data/Audio): MAX / MAX

I 20:25:22 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:25:22 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:41:29 Exporting Graph Data...

I 20:41:29 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_24-OCTOBER-2010_20-01_MEI-T02-01_4x.ibg

I 20:41:29 Export Successfully Completed!

I 20:41:29 Operation Successfully Completed! - Duration: 00:16:06

I 20:41:29 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 2x BD-R [VERBAT-IMa-00] @ 2x



Verbatim 43612 - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: VERBAT-IMa-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Results:

I 20:04:54 ImgBurn Version 2.5.3.0 started!

I 20:04:54 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 20:04:54 Total Physical Memory: 3,143,248 KB - Available: 1,058,592 KB

I 20:04:54 Initialising SPTI...

I 20:04:54 Searching for SCSI / ATAPI devices...

I 20:04:54 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 20:04:54 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 20:04:54 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 20:04:54 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 20:04:54 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 20:04:54 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:04:54 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 20:04:54 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 20:04:54 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 20:04:54 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 20:04:55 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:04:55 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 20:04:55 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 20:05:02 Operation Started!

I 20:05:02 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:05:02 Source File Sectors: 12,219,392 (MODE1/2048)

I 20:05:02 Source File Size: 25,025,314,816 bytes

I 20:05:02 Source File Volume Identifier: DISCOVERY_IMAGE

I 20:05:02 Source File File System(s): None

I 20:05:02 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:05:02 Destination Media Type: BD-R (Disc ID: VERBAT-IMa-00) (Speeds: 2x)

I 20:05:02 Destination Media Sectors: 12,219,392

I 20:05:02 Write Mode: BD

I 20:05:02 Write Type: DAO

I 20:05:02 Write Speed: 2x

I 20:05:02 BD-R Verify Not Required: Yes

I 20:05:02 Link Size: Auto

I 20:05:02 Lock Volume: Yes

I 20:05:02 Test Mode: No

I 20:05:02 OPC: No

I 20:05:02 BURN-Proof: Enabled

I 20:05:03 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 20:05:03 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 20:05:04 Filling Buffer... (40 MB)

I 20:05:04 Writing LeadIn...

I 20:05:36 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:05:36 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:51:44 Synchronising Cache...

I 20:51:46 Closing Track...

I 20:51:47 Finalising Disc...

I 20:51:57 Exporting Graph Data...

I 20:51:57 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_25-OCTOBER-2010_20-05_VERBAT-IMa-00_2x.ibg

I 20:51:57 Export Successfully Completed!

I 20:51:57 Operation Successfully Completed! - Duration: 00:46:54

I 20:51:57 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,098 KB/s (2.0x)

I 20:51:57 Cycling Tray before Verify...

W 20:52:04 Waiting for device to become ready...

I 20:52:19 Device Ready!

I 20:52:21 Operation Started!

I 20:52:21 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:52:21 Source Media Type: BD-R (Disc ID: VERBAT-IMa-00) (Speeds: 2x)

I 20:52:21 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:52:21 Image File Sectors: 12,219,392 (MODE1/2048)

I 20:52:21 Image File Size: 25,025,314,816 bytes

I 20:52:21 Image File Volume Identifier: DISCOVERY_IMAGE

I 20:52:21 Image File File System(s): None

I 20:52:21 Read Speed (Data/Audio): MAX / MAX

I 20:52:21 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:52:21 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 21:08:28 Exporting Graph Data...

I 21:08:28 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_25-OCTOBER-2010_20-05_VERBAT-IMa-00_2x.ibg

I 21:08:28 Export Successfully Completed!

I 21:08:28 Operation Successfully Completed! - Duration: 00:16:06

I 21:08:28 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

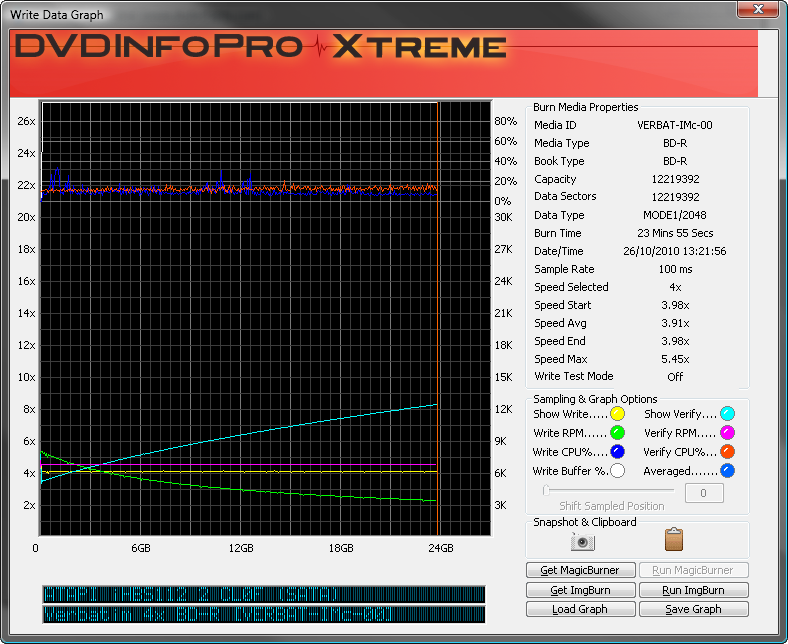

Verbatim 4x BD-R [VERBAT-IMc-00] @ 4x



Verbatim 43687 - Made in Taiwan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: VERBAT-IMc-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 13:21:48 ImgBurn Version 2.5.3.0 started!

I 13:21:48 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 13:21:48 Total Physical Memory: 3,143,248 KB - Available: 1,146,572 KB

I 13:21:49 Initialising SPTI...

I 13:21:49 Searching for SCSI / ATAPI devices...

I 13:21:49 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 13:21:49 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 13:21:49 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 13:21:49 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 13:21:49 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 13:21:49 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:21:49 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 13:21:49 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 13:21:49 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 13:21:49 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 13:21:50 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 13:21:50 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 13:21:50 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 13:21:56 Operation Started!

I 13:21:56 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 13:21:56 Source File Sectors: 12,219,392 (MODE1/2048)

I 13:21:56 Source File Size: 25,025,314,816 bytes

I 13:21:56 Source File Volume Identifier: DISCOVERY_IMAGE

I 13:21:56 Source File File System(s): None

I 13:21:56 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:21:56 Destination Media Type: BD-R (Disc ID: VERBAT-IMc-00) (Speeds: 4x)

I 13:21:56 Destination Media Sectors: 12,219,392

I 13:21:56 Write Mode: BD

I 13:21:56 Write Type: DAO

I 13:21:56 Write Speed: 4x

I 13:21:56 BD-R Verify Not Required: Yes

I 13:21:56 Link Size: Auto

I 13:21:56 Lock Volume: Yes

I 13:21:56 Test Mode: No

I 13:21:56 OPC: No

I 13:21:56 BURN-Proof: Enabled

I 13:21:57 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 13:21:57 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 13:21:57 Filling Buffer... (40 MB)

I 13:21:57 Writing LeadIn...

I 13:22:27 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 13:22:27 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:45:39 Synchronising Cache...

I 13:45:42 Closing Track...

I 13:45:43 Finalising Disc...

I 13:45:53 Exporting Graph Data...

I 13:45:53 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_26-OCTOBER-2010_13-21_VERBAT-IMc-00_4x.ibg

I 13:45:53 Export Successfully Completed!

I 13:45:53 Operation Successfully Completed! - Duration: 00:23:57

I 13:45:53 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,341 KB/s (4.1x)

I 13:45:53 Cycling Tray before Verify...

W 13:46:00 Waiting for device to become ready...

I 13:46:14 Device Ready!

I 13:46:17 Operation Started!

I 13:46:17 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:46:17 Source Media Type: BD-R (Disc ID: VERBAT-IMc-00) (Speeds: 4x)

I 13:46:17 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 13:46:17 Image File Sectors: 12,219,392 (MODE1/2048)

I 13:46:17 Image File Size: 25,025,314,816 bytes

I 13:46:17 Image File Volume Identifier: DISCOVERY_IMAGE

I 13:46:17 Image File File System(s): None

I 13:46:17 Read Speed (Data/Audio): MAX / MAX

I 13:46:17 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 13:46:17 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 14:02:24 Exporting Graph Data...

I 14:02:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_26-OCTOBER-2010_13-21_VERBAT-IMc-00_4x.ibg

I 14:02:24 Export Successfully Completed!

I 14:02:24 Operation Successfully Completed! - Duration: 00:16:06

I 14:02:24 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,682 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 6x BD-R [VERBAT-IMe-00] @ 6x



Verbatim 43714 - Made in Taiwan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x, 6x



BD Disc Information:

Disc ID: VERBAT-IMe-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 26,970 KB/s (6x)



Results:

I 21:21:51 ImgBurn Version 2.5.3.0 started!

I 21:21:51 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:21:51 Total Physical Memory: 3,143,248 KB - Available: 933,712 KB

I 21:21:51 Initialising SPTI...

I 21:21:51 Searching for SCSI / ATAPI devices...

I 21:21:51 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:21:52 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:21:52 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 21:21:52 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:21:52 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:21:52 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:21:52 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:21:52 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:21:52 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:21:52 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:21:52 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:21:53 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:21:53 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:22:15 Operation Started!

I 21:22:15 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:22:15 Source File Sectors: 12,219,392 (MODE1/2048)

I 21:22:15 Source File Size: 25,025,314,816 bytes

I 21:22:15 Source File Volume Identifier: DISCOVERY_IMAGE

I 21:22:15 Source File File System(s): None

I 21:22:15 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:22:15 Destination Media Type: BD-R (Disc ID: VERBAT-IMe-00) (Speeds: 4x, 6x)

I 21:22:15 Destination Media Sectors: 12,219,392

I 21:22:15 Write Mode: BD

I 21:22:15 Write Type: DAO

I 21:22:15 Write Speed: 6x

I 21:22:15 BD-R Verify Not Required: Yes

I 21:22:15 Link Size: Auto

I 21:22:15 Lock Volume: Yes

I 21:22:15 Test Mode: No

I 21:22:15 OPC: No

I 21:22:15 BURN-Proof: Enabled

I 21:22:16 Write Speed Successfully Set! - Effective: 26,970 KB/s (6x)

I 21:22:16 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 21:22:17 Filling Buffer... (40 MB)

I 21:22:17 Writing LeadIn...

I 21:22:49 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:22:49 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 21:38:29 Synchronising Cache...

I 21:38:33 Closing Track...

I 21:38:34 Finalising Disc...

I 21:38:45 Exporting Graph Data...

I 21:38:45 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_26-OCTOBER-2010_21-22_VERBAT-IMe-00_6x.ibg

I 21:38:45 Export Successfully Completed!

I 21:38:45 Operation Successfully Completed! - Duration: 00:16:30

I 21:38:45 Average Write Rate: 26,026 KB/s (5.8x) - Maximum Write Rate: 27,250 KB/s (6.1x)

I 21:38:45 Cycling Tray before Verify...

W 21:38:52 Waiting for device to become ready...

I 21:39:06 Device Ready!

I 21:39:09 Operation Started!

I 21:39:09 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:39:09 Source Media Type: BD-R (Disc ID: VERBAT-IMe-00) (Speeds: 4x, 6x)

I 21:39:09 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:39:09 Image File Sectors: 12,219,392 (MODE1/2048)

I 21:39:09 Image File Size: 25,025,314,816 bytes

I 21:39:09 Image File Volume Identifier: DISCOVERY_IMAGE

I 21:39:09 Image File File System(s): None

I 21:39:09 Read Speed (Data/Audio): MAX / MAX

I 21:39:09 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:39:09 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 21:55:16 Exporting Graph Data...

I 21:55:16 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_26-OCTOBER-2010_21-22_VERBAT-IMe-00_6x.ibg

I 21:55:16 Export Successfully Completed!

I 21:55:16 Operation Successfully Completed! - Duration: 00:16:06

I 21:55:16 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)

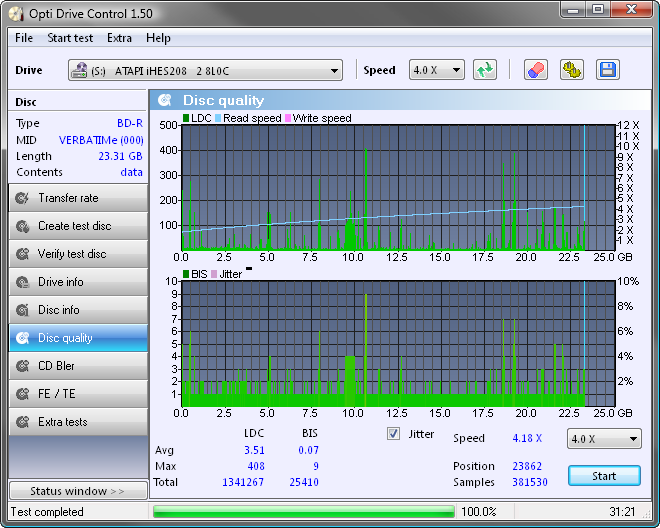

Scans:










Share this post


Link to post
Share on other sites

Verbatim 2x LTH BD-R [VERBAT-IMw-00] @ 2x



Verbatim 43692 - Made in Singapore



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: VERBAT-IMw-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Negative

Recorded Mark Polarity: LTH

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 8,990 KB/s (2x)



Results:

I 21:27:26 ImgBurn Version 2.5.3.0 started!

I 21:27:26 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:27:26 Total Physical Memory: 3,143,248 KB - Available: 1,066,200 KB

I 21:27:26 Initialising SPTI...

I 21:27:26 Searching for SCSI / ATAPI devices...

I 21:27:27 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:27:27 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:27:27 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 21:27:27 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:27:27 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:27:27 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:27:27 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:27:27 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:27:27 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:27:27 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:27:27 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:27:28 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:27:28 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:27:35 Operation Started!

I 21:27:35 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:27:35 Source File Sectors: 12,219,392 (MODE1/2048)

I 21:27:35 Source File Size: 25,025,314,816 bytes

I 21:27:35 Source File Volume Identifier: DISCOVERY_IMAGE

I 21:27:35 Source File File System(s): None

I 21:27:35 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:27:35 Destination Media Type: BD-R (Disc ID: VERBAT-IMw-00) (Speeds: 2x)

I 21:27:35 Destination Media Sectors: 12,219,392

I 21:27:35 Write Mode: BD

I 21:27:35 Write Type: DAO

I 21:27:35 Write Speed: 2x

I 21:27:35 BD-R Verify Not Required: Yes

I 21:27:35 Link Size: Auto

I 21:27:35 Lock Volume: Yes

I 21:27:35 Test Mode: No

I 21:27:35 OPC: No

I 21:27:35 BURN-Proof: Enabled

I 21:27:36 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 21:27:36 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 21:27:37 Filling Buffer... (40 MB)

I 21:27:37 Writing LeadIn...

I 21:27:48 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:27:48 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:13:56 Synchronising Cache...

I 22:13:58 Closing Track...

I 22:13:59 Finalising Disc...

I 22:14:09 Exporting Graph Data...

I 22:14:09 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_27-OCTOBER-2010_21-27_VERBAT-IMw-00_2x.ibg

I 22:14:09 Export Successfully Completed!

I 22:14:09 Operation Successfully Completed! - Duration: 00:46:34

I 22:14:09 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,098 KB/s (2.0x)

I 22:14:09 Cycling Tray before Verify...

W 22:14:16 Waiting for device to become ready...

I 22:14:29 Device Ready!

I 22:14:32 Operation Started!

I 22:14:32 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:14:32 Source Media Type: BD-R (Disc ID: VERBAT-IMw-00) (Speeds: 2x)

I 22:14:32 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:14:32 Image File Sectors: 12,219,392 (MODE1/2048)

I 22:14:32 Image File Size: 25,025,314,816 bytes

I 22:14:32 Image File Volume Identifier: DISCOVERY_IMAGE

I 22:14:32 Image File File System(s): None

I 22:14:32 Read Speed (Data/Audio): MAX / MAX

I 22:14:32 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:14:32 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:44:24 Exporting Graph Data...

I 22:44:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_27-OCTOBER-2010_21-27_VERBAT-IMw-00_2x.ibg

I 22:44:24 Export Successfully Completed!

I 22:44:24 Operation Successfully Completed! - Duration: 00:29:52

I 22:44:24 Average Verify Rate: 13,645 KB/s (3.0x) - Maximum Verify Rate: 27,735 KB/s (6.2x)






Scans:










Share this post


Link to post
Share on other sites

Traxdata 4x BD-R [RITEK-BR2-00] @ 4x



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: RITEK-BR2-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)



Results:

I 12:23:57 ImgBurn Version 2.5.3.0 started!

I 12:23:57 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 12:23:57 Total Physical Memory: 3,143,248 KB - Available: 1,193,424 KB

I 12:23:57 Initialising SPTI...

I 12:23:57 Searching for SCSI / ATAPI devices...

I 12:23:57 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 12:23:57 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 12:23:57 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 12:23:57 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 12:23:57 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 12:23:57 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:23:57 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 12:23:57 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 12:23:57 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 12:23:58 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 12:23:58 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:23:58 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 12:23:58 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 12:24:07 Operation Started!

I 12:24:07 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:24:07 Source File Sectors: 12,219,392 (MODE1/2048)

I 12:24:07 Source File Size: 25,025,314,816 bytes

I 12:24:07 Source File Volume Identifier: DISCOVERY_IMAGE

I 12:24:07 Source File File System(s): None

I 12:24:07 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:24:07 Destination Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 4x)

I 12:24:07 Destination Media Sectors: 12,219,392

I 12:24:07 Write Mode: BD

I 12:24:07 Write Type: DAO

I 12:24:07 Write Speed: 4x

I 12:24:07 BD-R Verify Not Required: Yes

I 12:24:07 Link Size: Auto

I 12:24:07 Lock Volume: Yes

I 12:24:07 Test Mode: No

I 12:24:07 OPC: No

I 12:24:07 BURN-Proof: Enabled

I 12:24:08 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 12:24:08 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 12:24:08 Filling Buffer... (40 MB)

I 12:24:08 Writing LeadIn...

I 12:24:38 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:24:38 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 12:47:49 Synchronising Cache...

I 12:47:53 Closing Track...

I 12:47:54 Finalising Disc...

I 12:48:05 Exporting Graph Data...

I 12:48:05 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_29-OCTOBER-2010_12-24_RITEK-BR2-00_4x.ibg

I 12:48:05 Export Successfully Completed!

I 12:48:05 Operation Successfully Completed! - Duration: 00:23:58

I 12:48:05 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,211 KB/s (4.1x)

I 12:48:05 Cycling Tray before Verify...

W 12:48:12 Waiting for device to become ready...

I 12:48:27 Device Ready!

I 12:48:30 Operation Started!

I 12:48:30 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:48:30 Source Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 4x)

I 12:48:30 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:48:30 Image File Sectors: 12,219,392 (MODE1/2048)

I 12:48:30 Image File Size: 25,025,314,816 bytes

I 12:48:30 Image File Volume Identifier: DISCOVERY_IMAGE

I 12:48:30 Image File File System(s): None

I 12:48:30 Read Speed (Data/Audio): MAX / MAX

I 12:48:30 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:48:30 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:04:36 Exporting Graph Data...

I 13:04:36 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_29-OCTOBER-2010_12-24_RITEK-BR2-00_4x.ibg

I 13:04:36 Export Successfully Completed!

I 13:04:36 Operation Successfully Completed! - Duration: 00:16:06

I 13:04:36 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Maxell 4x BD-R [RITEK-BR2-00] @ 4x



Maxell EU:ITEM 276072 - Made in Taiwan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: RITEK-BR2-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 13:52:06 ImgBurn Version 2.5.3.0 started!

I 13:52:06 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 13:52:06 Total Physical Memory: 3,143,248 KB - Available: 940,928 KB

I 13:52:06 Initialising SPTI...

I 13:52:06 Searching for SCSI / ATAPI devices...

I 13:52:07 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 13:52:07 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 13:52:07 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 13:52:07 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 13:52:07 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 13:52:07 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:52:07 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 13:52:07 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 13:52:07 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 13:52:07 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 13:52:07 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 13:52:07 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 13:52:07 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 13:52:10 Operation Started!

I 13:52:10 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 13:52:10 Source File Sectors: 12,219,392 (MODE1/2048)

I 13:52:10 Source File Size: 25,025,314,816 bytes

I 13:52:10 Source File Volume Identifier: DISCOVERY_IMAGE

I 13:52:10 Source File File System(s): None

I 13:52:10 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 13:52:10 Destination Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 4x)

I 13:52:10 Destination Media Sectors: 12,219,392

I 13:52:10 Write Mode: BD

I 13:52:10 Write Type: DAO

I 13:52:10 Write Speed: 4x

I 13:52:10 BD-R Verify Not Required: Yes

I 13:52:10 Link Size: Auto

I 13:52:10 Lock Volume: Yes

I 13:52:10 Test Mode: No

I 13:52:10 OPC: No

I 13:52:10 BURN-Proof: Enabled

I 13:52:12 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 13:52:12 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 13:52:12 Filling Buffer... (40 MB)

I 13:52:12 Writing LeadIn...

I 13:52:41 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 13:52:41 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 14:15:52 Synchronising Cache...

I 14:15:55 Closing Track...

I 14:15:56 Finalising Disc...

I 14:16:08 Exporting Graph Data...

I 14:16:08 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_30-OCTOBER-2010_13-52_RITEK-BR2-00_4x.ibg

I 14:16:08 Export Successfully Completed!

I 14:16:08 Operation Successfully Completed! - Duration: 00:23:57

I 14:16:08 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,308 KB/s (4.1x)

I 14:16:08 Cycling Tray before Verify...

W 14:16:15 Waiting for device to become ready...

I 14:16:31 Device Ready!

I 14:16:34 Operation Started!

I 14:16:34 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:16:34 Source Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 4x)

I 14:16:34 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 14:16:34 Image File Sectors: 12,219,392 (MODE1/2048)

I 14:16:34 Image File Size: 25,025,314,816 bytes

I 14:16:34 Image File Volume Identifier: DISCOVERY_IMAGE

I 14:16:34 Image File File System(s): None

I 14:16:34 Read Speed (Data/Audio): MAX / MAX

I 14:16:34 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 14:16:34 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 14:32:40 Exporting Graph Data...

I 14:32:40 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_30-OCTOBER-2010_13-52_RITEK-BR2-00_4x.ibg

I 14:32:40 Export Successfully Completed!

I 14:32:40 Operation Successfully Completed! - Duration: 00:16:06

I 14:32:40 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,732 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Mirror 4x BD-R [PHILIP-R04-00] @ 4x



Mirror Re-order: 70810X10P



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: PHILIP-R04-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 22:43:03 ImgBurn Version 2.5.3.0 started!

I 22:43:03 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 22:43:03 Total Physical Memory: 3,143,248 KB - Available: 1,022,816 KB

I 22:43:03 Initialising SPTI...

I 22:43:03 Searching for SCSI / ATAPI devices...

I 22:43:03 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 22:43:03 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 22:43:03 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 22:43:04 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 22:43:04 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 22:43:04 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:43:04 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 22:43:04 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 22:43:04 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 22:43:04 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 22:43:04 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:43:05 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 22:43:05 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 22:43:09 Operation Started!

I 22:43:09 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:43:09 Source File Sectors: 12,219,392 (MODE1/2048)

I 22:43:09 Source File Size: 25,025,314,816 bytes

I 22:43:09 Source File Volume Identifier: DISCOVERY_IMAGE

I 22:43:09 Source File File System(s): None

I 22:43:09 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:43:09 Destination Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 4x)

I 22:43:09 Destination Media Sectors: 12,219,392

I 22:43:09 Write Mode: BD

I 22:43:09 Write Type: DAO

I 22:43:09 Write Speed: 4x

I 22:43:09 BD-R Verify Not Required: Yes

I 22:43:09 Link Size: Auto

I 22:43:09 Lock Volume: Yes

I 22:43:09 Test Mode: No

I 22:43:09 OPC: No

I 22:43:09 BURN-Proof: Enabled

I 22:43:10 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 22:43:11 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 22:43:11 Filling Buffer... (40 MB)

I 22:43:11 Writing LeadIn...

I 22:43:39 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:43:39 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:06:51 Synchronising Cache...

I 23:06:54 Closing Track...

I 23:06:55 Finalising Disc...

I 23:07:05 Exporting Graph Data...

I 23:07:05 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_30-OCTOBER-2010_22-43_PHILIP-R04-00_4x.ibg

I 23:07:05 Export Successfully Completed!

I 23:07:05 Operation Successfully Completed! - Duration: 00:23:56

I 23:07:05 Average Write Rate: 17,556 KB/s (3.9x) - Maximum Write Rate: 18,335 KB/s (4.1x)

I 23:07:05 Cycling Tray before Verify...

W 23:07:13 Waiting for device to become ready...

I 23:07:27 Device Ready!

I 23:07:29 Operation Started!

I 23:07:29 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:07:29 Source Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 4x)

I 23:07:29 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:07:29 Image File Sectors: 12,219,392 (MODE1/2048)

I 23:07:29 Image File Size: 25,025,314,816 bytes

I 23:07:29 Image File Volume Identifier: DISCOVERY_IMAGE

I 23:07:29 Image File File System(s): None

I 23:07:29 Read Speed (Data/Audio): MAX / MAX

I 23:07:29 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:07:29 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:23:55 Exporting Graph Data...

I 23:23:55 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_30-OCTOBER-2010_22-43_PHILIP-R04-00_4x.ibg

I 23:23:55 Export Successfully Completed!

I 23:23:55 Operation Successfully Completed! - Duration: 00:16:25

I 23:23:55 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 35,627 KB/s (7.9x)






Scans:










Share this post


Link to post
Share on other sites

RiDisc 4x BD-R [CMCMAG-BA3-00] @ 4x



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: CMCMAG-BA3-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 17:44:47 ImgBurn Version 2.5.3.0 started!

I 17:44:47 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 17:44:47 Total Physical Memory: 3,143,248 KB - Available: 991,884 KB

I 17:44:47 Initialising SPTI...

I 17:44:47 Searching for SCSI / ATAPI devices...

I 17:44:47 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 17:44:47 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 17:44:47 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 17:44:48 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 17:44:48 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 17:44:48 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 17:44:48 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 17:44:48 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 17:44:48 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 17:44:48 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 17:44:48 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 17:44:48 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 17:44:48 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 17:44:58 Operation Started!

I 17:44:58 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 17:44:58 Source File Sectors: 12,219,392 (MODE1/2048)

I 17:44:58 Source File Size: 25,025,314,816 bytes

I 17:44:58 Source File Volume Identifier: DISCOVERY_IMAGE

I 17:44:58 Source File File System(s): None

I 17:44:58 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 17:44:58 Destination Media Type: BD-R (Disc ID: CMCMAG-BA3-00) (Speeds: 4x)

I 17:44:58 Destination Media Sectors: 12,219,392

I 17:44:58 Write Mode: BD

I 17:44:58 Write Type: DAO

I 17:44:58 Write Speed: 4x

I 17:44:58 BD-R Verify Not Required: Yes

I 17:44:58 Link Size: Auto

I 17:44:58 Lock Volume: Yes

I 17:44:58 Test Mode: No

I 17:44:58 OPC: No

I 17:44:58 BURN-Proof: Enabled

I 17:44:59 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 17:44:59 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 17:44:59 Filling Buffer... (40 MB)

I 17:44:59 Writing LeadIn...

I 17:45:29 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 17:45:29 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 18:08:41 Synchronising Cache...

I 18:08:45 Closing Track...

I 18:08:46 Finalising Disc...

I 18:08:56 Exporting Graph Data...

I 18:08:56 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_02-NOVEMBER-2010_17-44_CMCMAG-BA3-00_4x.ibg

I 18:08:56 Export Successfully Completed!

I 18:08:56 Operation Successfully Completed! - Duration: 00:23:58

I 18:08:56 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,173 KB/s (4.0x)

I 18:08:56 Cycling Tray before Verify...

W 18:09:03 Waiting for device to become ready...

I 18:09:17 Device Ready!

I 18:09:20 Operation Started!

I 18:09:20 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 18:09:20 Source Media Type: BD-R (Disc ID: CMCMAG-BA3-00) (Speeds: 4x)

I 18:09:20 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 18:09:20 Image File Sectors: 12,219,392 (MODE1/2048)

I 18:09:20 Image File Size: 25,025,314,816 bytes

I 18:09:20 Image File Volume Identifier: DISCOVERY_IMAGE

I 18:09:20 Image File File System(s): None

I 18:09:20 Read Speed (Data/Audio): MAX / MAX

I 18:09:20 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 18:09:20 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 18:25:24 Exporting Graph Data...

I 18:25:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_02-NOVEMBER-2010_17-44_CMCMAG-BA3-00_4x.ibg

I 18:25:24 Export Successfully Completed!

I 18:25:24 Operation Successfully Completed! - Duration: 00:16:04

I 18:25:24 Average Verify Rate: 25,377 KB/s (5.6x) - Maximum Verify Rate: 36,764 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Sumvision 4x BD-R [RITEK-BR2-00] @ 4x



Sumvision - Made in Taiwan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: RITEK-BR2-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 17,980 KB/s (4x)



Results:

I 10:47:50 ImgBurn Version 2.5.3.0 started!

I 10:47:50 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 10:47:50 Total Physical Memory: 3,143,248 KB - Available: 1,039,388 KB

I 10:47:50 Initialising SPTI...

I 10:47:50 Searching for SCSI / ATAPI devices...

I 10:47:51 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 10:47:51 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 10:47:51 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 10:47:51 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 10:47:51 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 10:47:51 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:47:51 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 10:47:51 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 10:47:51 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 10:47:51 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 10:47:51 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 10:47:52 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 10:47:52 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 10:48:00 Operation Started!

I 10:48:00 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 10:48:00 Source File Sectors: 12,219,392 (MODE1/2048)

I 10:48:00 Source File Size: 25,025,314,816 bytes

I 10:48:00 Source File Volume Identifier: DISCOVERY_IMAGE

I 10:48:00 Source File File System(s): None

I 10:48:00 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:48:00 Destination Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 4x)

I 10:48:00 Destination Media Sectors: 12,219,392

I 10:48:00 Write Mode: BD

I 10:48:00 Write Type: DAO

I 10:48:00 Write Speed: 4x

I 10:48:00 BD-R Verify Not Required: Yes

I 10:48:00 Link Size: Auto

I 10:48:00 Lock Volume: Yes

I 10:48:00 Test Mode: No

I 10:48:00 OPC: No

I 10:48:00 BURN-Proof: Enabled

I 10:48:02 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 10:48:02 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 10:48:02 Filling Buffer... (40 MB)

I 10:48:02 Writing LeadIn...

I 10:48:31 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 10:48:31 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 11:11:43 Synchronising Cache...

I 11:11:47 Closing Track...

I 11:11:48 Finalising Disc...

I 11:11:59 Exporting Graph Data...

I 11:11:59 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_03-NOVEMBER-2010_10-48_RITEK-BR2-00_4x.ibg

I 11:11:59 Export Successfully Completed!

I 11:11:59 Operation Successfully Completed! - Duration: 00:23:58

I 11:11:59 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,511 KB/s (4.1x)

I 11:11:59 Cycling Tray before Verify...

W 11:12:06 Waiting for device to become ready...

I 11:12:21 Device Ready!

I 11:12:24 Operation Started!

I 11:12:24 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 11:12:24 Source Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 4x)

I 11:12:24 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 11:12:24 Image File Sectors: 12,219,392 (MODE1/2048)

I 11:12:24 Image File Size: 25,025,314,816 bytes

I 11:12:24 Image File Volume Identifier: DISCOVERY_IMAGE

I 11:12:24 Image File File System(s): None

I 11:12:24 Read Speed (Data/Audio): MAX / MAX

I 11:12:24 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 11:12:24 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 11:28:30 Exporting Graph Data...

I 11:28:30 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_03-NOVEMBER-2010_10-48_RITEK-BR2-00_4x.ibg

I 11:28:30 Export Successfully Completed!

I 11:28:30 Operation Successfully Completed! - Duration: 00:16:06

I 11:28:30 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,714 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 4x LTH BD-R [VERBAT-IMv-00] @ 4x



Verbatim - Part Number: VLR130YP20SV1 - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: VERBAT-IMv-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Negative

Recorded Mark Polarity: LTH

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)



Results:

I 19:22:16 ImgBurn Version 2.5.3.0 started!

I 19:22:16 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 19:22:16 Total Physical Memory: 3,143,248 KB - Available: 1,168,072 KB

I 19:22:16 Initialising SPTI...

I 19:22:16 Searching for SCSI / ATAPI devices...

I 19:22:17 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 19:22:17 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 19:22:17 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 19:22:17 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 19:22:17 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 19:22:17 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:22:17 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 19:22:17 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 19:22:17 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 19:22:17 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 19:22:17 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 19:22:18 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 19:22:18 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 19:22:22 Operation Started!

I 19:22:22 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 19:22:22 Source File Sectors: 12,219,392 (MODE1/2048)

I 19:22:22 Source File Size: 25,025,314,816 bytes

I 19:22:22 Source File Volume Identifier: DISCOVERY_IMAGE

I 19:22:22 Source File File System(s): None

I 19:22:22 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:22:22 Destination Media Type: BD-R (Disc ID: VERBAT-IMv-00) (Speeds: 4x)

I 19:22:22 Destination Media Sectors: 12,219,392

I 19:22:22 Write Mode: BD

I 19:22:22 Write Type: DAO

I 19:22:22 Write Speed: 4x

I 19:22:22 BD-R Verify Not Required: Yes

I 19:22:22 Link Size: Auto

I 19:22:22 Lock Volume: Yes

I 19:22:22 Test Mode: No

I 19:22:22 OPC: No

I 19:22:22 BURN-Proof: Enabled

I 19:22:23 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 19:22:23 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 19:22:24 Filling Buffer... (40 MB)

I 19:22:24 Writing LeadIn...

I 19:22:53 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 19:22:53 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 19:46:05 Synchronising Cache...

I 19:46:09 Closing Track...

I 19:46:10 Finalising Disc...

I 19:46:21 Exporting Graph Data...

I 19:46:21 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_03-NOVEMBER-2010_19-22_VERBAT-IMv-00_4x.ibg

I 19:46:21 Export Successfully Completed!

I 19:46:21 Operation Successfully Completed! - Duration: 00:23:58

I 19:46:21 Average Write Rate: 17,556 KB/s (3.9x) - Maximum Write Rate: 18,308 KB/s (4.1x)

I 19:46:21 Cycling Tray before Verify...

W 19:46:28 Waiting for device to become ready...

I 19:46:42 Device Ready!

I 19:46:45 Operation Started!

I 19:46:45 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:46:45 Source Media Type: BD-R (Disc ID: VERBAT-IMv-00) (Speeds: 4x)

I 19:46:45 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 19:46:45 Image File Sectors: 12,219,392 (MODE1/2048)

I 19:46:45 Image File Size: 25,025,314,816 bytes

I 19:46:45 Image File Volume Identifier: DISCOVERY_IMAGE

I 19:46:45 Image File File System(s): None

I 19:46:45 Read Speed (Data/Audio): MAX / MAX

I 19:46:45 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 19:46:45 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:08:03 Exporting Graph Data...

I 20:08:03 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_03-NOVEMBER-2010_19-22_VERBAT-IMv-00_4x.ibg

I 20:08:03 Export Successfully Completed!

I 20:08:03 Operation Successfully Completed! - Duration: 00:21:18

I 20:08:03 Average Verify Rate: 19,137 KB/s (4.3x) - Maximum Verify Rate: 27,735 KB/s (6.2x)






Scans:









I was unable to scan with the 'TSSTcorp DVDWBD SH-B123L SB02' drive because it failed to initialise the disc.

Share this post


Link to post
Share on other sites

Victor JVC 4x LTH BD-R [TYG-BD-Y03-01] @ 4x



Victor JVC - Part Number: BV-R130FS20



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 4x



BD Disc Information:

Disc ID: TYG-BD-Y03-01

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Negative

Recorded Mark Polarity: LTH

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 17,980 KB/s (4x)



Results:

I 19:46:37 ImgBurn Version 2.5.3.0 started!

I 19:46:37 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 19:46:37 Total Physical Memory: 3,143,248 KB - Available: 1,323,456 KB

I 19:46:37 Initialising SPTI...

I 19:46:37 Searching for SCSI / ATAPI devices...

I 19:46:43 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 19:46:43 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 19:46:43 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 19:46:43 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 19:46:43 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 19:46:44 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:46:44 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 19:46:44 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 19:46:44 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 19:46:44 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 19:46:44 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 19:46:44 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 19:46:44 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 19:47:13 Operation Started!

I 19:47:13 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 19:47:13 Source File Sectors: 12,219,392 (MODE1/2048)

I 19:47:13 Source File Size: 25,025,314,816 bytes

I 19:47:13 Source File Volume Identifier: DISCOVERY_IMAGE

I 19:47:13 Source File File System(s): None

I 19:47:13 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:47:13 Destination Media Type: BD-R (Disc ID: TYG-BD-Y03-01) (Speeds: 4x)

I 19:47:13 Destination Media Sectors: 12,219,392

I 19:47:13 Write Mode: BD

I 19:47:13 Write Type: DAO

I 19:47:13 Write Speed: 4x

I 19:47:13 BD-R Verify Not Required: Yes

I 19:47:13 Link Size: Auto

I 19:47:13 Lock Volume: Yes

I 19:47:13 Test Mode: No

I 19:47:13 OPC: No

I 19:47:13 BURN-Proof: Enabled

I 19:47:14 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 19:47:14 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 19:47:15 Filling Buffer... (40 MB)

I 19:47:15 Writing LeadIn...

I 19:47:44 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 19:47:44 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:10:56 Synchronising Cache...

I 20:11:00 Closing Track...

I 20:11:01 Finalising Disc...

I 20:11:11 Exporting Graph Data...

I 20:11:11 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_05-NOVEMBER-2010_19-47_TYG-BD-Y03-01_4x.ibg

I 20:11:11 Export Successfully Completed!

I 20:11:11 Operation Successfully Completed! - Duration: 00:23:57

I 20:11:11 Average Write Rate: 17,569 KB/s (3.9x) - Maximum Write Rate: 18,155 KB/s (4.0x)

I 20:11:11 Cycling Tray before Verify...

W 20:11:18 Waiting for device to become ready...

I 20:11:31 Device Ready!

I 20:11:34 Operation Started!

I 20:11:34 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:11:34 Source Media Type: BD-R (Disc ID: TYG-BD-Y03-01) (Speeds: 4x)

I 20:11:34 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:11:34 Image File Sectors: 12,219,392 (MODE1/2048)

I 20:11:34 Image File Size: 25,025,314,816 bytes

I 20:11:34 Image File Volume Identifier: DISCOVERY_IMAGE

I 20:11:34 Image File File System(s): None

I 20:11:34 Read Speed (Data/Audio): MAX / MAX

I 20:11:34 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:11:34 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:32:50 Exporting Graph Data...

I 20:32:50 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_05-NOVEMBER-2010_19-47_TYG-BD-Y03-01_4x.ibg

I 20:32:50 Export Successfully Completed!

I 20:32:50 Operation Successfully Completed! - Duration: 00:21:16

I 20:32:50 Average Verify Rate: 19,152 KB/s (4.3x) - Maximum Verify Rate: 27,767 KB/s (6.2x)






Scans:









I was unable to scan with the 'TSSTcorp DVDWBD SH-B123L SB02' drive because it failed to initialise the disc.

Share this post


Link to post
Share on other sites

Maxell 2x BD-RE [RITEK-BW1-01] @ 2x



Maxell - Item Number: 58704100 - BDRE25.MEL.1P - Made in Taiwan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: RITEK-BW1-01

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Full Erase:

I 21:43:19 ImgBurn Version 2.5.3.0 started!

I 21:43:19 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:43:19 Total Physical Memory: 3,143,248 KB - Available: 1,205,512 KB

I 21:43:19 Initialising SPTI...

I 21:43:19 Searching for SCSI / ATAPI devices...

I 21:43:20 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:43:20 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:43:20 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 21:43:20 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:43:20 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:43:21 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:43:21 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:43:21 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:43:21 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:43:21 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:43:21 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:43:22 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:43:22 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:43:41 Operation Started!

I 21:43:41 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:43:41 Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 21:43:41 Quick Erase: No

I 21:43:41 Format Properly: Yes

I 21:43:41 Format Size: Preferred

I 21:43:41 Format With Full Certification: Yes

I 21:43:41 Format Without Spare Areas: Yes

I 21:43:41 Erasing Disc...

I 21:43:52 Operation Successfully Completed! - Duration: 00:00:11

I 21:43:52 Operation Started!

I 21:43:52 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:43:52 Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 21:43:52 Media Sectors: 12,219,392

I 21:43:52 BD-RE FastWrite: No

I 21:43:52 Zeroing Sectors...

I 22:30:00 Synchronising Cache...

I 22:30:00 Operation Successfully Completed! - Duration: 00:46:08 - Total Duration: 00:46:19

I 22:30:00 Average Write Rate: 8,829 KB/s (2.0x)



Results:

I 23:37:20 ImgBurn Version 2.5.3.0 started!

I 23:37:20 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 23:37:20 Total Physical Memory: 3,143,248 KB - Available: 1,044,632 KB

I 23:37:20 Initialising SPTI...

I 23:37:20 Searching for SCSI / ATAPI devices...

I 23:37:25 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 23:37:25 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 23:37:25 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 23:37:25 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 23:37:25 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 23:37:25 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:37:26 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 23:37:26 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 23:37:26 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 23:37:26 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 23:37:26 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:37:26 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 23:37:26 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 23:37:38 Operation Started!

I 23:37:38 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:37:38 Source File Sectors: 12,219,392 (MODE1/2048)

I 23:37:38 Source File Size: 25,025,314,816 bytes

I 23:37:38 Source File Volume Identifier: DISCOVERY_IMAGE

I 23:37:38 Source File File System(s): None

I 23:37:38 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:37:38 Destination Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 23:37:38 Destination Media Sectors: 12,219,392

I 23:37:38 Write Mode: BD

I 23:37:38 Write Type: DAO

I 23:37:38 Write Speed: 2x

I 23:37:38 BD-RE FastWrite: No

I 23:37:38 Link Size: Auto

I 23:37:38 Lock Volume: Yes

I 23:37:38 Test Mode: No

I 23:37:38 OPC: No

I 23:37:38 BURN-Proof: Enabled

I 23:37:38 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 23:37:38 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 23:37:38 Filling Buffer... (40 MB)

I 23:37:38 Writing LeadIn...

I 23:37:41 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:37:41 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:23:48 Synchronising Cache...

I 00:23:49 Exporting Graph Data...

I 00:23:49 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_04-NOVEMBER-2010_23-37_RITEK-BW1-01_2x.ibg

I 00:23:49 Export Successfully Completed!

I 00:23:49 Operation Successfully Completed! - Duration: 00:46:11

I 00:23:49 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,094 KB/s (2.0x)

I 00:23:49 Cycling Tray before Verify...

W 00:23:56 Waiting for device to become ready...

I 00:24:11 Device Ready!

I 00:24:14 Operation Started!

I 00:24:14 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 00:24:14 Source Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 00:24:14 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 00:24:14 Image File Sectors: 12,219,392 (MODE1/2048)

I 00:24:14 Image File Size: 25,025,314,816 bytes

I 00:24:14 Image File Volume Identifier: DISCOVERY_IMAGE

I 00:24:14 Image File File System(s): None

I 00:24:14 Read Speed (Data/Audio): MAX / MAX

I 00:24:14 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 00:24:14 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:40:20 Exporting Graph Data...

I 00:40:20 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_04-NOVEMBER-2010_23-37_RITEK-BW1-01_2x.ibg

I 00:40:20 Export Successfully Completed!

I 00:40:20 Operation Successfully Completed! - Duration: 00:16:06

I 00:40:20 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,746 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Panasonic 2x BD-RE [MEI-T01-01] @ 2x



Panasonic - Part Number: LM-BEU25AE - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Complete

State of Last Session: Complete

Erasable: Yes

Sessions: 1

Sectors: 11,826,176

Size: 24,220,008,448 bytes

Time: 2628:04:26 (MM:SS:FF)

Supported Write Speeds: 2x



TOC Information:

Session 1... (LBA: 0)

-> Track 01 (Mode 1, LBA: 0 - 11826175)

-> LeadOut (LBA: 11826176)



BD Disc Information:

Disc ID: MEI-T01-01

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Disc Time Stamp: 12/2005

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x02 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 11826175 (0x00B473FF)

-> RS: 26,970 KB/s (6x) - WS: 8,990 KB/s (2x)



Full Erase:

I 17:06:47 ImgBurn Version 2.5.3.0 started!

I 17:06:47 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 17:06:47 Total Physical Memory: 3,143,248 KB - Available: 968,956 KB

I 17:06:47 Initialising SPTI...

I 17:06:47 Searching for SCSI / ATAPI devices...

I 17:06:47 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 17:06:47 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 17:06:47 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (H:) (ATA)

I 17:06:48 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 17:06:48 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 17:06:48 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 17:06:48 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 17:06:48 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 17:06:48 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 17:06:48 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 17:06:48 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 17:06:48 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 17:06:48 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 17:07:01 Operation Started!

I 17:07:01 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 17:07:01 Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 17:07:01 Quick Erase: No

I 17:07:01 Format Properly: Yes

I 17:07:01 Format Size: Preferred

I 17:07:01 Format With Full Certification: Yes

I 17:07:01 Format Without Spare Areas: Yes

I 17:07:01 Erasing Disc...

I 17:07:17 Operation Successfully Completed! - Duration: 00:00:15

I 17:07:17 Operation Started!

I 17:07:17 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 17:07:17 Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 17:07:17 Media Sectors: 12,219,392

I 17:07:17 BD-RE FastWrite: No

I 17:07:17 Zeroing Sectors...

I 17:53:25 Synchronising Cache...

I 17:53:26 Operation Successfully Completed! - Duration: 00:46:08 - Total Duration: 00:46:24

I 17:53:26 Average Write Rate: 8,829 KB/s (2.0x)



Results:

I 18:21:05 ImgBurn Version 2.5.3.0 started!

I 18:21:05 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 18:21:05 Total Physical Memory: 3,143,248 KB - Available: 944,728 KB

I 18:21:05 Initialising SPTI...

I 18:21:05 Searching for SCSI / ATAPI devices...

I 18:21:05 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 18:21:06 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 18:21:06 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (H:) (ATA)

I 18:21:06 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 18:21:06 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 18:21:06 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 18:21:06 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 18:21:06 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 18:21:06 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 18:21:06 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 18:21:06 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 18:21:06 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 18:21:06 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 18:21:48 Operation Started!

I 18:21:48 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 18:21:48 Source File Sectors: 12,219,392 (MODE1/2048)

I 18:21:48 Source File Size: 25,025,314,816 bytes

I 18:21:48 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 18:21:48 Source File File System(s): None

I 18:21:48 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 18:21:48 Destination Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 18:21:48 Destination Media Sectors: 12,219,392

I 18:21:48 Write Mode: BD

I 18:21:48 Write Type: DAO

I 18:21:48 Write Speed: 2x

I 18:21:48 BD-RE FastWrite: No

I 18:21:48 Link Size: Auto

I 18:21:48 Lock Volume: Yes

I 18:21:48 Test Mode: No

I 18:21:48 OPC: No

I 18:21:48 BURN-Proof: Enabled

I 18:21:48 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 18:21:48 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 18:21:48 Filling Buffer... (40 MB)

I 18:21:48 Writing LeadIn...

I 18:21:51 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 18:21:51 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 19:07:58 Synchronising Cache...

I 19:07:59 Exporting Graph Data...

I 19:07:59 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_08-NOVEMBER-2010_18-21_MEI-T01-01_2x.ibg

I 19:07:59 Export Successfully Completed!

I 19:07:59 Operation Successfully Completed! - Duration: 00:46:11

I 19:07:59 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,098 KB/s (2.0x)

I 19:07:59 Cycling Tray before Verify...

W 19:08:06 Waiting for device to become ready...

I 19:08:21 Device Ready!

I 19:08:23 Operation Started!

I 19:08:23 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:08:23 Source Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 19:08:24 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 19:08:24 Image File Sectors: 12,219,392 (MODE1/2048)

I 19:08:24 Image File Size: 25,025,314,816 bytes

I 19:08:24 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 19:08:24 Image File File System(s): None

I 19:08:24 Read Speed (Data/Audio): MAX / MAX

I 19:08:24 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 19:08:24 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 19:24:36 Exporting Graph Data...

I 19:24:36 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_08-NOVEMBER-2010_18-21_MEI-T01-01_2x.ibg

I 19:24:36 Export Successfully Completed!

I 19:24:36 Operation Successfully Completed! - Duration: 00:16:12

I 19:24:36 Average Verify Rate: 25,142 KB/s (5.6x) - Maximum Verify Rate: 36,683 KB/s (8.2x)






Scans:







Share this post


Link to post
Share on other sites

Sony 2x BD-RE [sONY-ES1-02] @ 2x



Sony - Part Number: BNE25BS2 - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: SONY-ES1-02

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Full Erase:

I 14:13:09 ImgBurn Version 2.5.3.0 started!

I 14:13:09 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 14:13:09 Total Physical Memory: 3,143,248 KB - Available: 869,200 KB

I 14:13:09 Initialising SPTI...

I 14:13:09 Searching for SCSI / ATAPI devices...

I 14:13:09 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 14:13:09 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 14:13:09 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 14:13:09 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 14:13:09 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 14:13:10 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:13:10 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 14:13:10 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 14:13:10 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 14:13:10 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 14:13:10 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:13:10 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 14:13:10 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 14:14:02 Operation Started!

I 14:14:02 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:14:02 Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 14:14:02 Quick Erase: No

I 14:14:02 Format Properly: Yes

I 14:14:02 Format Size: Preferred

I 14:14:02 Format With Full Certification: Yes

I 14:14:02 Format Without Spare Areas: Yes

I 14:14:02 Erasing Disc...

I 14:14:15 Operation Successfully Completed! - Duration: 00:00:13

I 14:14:15 Operation Started!

I 14:14:15 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:14:15 Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 14:14:15 Media Sectors: 12,219,392

I 14:14:15 BD-RE FastWrite: No

I 14:14:15 Zeroing Sectors...

I 15:00:27 Synchronising Cache...

I 15:00:28 Operation Successfully Completed! - Duration: 00:46:12 - Total Duration: 00:46:25

I 15:00:28 Average Write Rate: 8,816 KB/s (2.0x)



Results:

I 15:23:20 ImgBurn Version 2.5.3.0 started!

I 15:23:20 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 15:23:20 Total Physical Memory: 3,143,248 KB - Available: 836,624 KB

I 15:23:20 Initialising SPTI...

I 15:23:20 Searching for SCSI / ATAPI devices...

I 15:23:20 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 15:23:20 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 15:23:20 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 15:23:21 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 15:23:21 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 15:23:21 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:23:21 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 15:23:21 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 15:23:21 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 15:23:21 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 15:23:21 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:23:21 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 15:23:21 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 15:24:07 Operation Started!

I 15:24:07 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 15:24:07 Source File Sectors: 12,219,392 (MODE1/2048)

I 15:24:07 Source File Size: 25,025,314,816 bytes

I 15:24:07 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 15:24:07 Source File Volume Set Identifier: 12219392_SECTORS

I 15:24:07 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 15:24:07 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 15:24:07 Source File File System(s): ISO9660

I 15:24:07 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:24:07 Destination Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 15:24:07 Destination Media Sectors: 12,219,392

I 15:24:07 Write Mode: BD

I 15:24:07 Write Type: DAO

I 15:24:07 Write Speed: 2x

I 15:24:07 BD-RE FastWrite: No

I 15:24:07 Link Size: Auto

I 15:24:07 Lock Volume: Yes

I 15:24:07 Test Mode: No

I 15:24:07 OPC: No

I 15:24:07 BURN-Proof: Enabled

I 15:24:07 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 15:24:07 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 15:24:07 Filling Buffer... (40 MB)

I 15:24:07 Writing LeadIn...

I 15:24:10 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 15:24:10 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 16:10:17 Synchronising Cache...

I 16:10:18 Exporting Graph Data...

I 16:10:18 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_11-NOVEMBER-2010_15-24_SONY-ES1-02_2x.ibg

I 16:10:18 Export Successfully Completed!

I 16:10:18 Operation Successfully Completed! - Duration: 00:46:11

I 16:10:18 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,094 KB/s (2.0x)

I 16:10:18 Cycling Tray before Verify...

W 16:10:25 Waiting for device to become ready...

I 16:10:40 Device Ready!

I 16:10:43 Operation Started!

I 16:10:43 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 16:10:43 Source Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 16:10:43 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 16:10:43 Image File Sectors: 12,219,392 (MODE1/2048)

I 16:10:43 Image File Size: 25,025,314,816 bytes

I 16:10:43 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 16:10:43 Image File Volume Set Identifier: 12219392_SECTORS

I 16:10:43 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 16:10:43 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 16:10:43 Image File File System(s): ISO9660

I 16:10:43 Read Speed (Data/Audio): MAX / MAX

I 16:10:43 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 16:10:43 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 16:26:49 Exporting Graph Data...

I 16:26:49 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_11-NOVEMBER-2010_15-24_SONY-ES1-02_2x.ibg

I 16:26:49 Export Successfully Completed!

I 16:26:49 Operation Successfully Completed! - Duration: 00:16:06

I 16:26:49 Average Verify Rate: 25,325 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

TDK 2x BD-RE [TDKBLD-WBA-00] @ 2x



TDK - Part Number: BD-RE25JC2XE - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: TDKBLD-WBA-00

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Full Erase:

I 21:59:32 ImgBurn Version 2.5.3.0 started!

I 21:59:32 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:59:32 Total Physical Memory: 3,143,248 KB - Available: 1,036,440 KB

I 21:59:32 Initialising SPTI...

I 21:59:32 Searching for SCSI / ATAPI devices...

I 21:59:32 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 21:59:32 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:59:32 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:59:32 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 21:59:32 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:59:32 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:59:33 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:59:33 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:59:33 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:59:33 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:59:33 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:59:33 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:59:33 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:59:39 Operation Started!

I 21:59:39 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:59:39 Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 21:59:39 Quick Erase: No

I 21:59:39 Format Properly: Yes

I 21:59:39 Format Size: Preferred

I 21:59:39 Format With Full Certification: Yes

I 21:59:39 Format Without Spare Areas: Yes

I 21:59:39 Erasing Disc...

I 22:00:03 Operation Successfully Completed! - Duration: 00:00:24

I 22:00:03 Operation Started!

I 22:00:03 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:00:03 Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 22:00:03 Media Sectors: 12,219,392

I 22:00:03 BD-RE FastWrite: No

I 22:00:03 Zeroing Sectors...

I 22:46:11 Synchronising Cache...

I 22:46:12 Operation Successfully Completed! - Duration: 00:46:08 - Total Duration: 00:46:33

I 22:46:12 Average Write Rate: 8,829 KB/s (2.0x)



Results:

I 23:29:25 ImgBurn Version 2.5.3.0 started!

I 23:29:25 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 23:29:25 Total Physical Memory: 3,143,248 KB - Available: 1,200,528 KB

I 23:29:25 Initialising SPTI...

I 23:29:25 Searching for SCSI / ATAPI devices...

I 23:29:25 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 23:29:25 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 23:29:25 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 23:29:25 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 23:29:26 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 23:29:26 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 23:29:26 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:29:26 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 23:29:26 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 23:29:26 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 23:29:26 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:29:26 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 23:29:26 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 23:29:36 Operation Started!

I 23:29:36 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:29:36 Source File Sectors: 12,219,392 (MODE1/2048)

I 23:29:36 Source File Size: 25,025,314,816 bytes

I 23:29:36 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 23:29:36 Source File Volume Set Identifier: 12219392_SECTORS

I 23:29:36 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 23:29:36 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 23:29:36 Source File File System(s): ISO9660

I 23:29:36 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:29:36 Destination Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 23:29:36 Destination Media Sectors: 12,219,392

I 23:29:36 Write Mode: BD

I 23:29:36 Write Type: DAO

I 23:29:36 Write Speed: 2x

I 23:29:36 BD-RE FastWrite: No

I 23:29:36 Link Size: Auto

I 23:29:36 Lock Volume: Yes

I 23:29:36 Test Mode: No

I 23:29:36 OPC: No

I 23:29:36 BURN-Proof: Enabled

I 23:29:36 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 23:29:36 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 23:29:36 Filling Buffer... (40 MB)

I 23:29:36 Writing LeadIn...

I 23:29:39 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:29:39 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:15:46 Synchronising Cache...

I 00:15:47 Exporting Graph Data...

I 00:15:47 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_12-NOVEMBER-2010_23-29_TDKBLD-WBA-000_2x.ibg

I 00:15:47 Export Successfully Completed!

I 00:15:47 Operation Successfully Completed! - Duration: 00:46:11

I 00:15:47 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,094 KB/s (2.0x)

I 00:15:47 Cycling Tray before Verify...

W 00:15:54 Waiting for device to become ready...

I 00:16:09 Device Ready!

I 00:16:12 Operation Started!

I 00:16:12 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 00:16:12 Source Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 00:16:12 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 00:16:12 Image File Sectors: 12,219,392 (MODE1/2048)

I 00:16:12 Image File Size: 25,025,314,816 bytes

I 00:16:12 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 00:16:12 Image File Volume Set Identifier: 12219392_SECTORS

I 00:16:12 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 00:16:12 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 00:16:12 Image File File System(s): ISO9660

I 00:16:12 Read Speed (Data/Audio): MAX / MAX

I 00:16:12 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 00:16:12 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:32:19 Exporting Graph Data...

I 00:32:19 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_12-NOVEMBER-2010_23-29_TDKBLD-WBA-000_2x.ibg

I 00:32:19 Export Successfully Completed!

I 00:32:19 Operation Successfully Completed! - Duration: 00:16:06

I 00:32:19 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 2x BD-RE [VERBAT-IM0-000] @ 2x



Verbatim - Part Number: 43614 - 0903-02 - Made in Taiwan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: VERBAT-IM0-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Full Erase:

I 23:54:25 ImgBurn Version 2.5.3.0 started!

I 23:54:25 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 23:54:25 Total Physical Memory: 3,143,248 KB - Available: 1,049,924 KB

I 23:54:25 Initialising SPTI...

I 23:54:25 Searching for SCSI / ATAPI devices...

I 23:54:25 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 23:54:26 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 23:54:26 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 23:54:26 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 23:54:26 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 23:54:26 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 23:54:26 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:54:26 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 23:54:26 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 23:54:26 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 23:54:26 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:54:26 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 23:54:26 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 23:54:57 Operation Started!

I 23:54:57 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:54:57 Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 23:54:57 Quick Erase: No

I 23:54:57 Format Properly: Yes

I 23:54:57 Format Size: Preferred

I 23:54:57 Format With Full Certification: Yes

I 23:54:57 Format Without Spare Areas: Yes

I 23:54:57 Erasing Disc...

I 23:55:12 Operation Successfully Completed! - Duration: 00:00:15

I 23:55:12 Operation Started!

I 23:55:12 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:55:12 Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 23:55:12 Media Sectors: 12,219,392

I 23:55:12 BD-RE FastWrite: No

I 23:55:12 Zeroing Sectors...

I 00:41:20 Synchronising Cache...

I 00:41:21 Operation Successfully Completed! - Duration: 00:46:09 - Total Duration: 00:46:24

I 00:41:21 Average Write Rate: 8,825 KB/s (2.0x)



Results:

I 10:51:18 ImgBurn Version 2.5.3.0 started!

I 10:51:18 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 10:51:18 Total Physical Memory: 3,143,248 KB - Available: 1,162,944 KB

I 10:51:18 Initialising SPTI...

I 10:51:18 Searching for SCSI / ATAPI devices...

I 10:51:18 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 10:51:18 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 10:51:18 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 10:51:19 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 10:51:19 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 10:51:19 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 10:51:19 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:51:19 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 10:51:19 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 10:51:19 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 10:51:19 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 10:51:19 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 10:51:19 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 10:51:50 Operation Started!

I 10:51:50 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 10:51:50 Source File Sectors: 12,219,392 (MODE1/2048)

I 10:51:50 Source File Size: 25,025,314,816 bytes

I 10:51:50 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 10:51:50 Source File Volume Set Identifier: 12219392_SECTORS

I 10:51:50 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 10:51:50 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 10:51:50 Source File File System(s): ISO9660

I 10:51:50 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:51:50 Destination Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 10:51:50 Destination Media Sectors: 12,219,392

I 10:51:50 Write Mode: BD

I 10:51:50 Write Type: DAO

I 10:51:50 Write Speed: 2x

I 10:51:50 BD-RE FastWrite: No

I 10:51:50 Link Size: Auto

I 10:51:50 Lock Volume: Yes

I 10:51:50 Test Mode: No

I 10:51:50 OPC: No

I 10:51:50 BURN-Proof: Enabled

I 10:51:50 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 10:51:50 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 10:51:50 Filling Buffer... (40 MB)

I 10:51:50 Writing LeadIn...

I 10:51:52 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 10:51:52 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 11:37:59 Synchronising Cache...

I 11:38:00 Exporting Graph Data...

I 11:38:00 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_15-NOVEMBER-2010_10-51_VERBAT-IM0-000_2x.ibg

I 11:38:00 Export Successfully Completed!

I 11:38:00 Operation Successfully Completed! - Duration: 00:46:10

I 11:38:00 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,107 KB/s (2.0x)

I 11:38:00 Cycling Tray before Verify...

W 11:38:08 Waiting for device to become ready...

I 11:38:23 Device Ready!

I 11:38:26 Operation Started!

I 11:38:26 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 11:38:26 Source Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 11:38:26 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 11:38:26 Image File Sectors: 12,219,392 (MODE1/2048)

I 11:38:26 Image File Size: 25,025,314,816 bytes

I 11:38:26 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 11:38:26 Image File Volume Set Identifier: 12219392_SECTORS

I 11:38:26 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 11:38:26 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 11:38:26 Image File File System(s): ISO9660

I 11:38:26 Read Speed (Data/Audio): MAX / MAX

I 11:38:26 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 11:38:26 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 11:54:33 Exporting Graph Data...

I 11:54:33 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_15-NOVEMBER-2010_10-51_VERBAT-IM0-000_2x.ibg

I 11:54:33 Export Successfully Completed!

I 11:54:33 Operation Successfully Completed! - Duration: 00:16:06

I 11:54:33 Average Verify Rate: 25,298 KB/s (5.6x) - Maximum Verify Rate: 36,682 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Victor JVC 2x BD-RE [JVCRE1-101-001] @ 2x



Victor JVC - Part Number: BV-E130JW5 - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: JVCRE1-101-001

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 8,990 KB/s (2x)



Full Erase:

I 10:12:09 ImgBurn Version 2.5.3.0 started!

I 10:12:09 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 10:12:09 Total Physical Memory: 3,143,248 KB - Available: 921,804 KB

I 10:12:09 Initialising SPTI...

I 10:12:09 Searching for SCSI / ATAPI devices...

I 10:12:09 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 10:12:09 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 10:12:09 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 10:12:09 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 10:12:10 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 10:12:10 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 10:12:10 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:12:10 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 10:12:10 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 10:12:10 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 10:12:10 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 10:12:10 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 10:12:10 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 10:12:17 Operation Started!

I 10:12:17 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:12:17 Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 10:12:17 Quick Erase: No

I 10:12:17 Format Properly: Yes

I 10:12:17 Format Size: Preferred

I 10:12:17 Format With Full Certification: Yes

I 10:12:17 Format Without Spare Areas: Yes

I 10:12:17 Erasing Disc...

I 10:12:40 Operation Successfully Completed! - Duration: 00:00:22

I 10:12:40 Operation Started!

I 10:12:40 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:12:40 Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 10:12:40 Media Sectors: 12,219,392

I 10:12:40 BD-RE FastWrite: No

I 10:12:40 Zeroing Sectors...

I 10:58:47 Synchronising Cache...

I 10:58:48 Operation Successfully Completed! - Duration: 00:46:08 - Total Duration: 00:46:30

I 10:58:48 Average Write Rate: 8,829 KB/s (2.0x)



Results:

I 14:39:58 ImgBurn Version 2.5.3.0 started!

I 14:39:58 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 14:39:58 Total Physical Memory: 3,143,248 KB - Available: 1,531,536 KB

I 14:39:58 Initialising SPTI...

I 14:39:58 Searching for SCSI / ATAPI devices...

I 14:39:58 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 14:39:58 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 14:39:58 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 14:39:58 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 14:39:59 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 14:39:59 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 14:39:59 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:39:59 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 14:39:59 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 14:39:59 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 14:39:59 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:39:59 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 14:39:59 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 14:40:11 Operation Started!

I 14:40:11 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 14:40:11 Source File Sectors: 12,219,392 (MODE1/2048)

I 14:40:11 Source File Size: 25,025,314,816 bytes

I 14:40:11 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 14:40:11 Source File Volume Set Identifier: 12219392_SECTORS

I 14:40:11 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 14:40:11 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 14:40:11 Source File File System(s): ISO9660

I 14:40:11 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:40:11 Destination Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 14:40:11 Destination Media Sectors: 12,219,392

I 14:40:11 Write Mode: BD

I 14:40:11 Write Type: DAO

I 14:40:11 Write Speed: 2x

I 14:40:11 BD-RE FastWrite: No

I 14:40:11 Link Size: Auto

I 14:40:11 Lock Volume: Yes

I 14:40:11 Test Mode: No

I 14:40:11 OPC: No

I 14:40:11 BURN-Proof: Enabled

I 14:40:11 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 14:40:11 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 14:40:11 Filling Buffer... (40 MB)

I 14:40:11 Writing LeadIn...

I 14:40:13 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 14:40:13 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 15:26:23 Synchronising Cache...

I 15:26:24 Exporting Graph Data...

I 15:26:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_16-NOVEMBER-2010_14-40_JVCRE1-101-001_2x.ibg

I 15:26:24 Export Successfully Completed!

I 15:26:24 Operation Successfully Completed! - Duration: 00:46:13

I 15:26:24 Average Write Rate: 8,822 KB/s (2.0x) - Maximum Write Rate: 10,998 KB/s (2.4x)

I 15:26:24 Cycling Tray before Verify...

W 15:26:32 Waiting for device to become ready...

I 15:26:47 Device Ready!

I 15:26:50 Operation Started!

I 15:26:50 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:26:50 Source Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 15:26:50 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 15:26:50 Image File Sectors: 12,219,392 (MODE1/2048)

I 15:26:50 Image File Size: 25,025,314,816 bytes

I 15:26:50 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 15:26:50 Image File Volume Set Identifier: 12219392_SECTORS

I 15:26:50 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 15:26:50 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 15:26:50 Image File File System(s): ISO9660

I 15:26:50 Read Speed (Data/Audio): MAX / MAX

I 15:26:50 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 15:26:50 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 15:42:56 Exporting Graph Data...

I 15:42:56 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_16-NOVEMBER-2010_14-40_JVCRE1-101-001_2x.ibg

I 15:42:56 Export Successfully Completed!

I 15:42:56 Operation Successfully Completed! - Duration: 00:16:05

I 15:42:56 Average Verify Rate: 25,325 KB/s (5.6x) - Maximum Verify Rate: 36,746 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Traxdata 2x BD-RE [RITEK-BW1-001] @ 2x



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: RITEK-BW1-001

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Full Erase:

I 10:47:38 ImgBurn Version 2.5.3.0 started!

I 10:47:38 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 10:47:38 Total Physical Memory: 3,143,248 KB - Available: 901,680 KB

I 10:47:38 Initialising SPTI...

I 10:47:38 Searching for SCSI / ATAPI devices...

I 10:47:38 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 10:47:38 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 10:47:38 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 10:47:38 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 10:47:39 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 10:47:39 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 10:47:39 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:47:39 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 10:47:39 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 10:47:39 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 10:47:39 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 10:47:39 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 10:47:39 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 10:47:50 Operation Started!

I 10:47:50 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:47:50 Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 10:47:50 Quick Erase: No

I 10:47:50 Format Properly: Yes

I 10:47:50 Format Size: Preferred

I 10:47:50 Format With Full Certification: Yes

I 10:47:50 Format Without Spare Areas: Yes

I 10:47:50 Erasing Disc...

I 10:48:07 Operation Successfully Completed! - Duration: 00:00:17

I 10:48:07 Operation Started!

I 10:48:07 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 10:48:07 Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 10:48:07 Media Sectors: 12,219,392

I 10:48:07 BD-RE FastWrite: No

I 10:48:07 Zeroing Sectors...

I 11:34:23 Synchronising Cache...

I 11:34:24 Operation Successfully Completed! - Duration: 00:46:16 - Total Duration: 00:46:34

I 11:34:24 Average Write Rate: 8,803 KB/s (2.0x)



Results:

I 12:02:25 ImgBurn Version 2.5.3.0 started!

I 12:02:25 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 12:02:25 Total Physical Memory: 3,143,248 KB - Available: 925,484 KB

I 12:02:25 Initialising SPTI...

I 12:02:25 Searching for SCSI / ATAPI devices...

I 12:02:25 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 12:02:26 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 12:02:26 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 12:02:26 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 12:02:26 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 12:02:26 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 12:02:26 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:02:26 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 12:02:26 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 12:02:26 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 12:02:27 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:02:27 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 12:02:27 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 12:04:55 Operation Started!

I 12:04:55 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:04:55 Source File Sectors: 12,219,392 (MODE1/2048)

I 12:04:55 Source File Size: 25,025,314,816 bytes

I 12:04:55 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 12:04:55 Source File Volume Set Identifier: 12219392_SECTORS

I 12:04:55 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 12:04:55 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 12:04:55 Source File File System(s): ISO9660

I 12:04:55 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:04:55 Destination Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 12:04:55 Destination Media Sectors: 12,219,392

I 12:04:55 Write Mode: BD

I 12:04:55 Write Type: DAO

I 12:04:55 Write Speed: 2x

I 12:04:55 BD-RE FastWrite: No

I 12:04:55 Link Size: Auto

I 12:04:55 Lock Volume: Yes

I 12:04:55 Test Mode: No

I 12:04:55 OPC: No

I 12:04:55 BURN-Proof: Enabled

I 12:04:55 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 12:04:55 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 12:04:55 Filling Buffer... (40 MB)

I 12:04:55 Writing LeadIn...

I 12:04:57 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:04:57 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 12:51:06 Synchronising Cache...

I 12:51:09 Exporting Graph Data...

I 12:51:09 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_19-NOVEMBER-2010_12-04_RITEK-BW1-001_2x.ibg

I 12:51:09 Export Successfully Completed!

I 12:51:09 Operation Successfully Completed! - Duration: 00:46:11

I 12:51:09 Average Write Rate: 8,829 KB/s (2.0x) - Maximum Write Rate: 10,076 KB/s (2.2x)

I 12:51:09 Cycling Tray before Verify...

W 12:51:16 Waiting for device to become ready...

I 12:51:31 Device Ready!

I 12:51:34 Operation Started!

I 12:51:34 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:51:34 Source Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 12:51:34 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:51:34 Image File Sectors: 12,219,392 (MODE1/2048)

I 12:51:34 Image File Size: 25,025,314,816 bytes

I 12:51:34 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 12:51:34 Image File Volume Set Identifier: 12219392_SECTORS

I 12:51:34 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 12:51:34 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 12:51:34 Image File File System(s): ISO9660

I 12:51:34 Read Speed (Data/Audio): MAX / MAX

I 12:51:34 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:51:34 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:07:42 Exporting Graph Data...

I 13:07:42 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_19-NOVEMBER-2010_12-04_RITEK-BW1-001_2x.ibg

I 13:07:42 Export Successfully Completed!

I 13:07:42 Operation Successfully Completed! - Duration: 00:16:07

I 13:07:42 Average Verify Rate: 25,272 KB/s (5.6x) - Maximum Verify Rate: 36,700 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Infiniti 2x BD-RE [PHILIP-W02-000] @ 2x



Infiniti - Part Number: RSBDREJC



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: PHILIP-W02-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x01 - NB: 11564032 (0x00B07400) - TDP: 2048

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 8,990 KB/s (2x)



Full Erase:

I 14:25:42 ImgBurn Version 2.5.3.0 started!

I 14:25:42 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 14:25:42 Total Physical Memory: 3,143,248 KB - Available: 1,109,196 KB

I 14:25:42 Initialising SPTI...

I 14:25:42 Searching for SCSI / ATAPI devices...

I 14:25:42 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 14:25:43 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 14:25:43 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 14:25:43 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 14:25:43 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 14:25:43 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 14:25:43 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:25:43 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 14:25:43 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 14:25:43 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 14:25:43 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:25:43 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 14:25:43 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 14:25:56 Operation Started!

I 14:25:56 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:25:56 Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 14:25:56 Quick Erase: No

I 14:25:56 Format Properly: Yes

I 14:25:56 Format Size: Preferred

I 14:25:56 Format With Full Certification: Yes

I 14:25:56 Format Without Spare Areas: Yes

I 14:25:56 Erasing Disc...

I 14:26:10 Operation Successfully Completed! - Duration: 00:00:13

I 14:26:10 Operation Started!

I 14:26:10 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:26:10 Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 14:26:10 Media Sectors: 12,219,392

I 14:26:10 BD-RE FastWrite: No

I 14:26:10 Zeroing Sectors...

I 15:12:17 Synchronising Cache...

I 15:12:18 Operation Successfully Completed! - Duration: 00:46:08 - Total Duration: 00:46:21

I 15:12:18 Average Write Rate: 8,829 KB/s (2.0x)



Results:

I 15:25:38 ImgBurn Version 2.5.3.0 started!

I 15:25:38 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 15:25:38 Total Physical Memory: 3,143,248 KB - Available: 1,158,552 KB

I 15:25:39 Initialising SPTI...

I 15:25:39 Searching for SCSI / ATAPI devices...

I 15:25:39 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 15:25:39 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 15:25:39 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 15:25:39 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 15:25:39 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 15:25:39 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 15:25:39 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:25:39 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 15:25:39 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 15:25:39 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 15:25:40 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:25:40 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 15:25:40 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 15:26:19 Operation Started!

I 15:26:19 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 15:26:19 Source File Sectors: 12,219,392 (MODE1/2048)

I 15:26:19 Source File Size: 25,025,314,816 bytes

I 15:26:19 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 15:26:19 Source File Volume Set Identifier: 12219392_SECTORS

I 15:26:19 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 15:26:19 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 15:26:19 Source File File System(s): ISO9660

I 15:26:19 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:26:19 Destination Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 15:26:19 Destination Media Sectors: 12,219,392

I 15:26:19 Write Mode: BD

I 15:26:19 Write Type: DAO

I 15:26:19 Write Speed: 2x

I 15:26:19 BD-RE FastWrite: No

I 15:26:19 Link Size: Auto

I 15:26:19 Lock Volume: Yes

I 15:26:19 Test Mode: No

I 15:26:19 OPC: No

I 15:26:19 BURN-Proof: Enabled

I 15:26:19 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 15:26:19 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 15:26:19 Filling Buffer... (40 MB)

I 15:26:19 Writing LeadIn...

I 15:26:21 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 15:26:21 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 16:12:28 Synchronising Cache...

I 16:12:29 Exporting Graph Data...

I 16:12:29 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_21-NOVEMBER-2010_15-26_PHILIP-W02-000_2x.ibg

I 16:12:29 Export Successfully Completed!

I 16:12:29 Operation Successfully Completed! - Duration: 00:46:09

I 16:12:29 Average Write Rate: 8,832 KB/s (2.0x) - Maximum Write Rate: 9,094 KB/s (2.0x)

I 16:12:29 Cycling Tray before Verify...

W 16:12:36 Waiting for device to become ready...

I 16:12:51 Device Ready!

I 16:12:54 Operation Started!

I 16:12:54 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 16:12:54 Source Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 16:12:54 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 16:12:54 Image File Sectors: 12,219,392 (MODE1/2048)

I 16:12:54 Image File Size: 25,025,314,816 bytes

I 16:12:54 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 16:12:54 Image File Volume Set Identifier: 12219392_SECTORS

I 16:12:54 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 16:12:54 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 16:12:54 Image File File System(s): ISO9660

I 16:12:54 Read Speed (Data/Audio): MAX / MAX

I 16:12:54 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 16:12:54 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 16:28:59 Exporting Graph Data...

I 16:28:59 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_21-NOVEMBER-2010_15-26_PHILIP-W02-000_2x.ibg

I 16:28:59 Export Successfully Completed!

I 16:28:59 Operation Successfully Completed! - Duration: 00:16:05

I 16:28:59 Average Verify Rate: 25,325 KB/s (5.6x) - Maximum Verify Rate: 36,732 KB/s (8.2x)






Scans:










Share this post


Link to post
Share on other sites

Maxell 2x BD-RE DL [TDKBLD-Wfa-000] @ 2x



Maxell - Part Number: BD-RE50.MEL.1P - Item# 58639200 - Made in Japan



Media Information:

ATAPI iHBS112 2 CL0F (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information (L0):

Disc ID: TDKBLD-Wfa-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 2

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



BD Disc Information (L1):

Disc ID: TDKBLD-Wfa-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 2

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

First PAA of Data Zone: 2,535,808

Last PAA of Data Zone: 4,063,230



Format Capacities:

DT: 0x01 - NB: 24438784 (0x0174E800) - TDP: 53248

FT: 0x00 - NB: 23652352 (0x0168E800) - TDP: 24576

FT: 0x01 - NB: 23259136 (0x0162E800) - TDP: 2048

FT: 0x30 - NB: 23652352 (0x0168E800) - TDP: 24576

FT: 0x30 - NB: 23259136 (0x0162E800) - TDP: 36864

FT: 0x30 - NB: 24307712 (0x0172E800) - TDP: 4096

FT: 0x31 - NB: 24438784 (0x0174E800) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 24438783 (0x0174E7FF)

-> RS: 26,970 KB/s (6x) - WS: 8,990 KB/s (2x)



Full Erase:

I 19:10:59 ImgBurn Version 2.5.3.0 started!

I 19:10:59 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 19:10:59 Total Physical Memory: 3,143,248 KB - Available: 825,768 KB

I 19:10:59 Initialising SPTI...

I 19:10:59 Searching for SCSI / ATAPI devices...

I 19:11:00 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 19:11:00 -> Drive 2 - Info: ATAPI iHAS624 B GL24 (M:) (ATA)

I 19:11:00 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 19:11:00 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 19:11:00 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 19:11:00 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 19:11:00 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:11:00 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 19:11:00 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 19:11:00 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 19:11:01 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 19:11:01 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 19:11:01 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 19:11:33 Operation Started!

I 19:11:33 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:11:33 Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 19:11:33 Quick Erase: No

I 19:11:33 Format Properly: Yes

I 19:11:33 Format Size: Preferred

I 19:11:33 Format With Full Certification: Yes

I 19:11:33 Format Without Spare Areas: Yes

I 19:11:33 Erasing Disc...

I 19:12:08 Operation Successfully Completed! - Duration: 00:00:34

I 19:12:08 Operation Started!

I 19:12:08 Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:12:08 Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 19:12:08 Media Sectors: 24,438,784

I 19:12:08 BD-RE FastWrite: No

I 19:12:08 Zeroing Sectors...

I 20:44:24 Synchronising Cache...

I 20:44:25 Operation Successfully Completed! - Duration: 01:32:16 - Total Duration: 01:32:51

I 20:44:25 Average Write Rate: 8,829 KB/s (2.0x)



Results:

I 20:54:10 ImgBurn Version 2.5.3.0 started!

I 20:54:10 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 20:54:10 Total Physical Memory: 3,143,248 KB - Available: 1,115,436 KB

I 20:54:10 Initialising SPTI...

I 20:54:10 Searching for SCSI / ATAPI devices...

I 20:54:10 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 20:54:10 -> Drive 2 - Info: ATAPI iHAS624 B GL24 (M:) (ATA)

I 20:54:10 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 20:54:10 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 20:54:10 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 20:54:10 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 20:54:10 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:54:11 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 20:54:11 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 20:54:11 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 20:54:11 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:54:11 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 20:54:11 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 20:54:23 Operation Started!

I 20:54:23 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:54:23 Source File Sectors: 24,438,784 (MODE1/2048)

I 20:54:23 Source File Size: 50,050,629,632 bytes

I 20:54:23 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 20:54:23 Source File Volume Set Identifier: 24438784_SECTORS

I 20:54:23 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 20:54:23 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 20:54:23 Source File File System(s): ISO9660

I 20:54:23 Destination Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:54:23 Destination Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 20:54:23 Destination Media Sectors: 24,438,784

I 20:54:23 Write Mode: BD

I 20:54:23 Write Type: DAO

I 20:54:23 Write Speed: 2x

I 20:54:23 BD-RE FastWrite: No

I 20:54:23 Link Size: Auto

I 20:54:23 Lock Volume: Yes

I 20:54:23 Test Mode: No

I 20:54:23 OPC: No

I 20:54:23 BURN-Proof: Enabled

I 20:54:23 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 20:54:23 Advanced Settings - Force HT: No, Online HT: No, OverSpeed: No, SmartBurn: Yes

I 20:54:24 Filling Buffer... (40 MB)

I 20:54:24 Writing LeadIn...

I 20:54:25 Writing Session 1 of 1... (1 Track, LBA: 0 - 24438783)

I 20:54:25 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 24438783)

I 20:54:25 Writing Layer 0... (LBA: 0 - 12219391)

I 21:40:32 Writing Layer 1... (LBA: 12219392 - 24438783)

I 22:26:41 Synchronising Cache...

I 22:26:42 Exporting Graph Data...

I 22:26:42 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_27-NOVEMBER-2010_20-54_TDKBLD-Wfa-000_2x.ibg

I 22:26:42 Export Successfully Completed!

I 22:26:42 Operation Successfully Completed! - Duration: 01:32:18

I 22:26:42 Average Write Rate: 8,830 KB/s (2.0x) - Maximum Write Rate: 9,098 KB/s (2.0x)

I 22:26:42 Cycling Tray before Verify...

W 22:26:49 Waiting for device to become ready...

I 22:27:12 Device Ready!

I 22:27:14 Operation Started!

I 22:27:14 Source Device: [7:2:0] ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:27:14 Source Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 22:27:14 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:27:14 Image File Sectors: 24,438,784 (MODE1/2048)

I 22:27:14 Image File Size: 50,050,629,632 bytes

I 22:27:14 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 22:27:14 Image File Volume Set Identifier: 24438784_SECTORS

I 22:27:14 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 22:27:14 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 22:27:14 Image File File System(s): ISO9660

I 22:27:14 Read Speed (Data/Audio): MAX / MAX

I 22:27:14 Verifying Session 1 of 1... (1 Track, LBA: 0 - 24438783)

I 22:27:14 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 24438783)

I 22:27:14 Verifying Layer 0... (LBA: 0 - 12219391)

I 22:48:32 Verifying Layer 1... (LBA: 12219392 - 24438783)

I 23:09:57 Exporting Graph Data...

I 23:09:57 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\ATAPI_iHBS112_2_CL0F_27-NOVEMBER-2010_20-54_TDKBLD-Wfa-000_2x.ibg

I 23:09:57 Export Successfully Completed!

I 23:09:57 Operation Successfully Completed! - Duration: 00:42:42

I 23:09:57 Average Verify Rate: 19,077 KB/s (4.2x) - Maximum Verify Rate: 27,735 KB/s (6.2x)






Scans:










Share this post


Link to post
Share on other sites
Sign in to follow this

×

Important Information

By using this site, you agree to our Terms of Use.
