LIGHTNING UK!

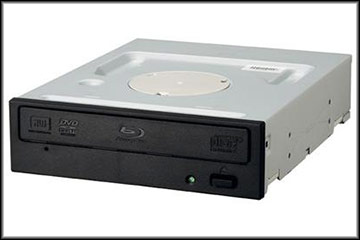

PIONEER BD-RW BDR-205

Recommended Posts

Firmware Version 1.09



Aone 4x BD-R [PHILIP-R04-00] @ 4x - Click Here

Kodak 4x BD-R [PHILIP-R04-00] @ 4x - Click Here

Panasonic 4x BD-R [MEI-T02-01] @ 4x - Click Here

Verbatim 2x BD-R [VERBAT-IMa-00] @ 2x - Click Here

Verbatim 4x BD-R [VERBAT-IMc-00] @ 4x - Click Here

Verbatim 6x BD-R [VERBAT-IMe-00] @ 6x - Click Here

Verbatim 2x LTH BD-R [VERBAT-IMw-00] @ 2x - Click Here

Traxdata 4x BD-R [RITEK-BR2-00] @ 4x - Click Here

Maxell 4x BD-R [RITEK-BR2-00] @ 4x - Click Here

Mirror 4x BD-R [PHILIP-R04-00] @ 4x - Click Here

RiDisc 4x BD-R [CMCMAG-BA3-00] @ 4x - Click Here

Sumvision 4x BD-R [RITEK-BR2-00] @ 4x - Click Here

Verbatim 4x LTH BD-R [VERBAT-IMv-00] @ 4x - Click Here

Victor JVC 4x LTH BD-R [TYG-BD-Y03-01] @ 4x - Click Here

Maxell 2x BD-RE [RITEK-BW1-01] @ 2x - Click Here

Panasonic 2x BD-RE [MEI-T01-01] @ 2x - Click Here

Sony 2x BD-RE [sONY-ES1-02] @ 2x - Click Here

TDK 2x BD-RE [TDKBLD-WBA-00] @ 2x - Click Here

Verbatim 2x BD-RE [VERBAT-IM0-000] @ 2x - Click Here

Victor JVC 2x BD-RE [JVCRE1-101-001] @ 2x - Click Here

Traxdata 2x BD-RE [RITEK-BW1-001] @ 2x - Click Here

Infiniti 2x BD-RE [PHILIP-W02-000] @ 2x - Click Here

Maxell 2x BD-RE DL [TDKBLD-Wfa-000] @ 2x - Click Here

Panasonic 2x BD-RE DL [MEI-T01-001] @ 2x - Click Here

Sony 2x BD-RE DL [MEI-T01-001] @ 2x - Click Here

TDK 2x BD-RE DL [TDKBLD-Wfa-000] @ 2x - Click Here



Firmware Version 1.12



Kodak 4x BD-R [PHILIP-R04-000] @ 4x - Click Here

Share this post


Link to post
Share on other sites

Aone 4x BD-R [PHILIP-R04-00] @ 4x



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: PHILIP-R04-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)

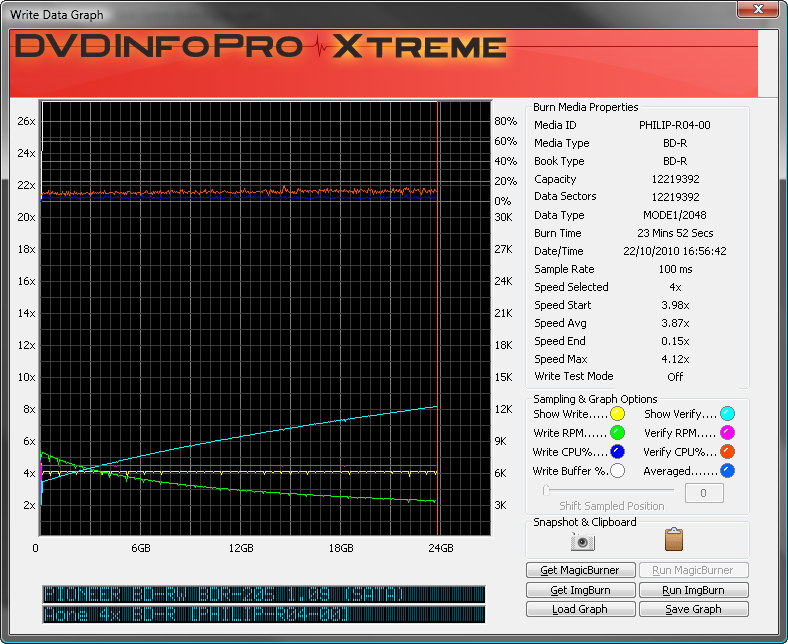

Results:

I 16:56:34 ImgBurn Version 2.5.3.0 started!

I 16:56:34 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 16:56:34 Total Physical Memory: 3,143,248 KB - Available: 1,405,596 KB

I 16:56:34 Initialising SPTI...

I 16:56:34 Searching for SCSI / ATAPI devices...

I 16:56:34 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 16:56:34 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 16:56:34 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 16:56:35 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 16:56:35 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 16:56:35 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 16:56:35 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 16:56:35 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 16:56:35 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 16:56:35 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 16:56:35 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:56:35 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 16:56:35 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 16:56:42 Operation Started!

I 16:56:42 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 16:56:42 Source File Sectors: 12,219,392 (MODE1/2048)

I 16:56:42 Source File Size: 25,025,314,816 bytes

I 16:56:42 Source File Volume Identifier: DISCOVERY_IMAGE

I 16:56:42 Source File File System(s): None

I 16:56:42 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:56:42 Destination Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 16:56:42 Destination Media Sectors: 12,219,392

I 16:56:42 Write Mode: BD

I 16:56:42 Write Type: DAO

I 16:56:42 Write Speed: 4x

I 16:56:42 BD-R Verify Not Required: Yes

I 16:56:42 Link Size: Auto

I 16:56:42 Lock Volume: Yes

I 16:56:42 Test Mode: No

I 16:56:42 OPC: No

I 16:56:42 BURN-Proof: Enabled

I 16:56:42 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 16:56:42 Advanced Settings - Optimal Writing Speed: No

I 16:56:42 Filling Buffer... (40 MB)

I 16:56:42 Writing LeadIn...

I 16:57:00 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 16:57:00 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 17:20:24 Synchronising Cache...

I 17:20:25 Closing Track...

I 17:20:26 Finalising Disc...

I 17:20:35 Exporting Graph Data...

I 17:20:35 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_22-OCTOBER-2010_16-56_PHILIP-R04-00_4x.ibg

I 17:20:35 Export Successfully Completed!

I 17:20:35 Operation Successfully Completed! - Duration: 00:23:52

I 17:20:35 Average Write Rate: 17,418 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 17:20:35 Cycling Tray before Verify...

I 17:20:52 Device Ready!

I 17:20:52 Operation Started!

I 17:20:52 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 17:20:52 Source Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 17:20:52 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 17:20:52 Image File Sectors: 12,219,392 (MODE1/2048)

I 17:20:52 Image File Size: 25,025,314,816 bytes

I 17:20:52 Image File Volume Identifier: DISCOVERY_IMAGE

I 17:20:52 Image File File System(s): None

I 17:20:52 Read Speed (Data/Audio): MAX / MAX

I 17:20:52 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 17:20:52 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 17:37:16 Exporting Graph Data...

I 17:37:16 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_22-OCTOBER-2010_16-56_PHILIP-R04-00_4x.ibg

I 17:37:16 Export Successfully Completed!

I 17:37:16 Operation Successfully Completed! - Duration: 00:16:23

I 17:37:16 Average Verify Rate: 24,861 KB/s (5.5x) - Maximum Verify Rate: 36,164 KB/s (8.0x)

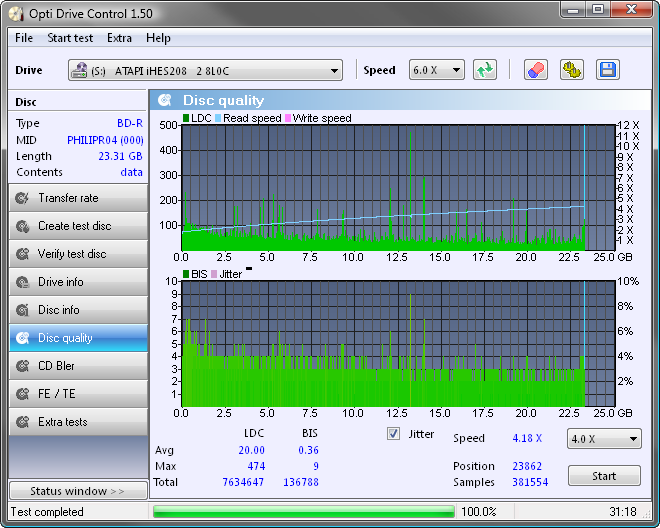

Scans:










Share this post


Link to post
Share on other sites

Kodak 4x BD-R [PHILIP-R04-00] @ 4x



Kodak CAT 3936194 - Made in India



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: PHILIP-R04-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 22:54:36 ImgBurn Version 2.5.3.0 started!

I 22:54:36 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 22:54:36 Total Physical Memory: 3,143,248 KB - Available: 1,041,620 KB

I 22:54:36 Initialising SPTI...

I 22:54:36 Searching for SCSI / ATAPI devices...

I 22:54:37 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 22:54:37 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 22:54:37 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 22:54:37 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 22:54:37 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 22:54:37 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:54:37 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 22:54:37 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 22:54:37 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 22:54:37 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 22:54:37 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:54:38 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 22:54:38 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 22:55:11 Operation Started!

I 22:55:11 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:55:11 Source File Sectors: 12,219,392 (MODE1/2048)

I 22:55:11 Source File Size: 25,025,314,816 bytes

I 22:55:11 Source File Volume Identifier: DISCOVERY_IMAGE

I 22:55:11 Source File File System(s): None

I 22:55:11 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:55:11 Destination Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 22:55:11 Destination Media Sectors: 12,219,392

I 22:55:11 Write Mode: BD

I 22:55:11 Write Type: DAO

I 22:55:11 Write Speed: 4x

I 22:55:11 BD-R Verify Not Required: Yes

I 22:55:11 Link Size: Auto

I 22:55:11 Lock Volume: Yes

I 22:55:11 Test Mode: No

I 22:55:11 OPC: No

I 22:55:11 BURN-Proof: Enabled

I 22:55:11 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 22:55:11 Advanced Settings - Optimal Writing Speed: No

I 22:55:11 Filling Buffer... (40 MB)

I 22:55:11 Writing LeadIn...

I 22:55:31 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:55:31 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:18:57 Synchronising Cache...

I 23:18:58 Closing Track...

I 23:18:59 Finalising Disc...

I 23:19:08 Exporting Graph Data...

I 23:19:08 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_23-OCTOBER-2010_22-55_PHILIP-R04-00_4x.ibg

I 23:19:08 Export Successfully Completed!

I 23:19:08 Operation Successfully Completed! - Duration: 00:23:57

I 23:19:08 Average Write Rate: 17,394 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 23:19:08 Cycling Tray before Verify...

I 23:19:26 Device Ready!

I 23:19:26 Operation Started!

I 23:19:26 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:19:26 Source Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 23:19:26 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:19:26 Image File Sectors: 12,219,392 (MODE1/2048)

I 23:19:26 Image File Size: 25,025,314,816 bytes

I 23:19:26 Image File Volume Identifier: DISCOVERY_IMAGE

I 23:19:26 Image File File System(s): None

I 23:19:26 Read Speed (Data/Audio): MAX / MAX

I 23:19:26 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:19:26 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:35:50 Exporting Graph Data...

I 23:35:50 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_23-OCTOBER-2010_22-55_PHILIP-R04-00_4x.ibg

I 23:35:50 Export Successfully Completed!

I 23:35:50 Operation Successfully Completed! - Duration: 00:16:24

I 23:35:50 Average Verify Rate: 24,861 KB/s (5.5x) - Maximum Verify Rate: 36,149 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

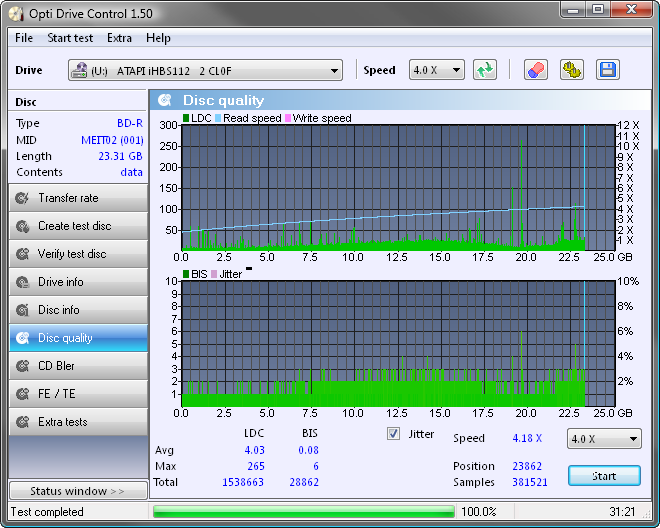

Panasonic 4x BD-R [MEI-T02-01] @ 4x



Panasonic LM-BRS2LWE10 - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: MEI-T02-01

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 22:25:18 ImgBurn Version 2.5.3.0 started!

I 22:25:18 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 22:25:18 Total Physical Memory: 3,143,248 KB - Available: 1,057,000 KB

I 22:25:18 Initialising SPTI...

I 22:25:18 Searching for SCSI / ATAPI devices...

I 22:25:18 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 22:25:18 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 22:25:18 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 22:25:18 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 22:25:18 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 22:25:19 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:25:19 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 22:25:19 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 22:25:19 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 22:25:19 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 22:25:19 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:25:19 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 22:25:19 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 22:26:18 Operation Started!

I 22:26:18 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:26:18 Source File Sectors: 12,219,392 (MODE1/2048)

I 22:26:18 Source File Size: 25,025,314,816 bytes

I 22:26:18 Source File Volume Identifier: DISCOVERY_IMAGE

I 22:26:18 Source File File System(s): None

I 22:26:18 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:26:18 Destination Media Type: BD-R (Disc ID: MEI-T02-01) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 22:26:18 Destination Media Sectors: 12,219,392

I 22:26:18 Write Mode: BD

I 22:26:18 Write Type: DAO

I 22:26:18 Write Speed: 4x

I 22:26:18 BD-R Verify Not Required: Yes

I 22:26:18 Link Size: Auto

I 22:26:18 Lock Volume: Yes

I 22:26:18 Test Mode: No

I 22:26:18 OPC: No

I 22:26:18 BURN-Proof: Enabled

I 22:26:18 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 22:26:18 Advanced Settings - Optimal Writing Speed: No

I 22:26:19 Filling Buffer... (40 MB)

I 22:26:19 Writing LeadIn...

I 22:26:39 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:26:39 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:50:04 Synchronising Cache...

I 22:50:05 Closing Track...

I 22:50:06 Finalising Disc...

I 22:50:15 Exporting Graph Data...

I 22:50:15 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_24-OCTOBER-2010_22-26_MEI-T02-01_4x.ibg

I 22:50:15 Export Successfully Completed!

I 22:50:15 Operation Successfully Completed! - Duration: 00:23:56

I 22:50:15 Average Write Rate: 17,406 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 22:50:15 Cycling Tray before Verify...

I 22:50:33 Device Ready!

I 22:50:33 Operation Started!

I 22:50:33 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:50:33 Source Media Type: BD-R (Disc ID: MEI-T02-01) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 22:50:33 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:50:33 Image File Sectors: 12,219,392 (MODE1/2048)

I 22:50:33 Image File Size: 25,025,314,816 bytes

I 22:50:33 Image File Volume Identifier: DISCOVERY_IMAGE

I 22:50:33 Image File File System(s): None

I 22:50:33 Read Speed (Data/Audio): MAX / MAX

I 22:50:33 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:50:33 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:06:59 Exporting Graph Data...

I 23:06:59 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_24-OCTOBER-2010_22-26_MEI-T02-01_4x.ibg

I 23:06:59 Export Successfully Completed!

I 23:06:59 Operation Successfully Completed! - Duration: 00:16:25

I 23:06:59 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,117 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

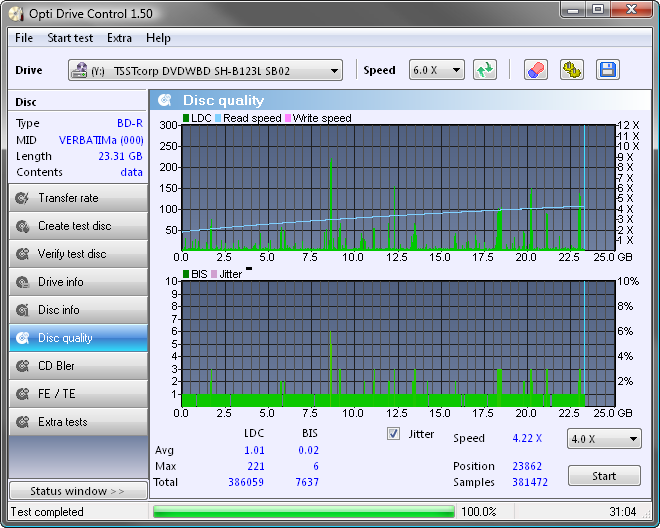

Verbatim 2x BD-R [VERBAT-IMa-00] @ 2x



Verbatim 43612 - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: VERBAT-IMa-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Results:

I 21:38:45 ImgBurn Version 2.5.3.0 started!

I 21:38:45 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:38:45 Total Physical Memory: 3,143,248 KB - Available: 1,274,468 KB

I 21:38:45 Initialising SPTI...

I 21:38:45 Searching for SCSI / ATAPI devices...

I 21:38:46 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:38:46 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:38:46 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 21:38:46 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:38:46 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:38:46 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:38:46 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:38:46 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:38:46 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:38:46 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:38:46 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:38:47 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:38:47 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:39:30 Operation Started!

I 21:39:30 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:39:30 Source File Sectors: 12,219,392 (MODE1/2048)

I 21:39:30 Source File Size: 25,025,314,816 bytes

I 21:39:30 Source File Volume Identifier: DISCOVERY_IMAGE

I 21:39:30 Source File File System(s): None

I 21:39:30 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:39:30 Destination Media Type: BD-R (Disc ID: VERBAT-IMa-00) (Speeds: 2x)

I 21:39:30 Destination Media Sectors: 12,219,392

I 21:39:30 Write Mode: BD

I 21:39:30 Write Type: DAO

I 21:39:30 Write Speed: 2x

I 21:39:30 BD-R Verify Not Required: Yes

I 21:39:30 Link Size: Auto

I 21:39:30 Lock Volume: Yes

I 21:39:30 Test Mode: No

I 21:39:30 OPC: No

I 21:39:30 BURN-Proof: Enabled

I 21:39:30 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 21:39:30 Advanced Settings - Optimal Writing Speed: No

I 21:39:31 Filling Buffer... (40 MB)

I 21:39:31 Writing LeadIn...

I 21:39:47 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:39:47 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:26:29 Synchronising Cache...

I 22:26:30 Closing Track...

I 22:26:31 Finalising Disc...

I 22:26:40 Exporting Graph Data...

I 22:26:40 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_25-OCTOBER-2010_21-39_VERBAT-IMa-00_2x.ibg

I 22:26:40 Export Successfully Completed!

I 22:26:40 Operation Successfully Completed! - Duration: 00:47:09

I 22:26:40 Average Write Rate: 8,725 KB/s (1.9x) - Maximum Write Rate: 9,038 KB/s (2.0x)

I 22:26:40 Cycling Tray before Verify...

I 22:26:58 Device Ready!

I 22:26:58 Operation Started!

I 22:26:58 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:26:58 Source Media Type: BD-R (Disc ID: VERBAT-IMa-00) (Speeds: 2x)

I 22:26:58 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:26:58 Image File Sectors: 12,219,392 (MODE1/2048)

I 22:26:58 Image File Size: 25,025,314,816 bytes

I 22:26:58 Image File Volume Identifier: DISCOVERY_IMAGE

I 22:26:58 Image File File System(s): None

I 22:26:58 Read Speed (Data/Audio): MAX / MAX

I 22:26:58 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:26:58 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:43:24 Exporting Graph Data...

I 22:43:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_25-OCTOBER-2010_21-39_VERBAT-IMa-00_2x.ibg

I 22:43:24 Export Successfully Completed!

I 22:43:24 Operation Successfully Completed! - Duration: 00:16:25

I 22:43:24 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,085 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

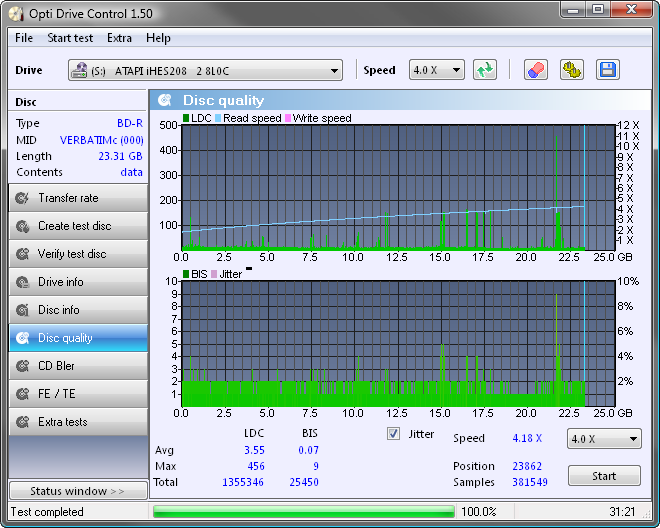

Verbatim 4x BD-R [VERBAT-IMc-00] @ 4x



Verbatim 43687 - Made in Taiwan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: VERBAT-IMc-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 14:09:30 ImgBurn Version 2.5.3.0 started!

I 14:09:30 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 14:09:30 Total Physical Memory: 3,143,248 KB - Available: 1,019,972 KB

I 14:09:30 Initialising SPTI...

I 14:09:30 Searching for SCSI / ATAPI devices...

I 14:09:30 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 14:09:30 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 14:09:30 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 14:09:31 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 14:09:31 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 14:09:31 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:09:31 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 14:09:31 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 14:09:31 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 14:09:31 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 14:09:31 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:09:31 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 14:09:31 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 14:09:39 Operation Started!

I 14:09:39 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 14:09:39 Source File Sectors: 12,219,392 (MODE1/2048)

I 14:09:39 Source File Size: 25,025,314,816 bytes

I 14:09:39 Source File Volume Identifier: DISCOVERY_IMAGE

I 14:09:39 Source File File System(s): None

I 14:09:39 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:09:39 Destination Media Type: BD-R (Disc ID: VERBAT-IMc-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 14:09:39 Destination Media Sectors: 12,219,392

I 14:09:39 Write Mode: BD

I 14:09:39 Write Type: DAO

I 14:09:39 Write Speed: 4x

I 14:09:39 BD-R Verify Not Required: Yes

I 14:09:39 Link Size: Auto

I 14:09:39 Lock Volume: Yes

I 14:09:39 Test Mode: No

I 14:09:39 OPC: No

I 14:09:39 BURN-Proof: Enabled

I 14:09:39 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 14:09:39 Advanced Settings - Optimal Writing Speed: No

I 14:09:39 Filling Buffer... (40 MB)

I 14:09:39 Writing LeadIn...

I 14:09:59 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 14:09:59 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 14:33:24 Synchronising Cache...

I 14:33:25 Closing Track...

I 14:33:26 Finalising Disc...

I 14:33:35 Exporting Graph Data...

I 14:33:35 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_26-OCTOBER-2010_14-09_VERBAT-IMc-00_4x.ibg

I 14:33:35 Export Successfully Completed!

I 14:33:35 Operation Successfully Completed! - Duration: 00:23:56

I 14:33:35 Average Write Rate: 17,406 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 14:33:35 Cycling Tray before Verify...

I 14:33:53 Device Ready!

I 14:33:53 Operation Started!

I 14:33:53 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:33:53 Source Media Type: BD-R (Disc ID: VERBAT-IMc-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 14:33:53 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 14:33:53 Image File Sectors: 12,219,392 (MODE1/2048)

I 14:33:53 Image File Size: 25,025,314,816 bytes

I 14:33:53 Image File Volume Identifier: DISCOVERY_IMAGE

I 14:33:53 Image File File System(s): None

I 14:33:53 Read Speed (Data/Audio): MAX / MAX

I 14:33:53 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 14:33:53 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 14:50:19 Exporting Graph Data...

I 14:50:19 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_26-OCTOBER-2010_14-09_VERBAT-IMc-00_4x.ibg

I 14:50:19 Export Successfully Completed!

I 14:50:19 Operation Successfully Completed! - Duration: 00:16:25

I 14:50:19 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,076 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 6x BD-R [VERBAT-IMe-00] @ 6x



Verbatim 43714 - Made in Taiwan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: VERBAT-IMe-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 00:20:21 ImgBurn Version 2.5.3.0 started!

I 00:20:21 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 00:20:21 Total Physical Memory: 3,143,248 KB - Available: 859,568 KB

I 00:20:21 Initialising SPTI...

I 00:20:21 Searching for SCSI / ATAPI devices...

I 00:20:21 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 00:20:21 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 00:20:21 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 00:20:21 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 00:20:21 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 00:20:21 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 00:20:21 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 00:20:21 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 00:20:21 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 00:20:21 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 00:20:22 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 00:20:22 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 00:20:22 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 00:20:27 Operation Started!

I 00:20:27 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 00:20:27 Source File Sectors: 12,219,392 (MODE1/2048)

I 00:20:27 Source File Size: 25,025,314,816 bytes

I 00:20:27 Source File Volume Identifier: DISCOVERY_IMAGE

I 00:20:27 Source File File System(s): None

I 00:20:27 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 00:20:27 Destination Media Type: BD-R (Disc ID: VERBAT-IMe-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 00:20:27 Destination Media Sectors: 12,219,392

I 00:20:27 Write Mode: BD

I 00:20:27 Write Type: DAO

I 00:20:27 Write Speed: 6x

I 00:20:27 BD-R Verify Not Required: Yes

I 00:20:27 Link Size: Auto

I 00:20:27 Lock Volume: Yes

I 00:20:27 Test Mode: No

I 00:20:27 OPC: No

I 00:20:27 BURN-Proof: Enabled

I 00:20:27 Write Speed Successfully Set! - Effective: 26,970 KB/s (6x)

I 00:20:27 Advanced Settings - Optimal Writing Speed: No

I 00:20:27 Filling Buffer... (40 MB)

I 00:20:27 Writing LeadIn...

I 00:20:47 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 00:20:47 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:36:29 Synchronising Cache...

I 00:36:30 Closing Track...

I 00:36:31 Finalising Disc...

I 00:36:40 Exporting Graph Data...

I 00:36:40 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_27-OCTOBER-2010_00-20_VERBAT-IMe-00_6x.ibg

I 00:36:40 Export Successfully Completed!

I 00:36:40 Operation Successfully Completed! - Duration: 00:16:13

I 00:36:40 Average Write Rate: 25,971 KB/s (5.8x) - Maximum Write Rate: 27,055 KB/s (6.0x)

I 00:36:40 Cycling Tray before Verify...

I 00:36:58 Device Ready!

I 00:36:58 Operation Started!

I 00:36:58 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 00:36:58 Source Media Type: BD-R (Disc ID: VERBAT-IMe-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 00:36:58 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 00:36:58 Image File Sectors: 12,219,392 (MODE1/2048)

I 00:36:58 Image File Size: 25,025,314,816 bytes

I 00:36:58 Image File Volume Identifier: DISCOVERY_IMAGE

I 00:36:58 Image File File System(s): None

I 00:36:58 Read Speed (Data/Audio): MAX / MAX

I 00:36:58 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 00:36:58 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:53:24 Exporting Graph Data...

I 00:53:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_27-OCTOBER-2010_00-20_VERBAT-IMe-00_6x.ibg

I 00:53:24 Export Successfully Completed!

I 00:53:24 Operation Successfully Completed! - Duration: 00:16:25

I 00:53:24 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,117 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 2x LTH BD-R [VERBAT-IMw-00] @ 2x



Verbatim 43692 - Made in Singapore



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: VERBAT-IMw-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Negative

Recorded Mark Polarity: LTH

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Results:

I 22:52:17 ImgBurn Version 2.5.3.0 started!

I 22:52:17 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 22:52:17 Total Physical Memory: 3,143,248 KB - Available: 916,600 KB

I 22:52:17 Initialising SPTI...

I 22:52:17 Searching for SCSI / ATAPI devices...

I 22:52:17 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 22:52:17 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 22:52:17 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 22:52:18 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 22:52:18 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 22:52:18 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:52:18 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 22:52:18 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 22:52:18 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 22:52:18 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 22:52:18 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:52:18 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 22:52:18 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 22:52:38 Operation Started!

I 22:52:38 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:52:38 Source File Sectors: 12,219,392 (MODE1/2048)

I 22:52:38 Source File Size: 25,025,314,816 bytes

I 22:52:38 Source File Volume Identifier: DISCOVERY_IMAGE

I 22:52:38 Source File File System(s): None

I 22:52:38 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:52:38 Destination Media Type: BD-R (Disc ID: VERBAT-IMw-00) (Speeds: 2x)

I 22:52:38 Destination Media Sectors: 12,219,392

I 22:52:38 Write Mode: BD

I 22:52:38 Write Type: DAO

I 22:52:38 Write Speed: 2x

I 22:52:38 BD-R Verify Not Required: Yes

I 22:52:38 Link Size: Auto

I 22:52:38 Lock Volume: Yes

I 22:52:38 Test Mode: No

I 22:52:38 OPC: No

I 22:52:38 BURN-Proof: Enabled

I 22:52:38 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 22:52:38 Advanced Settings - Optimal Writing Speed: No

I 22:52:38 Filling Buffer... (40 MB)

I 22:52:38 Writing LeadIn...

I 22:52:58 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:52:58 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:39:36 Synchronising Cache...

I 23:39:37 Closing Track...

I 23:39:38 Finalising Disc...

I 23:39:47 Exporting Graph Data...

I 23:39:47 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_27-OCTOBER-2010_22-52_VERBAT-IMw-00_2x.ibg

I 23:39:47 Export Successfully Completed!

I 23:39:47 Operation Successfully Completed! - Duration: 00:47:08

I 23:39:47 Average Write Rate: 8,734 KB/s (1.9x) - Maximum Write Rate: 9,033 KB/s (2.0x)

I 23:39:47 Cycling Tray before Verify...

I 23:40:07 Device Ready!

I 23:40:07 Operation Started!

I 23:40:08 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:40:08 Source Media Type: BD-R (Disc ID: VERBAT-IMw-00) (Speeds: 2x)

I 23:40:08 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:40:08 Image File Sectors: 12,219,392 (MODE1/2048)

I 23:40:08 Image File Size: 25,025,314,816 bytes

I 23:40:08 Image File Volume Identifier: DISCOVERY_IMAGE

I 23:40:08 Image File File System(s): None

I 23:40:08 Read Speed (Data/Audio): MAX / MAX

I 23:40:08 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:40:08 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:01:53 Exporting Graph Data...

I 00:01:53 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_27-OCTOBER-2010_22-52_VERBAT-IMw-00_2x.ibg

I 00:01:53 Export Successfully Completed!

I 00:01:53 Operation Successfully Completed! - Duration: 00:21:45

I 00:01:53 Average Verify Rate: 18,741 KB/s (4.2x) - Maximum Verify Rate: 27,217 KB/s (6.1x)

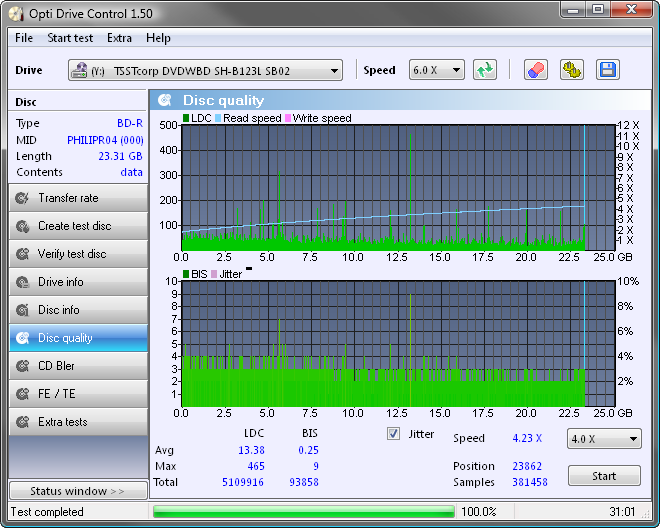

Scans:









I was unable to scan with the 'TSSTcorp DVDWBD SH-B123L SB02' drive because it failed to initialise the disc.

Share this post


Link to post
Share on other sites

Traxdata 4x BD-R [RITEK-BR2-00] @ 4x



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: RITEK-BR2-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 14:59:21 ImgBurn Version 2.5.3.0 started!

I 14:59:21 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 14:59:21 Total Physical Memory: 3,143,248 KB - Available: 1,173,732 KB

I 14:59:21 Initialising SPTI...

I 14:59:21 Searching for SCSI / ATAPI devices...

I 14:59:22 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 14:59:22 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 14:59:22 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 14:59:22 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 14:59:22 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 14:59:22 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:59:22 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 14:59:22 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 14:59:22 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 14:59:23 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 14:59:23 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:59:23 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 14:59:23 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 14:59:42 Operation Started!

I 14:59:42 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 14:59:42 Source File Sectors: 12,219,392 (MODE1/2048)

I 14:59:42 Source File Size: 25,025,314,816 bytes

I 14:59:42 Source File Volume Identifier: DISCOVERY_IMAGE

I 14:59:42 Source File File System(s): None

I 14:59:42 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:59:42 Destination Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 14:59:42 Destination Media Sectors: 12,219,392

I 14:59:42 Write Mode: BD

I 14:59:42 Write Type: DAO

I 14:59:42 Write Speed: 4x

I 14:59:42 BD-R Verify Not Required: Yes

I 14:59:42 Link Size: Auto

I 14:59:42 Lock Volume: Yes

I 14:59:42 Test Mode: No

I 14:59:42 OPC: No

I 14:59:42 BURN-Proof: Enabled

I 14:59:42 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 14:59:42 Advanced Settings - Optimal Writing Speed: No

I 14:59:42 Filling Buffer... (40 MB)

I 14:59:42 Writing LeadIn...

I 15:00:02 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 15:00:02 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 15:23:27 Synchronising Cache...

I 15:23:28 Closing Track...

I 15:23:29 Finalising Disc...

I 15:23:38 Exporting Graph Data...

I 15:23:38 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_29-OCTOBER-2010_14-59_RITEK-BR2-00_4x.ibg

I 15:23:38 Export Successfully Completed!

I 15:23:39 Operation Successfully Completed! - Duration: 00:23:56

I 15:23:39 Average Write Rate: 17,406 KB/s (3.9x) - Maximum Write Rate: 18,055 KB/s (4.0x)

I 15:23:39 Cycling Tray before Verify...

I 15:23:56 Device Ready!

I 15:23:57 Operation Started!

I 15:23:57 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:23:57 Source Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 15:23:57 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 15:23:57 Image File Sectors: 12,219,392 (MODE1/2048)

I 15:23:57 Image File Size: 25,025,314,816 bytes

I 15:23:57 Image File Volume Identifier: DISCOVERY_IMAGE

I 15:23:57 Image File File System(s): None

I 15:23:57 Read Speed (Data/Audio): MAX / MAX

I 15:23:57 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 15:23:57 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 15:40:25 Exporting Graph Data...

I 15:40:25 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_29-OCTOBER-2010_14-59_RITEK-BR2-00_4x.ibg

I 15:40:25 Export Successfully Completed!

I 15:40:25 Operation Successfully Completed! - Duration: 00:16:28

I 15:40:25 Average Verify Rate: 24,735 KB/s (5.5x) - Maximum Verify Rate: 36,118 KB/s (8.0x)

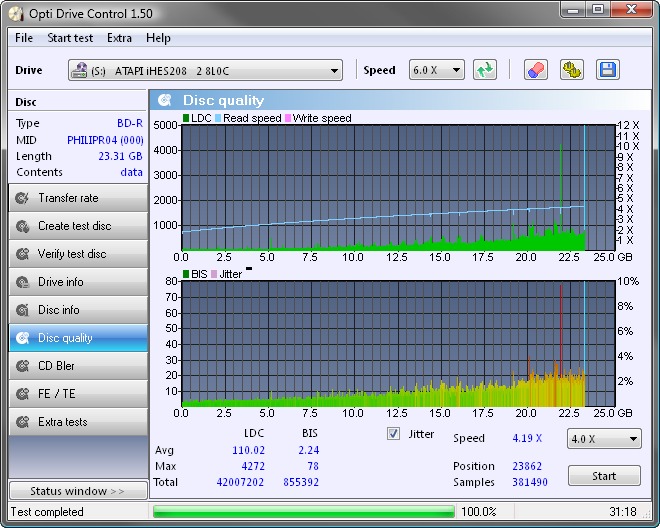

Scans:










Share this post


Link to post
Share on other sites

Maxell 4x BD-R [RITEK-BR2-00] @ 4x



Maxell EU:ITEM 276072 - Made in Taiwan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: RITEK-BR2-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 14:44:06 ImgBurn Version 2.5.3.0 started!

I 14:44:06 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 14:44:06 Total Physical Memory: 3,143,248 KB - Available: 826,120 KB

I 14:44:06 Initialising SPTI...

I 14:44:06 Searching for SCSI / ATAPI devices...

I 14:44:07 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 14:44:07 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 14:44:07 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 14:44:07 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 14:44:07 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 14:44:07 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 14:44:07 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 14:44:07 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 14:44:07 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 14:44:07 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 14:44:07 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:44:07 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 14:44:07 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 14:44:17 Operation Started!

I 14:44:17 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 14:44:17 Source File Sectors: 12,219,392 (MODE1/2048)

I 14:44:17 Source File Size: 25,025,314,816 bytes

I 14:44:17 Source File Volume Identifier: DISCOVERY_IMAGE

I 14:44:17 Source File File System(s): None

I 14:44:17 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 14:44:17 Destination Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 14:44:17 Destination Media Sectors: 12,219,392

I 14:44:17 Write Mode: BD

I 14:44:17 Write Type: DAO

I 14:44:17 Write Speed: 4x

I 14:44:17 BD-R Verify Not Required: Yes

I 14:44:17 Link Size: Auto

I 14:44:17 Lock Volume: Yes

I 14:44:17 Test Mode: No

I 14:44:17 OPC: No

I 14:44:17 BURN-Proof: Enabled

I 14:44:17 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 14:44:17 Advanced Settings - Optimal Writing Speed: No

I 14:44:17 Filling Buffer... (40 MB)

I 14:44:17 Writing LeadIn...

I 14:44:36 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 14:44:36 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 15:08:01 Synchronising Cache...

I 15:08:02 Closing Track...

I 15:08:03 Finalising Disc...

I 15:08:12 Exporting Graph Data...

I 15:08:12 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_30-OCTOBER-2010_14-44_RITEK-BR2-00_4x.ibg

I 15:08:12 Export Successfully Completed!

I 15:08:12 Operation Successfully Completed! - Duration: 00:23:55

I 15:08:12 Average Write Rate: 17,406 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 15:08:12 Cycling Tray before Verify...

I 15:08:29 Device Ready!

I 15:08:30 Operation Started!

I 15:08:30 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:08:30 Source Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 15:08:30 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 15:08:30 Image File Sectors: 12,219,392 (MODE1/2048)

I 15:08:30 Image File Size: 25,025,314,816 bytes

I 15:08:30 Image File Volume Identifier: DISCOVERY_IMAGE

I 15:08:30 Image File File System(s): None

I 15:08:30 Read Speed (Data/Audio): MAX / MAX

I 15:08:30 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 15:08:30 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 15:24:55 Exporting Graph Data...

I 15:24:55 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_30-OCTOBER-2010_14-44_RITEK-BR2-00_4x.ibg

I 15:24:55 Export Successfully Completed!

I 15:24:55 Operation Successfully Completed! - Duration: 00:16:25

I 15:24:55 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,132 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Mirror 4x BD-R [PHILIP-R04-00] @ 4x



Mirror Re-order: 70810X10P



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: PHILIP-R04-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 23:31:07 ImgBurn Version 2.5.3.0 started!

I 23:31:07 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 23:31:07 Total Physical Memory: 3,143,248 KB - Available: 944,528 KB

I 23:31:07 Initialising SPTI...

I 23:31:07 Searching for SCSI / ATAPI devices...

I 23:31:08 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 23:31:08 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 23:31:08 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 23:31:08 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 23:31:08 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 23:31:08 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:31:08 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 23:31:08 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 23:31:08 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 23:31:08 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 23:31:09 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:31:09 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 23:31:09 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 23:31:31 Operation Started!

I 23:31:31 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:31:31 Source File Sectors: 12,219,392 (MODE1/2048)

I 23:31:31 Source File Size: 25,025,314,816 bytes

I 23:31:31 Source File Volume Identifier: DISCOVERY_IMAGE

I 23:31:31 Source File File System(s): None

I 23:31:31 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:31:31 Destination Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 23:31:31 Destination Media Sectors: 12,219,392

I 23:31:31 Write Mode: BD

I 23:31:31 Write Type: DAO

I 23:31:31 Write Speed: 4x

I 23:31:31 BD-R Verify Not Required: Yes

I 23:31:31 Link Size: Auto

I 23:31:31 Lock Volume: Yes

I 23:31:31 Test Mode: No

I 23:31:31 OPC: No

I 23:31:31 BURN-Proof: Enabled

I 23:31:31 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 23:31:31 Advanced Settings - Optimal Writing Speed: No

I 23:31:31 Filling Buffer... (40 MB)

I 23:31:31 Writing LeadIn...

I 23:31:51 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:31:51 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:55:18 Synchronising Cache...

I 23:55:20 Closing Track...

I 23:55:21 Finalising Disc...

I 23:55:30 Exporting Graph Data...

I 23:55:30 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_30-OCTOBER-2010_23-31_PHILIP-R04-00_4x.ibg

I 23:55:30 Export Successfully Completed!

I 23:55:30 Operation Successfully Completed! - Duration: 00:23:58

I 23:55:30 Average Write Rate: 17,369 KB/s (3.9x) - Maximum Write Rate: 18,058 KB/s (4.0x)

I 23:55:30 Cycling Tray before Verify...

I 23:55:49 Device Ready!

I 23:55:49 Operation Started!

I 23:55:49 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:55:49 Source Media Type: BD-R (Disc ID: PHILIP-R04-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 23:55:49 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:55:49 Image File Sectors: 12,219,392 (MODE1/2048)

I 23:55:49 Image File Size: 25,025,314,816 bytes

I 23:55:49 Image File Volume Identifier: DISCOVERY_IMAGE

I 23:55:49 Image File File System(s): None

I 23:55:49 Read Speed (Data/Audio): MAX / MAX

I 23:55:49 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:55:49 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 00:12:13 Exporting Graph Data...

I 00:12:13 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_30-OCTOBER-2010_23-31_PHILIP-R04-00_4x.ibg

I 00:12:13 Export Successfully Completed!

I 00:12:13 Operation Successfully Completed! - Duration: 00:16:24

I 00:12:13 Average Verify Rate: 24,861 KB/s (5.5x) - Maximum Verify Rate: 36,132 KB/s (8.0x)



Scans:













Share this post


Link to post
Share on other sites

RiDisc 4x BD-R [CMCMAG-BA3-00] @ 4x



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: CMCMAG-BA3-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 19:13:39 ImgBurn Version 2.5.3.0 started!

I 19:13:39 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 19:13:39 Total Physical Memory: 3,143,248 KB - Available: 943,528 KB

I 19:13:39 Initialising SPTI...

I 19:13:39 Searching for SCSI / ATAPI devices...

I 19:13:39 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 19:13:39 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 19:13:39 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 19:13:40 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 19:13:40 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 19:13:40 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 19:13:40 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 19:13:40 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 19:13:40 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 19:13:40 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 19:13:40 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 19:13:40 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 19:13:40 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 19:13:46 Operation Started!

I 19:13:46 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 19:13:46 Source File Sectors: 12,219,392 (MODE1/2048)

I 19:13:46 Source File Size: 25,025,314,816 bytes

I 19:13:46 Source File Volume Identifier: DISCOVERY_IMAGE

I 19:13:46 Source File File System(s): None

I 19:13:46 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 19:13:46 Destination Media Type: BD-R (Disc ID: CMCMAG-BA3-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 19:13:46 Destination Media Sectors: 12,219,392

I 19:13:46 Write Mode: BD

I 19:13:46 Write Type: DAO

I 19:13:46 Write Speed: 4x

I 19:13:46 BD-R Verify Not Required: Yes

I 19:13:46 Link Size: Auto

I 19:13:46 Lock Volume: Yes

I 19:13:46 Test Mode: No

I 19:13:46 OPC: No

I 19:13:46 BURN-Proof: Enabled

I 19:13:46 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 19:13:46 Advanced Settings - Optimal Writing Speed: No

I 19:13:47 Filling Buffer... (40 MB)

I 19:13:47 Writing LeadIn...

I 19:14:07 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 19:14:07 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 19:37:31 Synchronising Cache...

I 19:37:32 Closing Track...

I 19:37:33 Finalising Disc...

I 19:37:42 Exporting Graph Data...

I 19:37:42 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_02-NOVEMBER-2010_19-13_CMCMAG-BA3-00_4x.ibg

I 19:37:42 Export Successfully Completed!

I 19:37:42 Operation Successfully Completed! - Duration: 00:23:55

I 19:37:42 Average Write Rate: 17,406 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 19:37:42 Cycling Tray before Verify...

I 19:38:00 Device Ready!

I 19:38:00 Operation Started!

I 19:38:00 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 19:38:00 Source Media Type: BD-R (Disc ID: CMCMAG-BA3-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 19:38:00 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 19:38:00 Image File Sectors: 12,219,392 (MODE1/2048)

I 19:38:00 Image File Size: 25,025,314,816 bytes

I 19:38:00 Image File Volume Identifier: DISCOVERY_IMAGE

I 19:38:00 Image File File System(s): None

I 19:38:00 Read Speed (Data/Audio): MAX / MAX

I 19:38:00 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 19:38:00 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 19:54:24 Exporting Graph Data...

I 19:54:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_02-NOVEMBER-2010_19-13_CMCMAG-BA3-00_4x.ibg

I 19:54:24 Export Successfully Completed!

I 19:54:24 Operation Successfully Completed! - Duration: 00:16:23

I 19:54:24 Average Verify Rate: 24,861 KB/s (5.5x) - Maximum Verify Rate: 36,164 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Sumvision 4x BD-R [RITEK-BR2-00] @ 4x



Sumvision - Made in Taiwan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x, 6x, 8x, 10x



BD Disc Information:

Disc ID: RITEK-BR2-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Positive

Recorded Mark Polarity: HTL

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)

Descriptor 3...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 26,970 KB/s (6x) - WS: 26,970 KB/s (6x)

Descriptor 4...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 35,960 KB/s (8x) - WS: 35,960 KB/s (8x)

Descriptor 5...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 44,950 KB/s (10x) - WS: 44,950 KB/s (10x)



Results:

I 11:51:01 ImgBurn Version 2.5.3.0 started!

I 11:51:01 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 11:51:01 Total Physical Memory: 3,143,248 KB - Available: 1,052,092 KB

I 11:51:01 Initialising SPTI...

I 11:51:01 Searching for SCSI / ATAPI devices...

I 11:51:01 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 11:51:01 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 11:51:01 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 11:51:01 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 11:51:01 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 11:51:01 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 11:51:02 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 11:51:02 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 11:51:02 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 11:51:02 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 11:51:02 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:51:02 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 11:51:02 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 11:51:08 Operation Started!

I 11:51:08 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 11:51:08 Source File Sectors: 12,219,392 (MODE1/2048)

I 11:51:08 Source File Size: 25,025,314,816 bytes

I 11:51:08 Source File Volume Identifier: DISCOVERY_IMAGE

I 11:51:08 Source File File System(s): None

I 11:51:08 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:51:08 Destination Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 11:51:08 Destination Media Sectors: 12,219,392

I 11:51:08 Write Mode: BD

I 11:51:08 Write Type: DAO

I 11:51:08 Write Speed: 4x

I 11:51:08 BD-R Verify Not Required: Yes

I 11:51:08 Link Size: Auto

I 11:51:08 Lock Volume: Yes

I 11:51:08 Test Mode: No

I 11:51:08 OPC: No

I 11:51:08 BURN-Proof: Enabled

I 11:51:08 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 11:51:08 Advanced Settings - Optimal Writing Speed: No

I 11:51:08 Filling Buffer... (40 MB)

I 11:51:08 Writing LeadIn...

I 11:51:28 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 11:51:28 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 12:14:52 Synchronising Cache...

I 12:14:53 Closing Track...

I 12:14:54 Finalising Disc...

I 12:15:03 Exporting Graph Data...

I 12:15:03 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_03-NOVEMBER-2010_11-51_RITEK-BR2-00_4x.ibg

I 12:15:03 Export Successfully Completed!

I 12:15:03 Operation Successfully Completed! - Duration: 00:23:55

I 12:15:03 Average Write Rate: 17,418 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 12:15:03 Cycling Tray before Verify...

I 12:15:21 Device Ready!

I 12:15:21 Operation Started!

I 12:15:21 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:15:21 Source Media Type: BD-R (Disc ID: RITEK-BR2-00) (Speeds: 2x, 4x, 6x, 8x, 10x)

I 12:15:21 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:15:21 Image File Sectors: 12,219,392 (MODE1/2048)

I 12:15:21 Image File Size: 25,025,314,816 bytes

I 12:15:21 Image File Volume Identifier: DISCOVERY_IMAGE

I 12:15:21 Image File File System(s): None

I 12:15:21 Read Speed (Data/Audio): MAX / MAX

I 12:15:21 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:15:21 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 12:31:47 Exporting Graph Data...

I 12:31:47 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_03-NOVEMBER-2010_11-51_RITEK-BR2-00_4x.ibg

I 12:31:47 Export Successfully Completed!

I 12:31:47 Operation Successfully Completed! - Duration: 00:16:25

I 12:31:47 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,099 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 4x LTH BD-R [VERBAT-IMv-00] @ 4x



Verbatim - Part Number: VLR130YP20SV1 - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x



BD Disc Information:

Disc ID: VERBAT-IMv-00

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Negative

Recorded Mark Polarity: LTH

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)



Results:

I 20:20:48 ImgBurn Version 2.5.3.0 started!

I 20:20:48 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 20:20:48 Total Physical Memory: 3,143,248 KB - Available: 1,040,304 KB

I 20:20:48 Initialising SPTI...

I 20:20:48 Searching for SCSI / ATAPI devices...

I 20:20:48 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 20:20:48 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 20:20:48 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.01 (Q:) (ATA)

I 20:20:49 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 20:20:49 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 20:20:49 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:20:49 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 20:20:49 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 20:20:49 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 20:20:49 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 20:20:49 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:20:49 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 20:20:49 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 20:20:53 Operation Started!

I 20:20:53 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:20:53 Source File Sectors: 12,219,392 (MODE1/2048)

I 20:20:53 Source File Size: 25,025,314,816 bytes

I 20:20:53 Source File Volume Identifier: DISCOVERY_IMAGE

I 20:20:53 Source File File System(s): None

I 20:20:53 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:20:53 Destination Media Type: BD-R (Disc ID: VERBAT-IMv-00) (Speeds: 2x, 4x)

I 20:20:53 Destination Media Sectors: 12,219,392

I 20:20:53 Write Mode: BD

I 20:20:53 Write Type: DAO

I 20:20:53 Write Speed: 4x

I 20:20:53 BD-R Verify Not Required: Yes

I 20:20:53 Link Size: Auto

I 20:20:53 Lock Volume: Yes

I 20:20:53 Test Mode: No

I 20:20:53 OPC: No

I 20:20:53 BURN-Proof: Enabled

I 20:20:53 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 20:20:53 Advanced Settings - Optimal Writing Speed: No

I 20:20:54 Filling Buffer... (40 MB)

I 20:20:54 Writing LeadIn...

I 20:21:15 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:21:15 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 20:44:41 Synchronising Cache...

I 20:44:42 Closing Track...

I 20:44:43 Finalising Disc...

I 20:44:52 Exporting Graph Data...

I 20:44:53 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_03-NOVEMBER-2010_20-20_VERBAT-IMv-00_4x.ibg

I 20:44:53 Export Successfully Completed!

I 20:44:53 Operation Successfully Completed! - Duration: 00:23:59

I 20:44:53 Average Write Rate: 17,381 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 20:44:53 Cycling Tray before Verify...

I 20:45:13 Device Ready!

I 20:45:14 Operation Started!

I 20:45:14 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:45:14 Source Media Type: BD-R (Disc ID: VERBAT-IMv-00) (Speeds: 2x, 4x)

I 20:45:14 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:45:14 Image File Sectors: 12,219,392 (MODE1/2048)

I 20:45:14 Image File Size: 25,025,314,816 bytes

I 20:45:14 Image File Volume Identifier: DISCOVERY_IMAGE

I 20:45:14 Image File File System(s): None

I 20:45:14 Read Speed (Data/Audio): MAX / MAX

I 20:45:14 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 20:45:14 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 21:06:58 Exporting Graph Data...

I 21:06:58 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_03-NOVEMBER-2010_20-20_VERBAT-IMv-00_4x.ibg

I 21:06:58 Export Successfully Completed!

I 21:06:58 Operation Successfully Completed! - Duration: 00:21:44

I 21:06:58 Average Verify Rate: 18,741 KB/s (4.2x) - Maximum Verify Rate: 27,204 KB/s (6.1x)






Scans:









I was unable to scan with the 'TSSTcorp DVDWBD SH-B123L SB02' drive because it failed to initialise the disc.

Share this post


Link to post
Share on other sites

Victor JVC 4x LTH BD-R [TYG-BD-Y03-01] @ 4x



Victor JVC - Part Number: BV-R130FS20



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-R



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: No

Free Sectors: 12,219,392

Free Space: 25,025,314,816 bytes

Free Time: 2715:27:17 (MM:SS:FF)

Next Writable Address: 0

Supported Write Speeds: 2x, 4x



BD Disc Information:

Disc ID: TYG-BD-Y03-01

Disc Type: BD-R

Disc Size: 120mm

Disc Class: 0

Disc Version: 1

Number of Layers: 1

Layer Type: Writable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

Push-Pull Polarity: Negative

Recorded Mark Polarity: LTH

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)

Descriptor 2...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 17,980 KB/s (4x) - WS: 17,980 KB/s (4x)



Results:

I 21:49:55 ImgBurn Version 2.5.3.0 started!

I 21:49:55 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:49:55 Total Physical Memory: 3,143,248 KB - Available: 857,972 KB

I 21:49:55 Initialising SPTI...

I 21:49:55 Searching for SCSI / ATAPI devices...

I 21:49:58 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:49:58 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:49:58 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 21:49:59 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:49:59 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:49:59 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:49:59 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:49:59 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:49:59 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:49:59 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:49:59 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:49:59 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:49:59 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:50:11 Operation Started!

I 21:50:11 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:50:11 Source File Sectors: 12,219,392 (MODE1/2048)

I 21:50:11 Source File Size: 25,025,314,816 bytes

I 21:50:11 Source File Volume Identifier: DISCOVERY_IMAGE

I 21:50:11 Source File File System(s): None

I 21:50:11 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:50:11 Destination Media Type: BD-R (Disc ID: TYG-BD-Y03-01) (Speeds: 2x, 4x)

I 21:50:11 Destination Media Sectors: 12,219,392

I 21:50:11 Write Mode: BD

I 21:50:11 Write Type: DAO

I 21:50:11 Write Speed: 4x

I 21:50:11 BD-R Verify Not Required: Yes

I 21:50:11 Link Size: Auto

I 21:50:11 Lock Volume: Yes

I 21:50:11 Test Mode: No

I 21:50:11 OPC: No

I 21:50:11 BURN-Proof: Enabled

I 21:50:11 Write Speed Successfully Set! - Effective: 17,980 KB/s (4x)

I 21:50:11 Advanced Settings - Optimal Writing Speed: No

I 21:50:12 Filling Buffer... (40 MB)

I 21:50:12 Writing LeadIn...

I 21:50:33 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 21:50:33 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:13:57 Synchronising Cache...

I 22:13:58 Closing Track...

I 22:13:59 Finalising Disc...

I 22:14:08 Exporting Graph Data...

I 22:14:08 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_05-NOVEMBER-2010_21-50_TYG-BD-Y03-01_4x.ibg

I 22:14:08 Export Successfully Completed!

I 22:14:08 Operation Successfully Completed! - Duration: 00:23:56

I 22:14:08 Average Write Rate: 17,418 KB/s (3.9x) - Maximum Write Rate: 18,049 KB/s (4.0x)

I 22:14:08 Cycling Tray before Verify...

I 22:14:28 Device Ready!

I 22:14:29 Operation Started!

I 22:14:29 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:14:29 Source Media Type: BD-R (Disc ID: TYG-BD-Y03-01) (Speeds: 2x, 4x)

I 22:14:29 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:14:29 Image File Sectors: 12,219,392 (MODE1/2048)

I 22:14:29 Image File Size: 25,025,314,816 bytes

I 22:14:29 Image File Volume Identifier: DISCOVERY_IMAGE

I 22:14:29 Image File File System(s): None

I 22:14:29 Read Speed (Data/Audio): MAX / MAX

I 22:14:29 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:14:29 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:36:12 Exporting Graph Data...

I 22:36:12 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_05-NOVEMBER-2010_21-50_TYG-BD-Y03-01_4x.ibg

I 22:36:12 Export Successfully Completed!

I 22:36:12 Operation Successfully Completed! - Duration: 00:21:43

I 22:36:12 Average Verify Rate: 18,755 KB/s (4.2x) - Maximum Verify Rate: 27,250 KB/s (6.1x)






Scans:









I was unable to scan with the 'TSSTcorp DVDWBD SH-B123L SB02' drive because it failed to initialise the disc.

Share this post


Link to post
Share on other sites

Maxell 2x BD-RE [RITEK-BW1-01] @ 2x



Maxell - Item Number: 58704100 - BDRE25.MEL.1P - Made in Taiwan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: RITEK-BW1-01

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 21:11:53 ImgBurn Version 2.5.3.0 started!

I 21:11:53 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 21:11:53 Total Physical Memory: 3,143,248 KB - Available: 940,216 KB

I 21:11:53 Initialising SPTI...

I 21:11:53 Searching for SCSI / ATAPI devices...

I 21:11:53 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 21:11:53 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 21:11:53 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (H:) (ATA)

I 21:11:54 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 21:11:54 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 21:11:54 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 21:11:54 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 21:11:54 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 21:11:54 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 21:11:54 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 21:11:54 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:11:54 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 21:11:54 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 21:12:05 Operation Started!

I 21:12:05 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:12:05 Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 21:12:05 Quick Erase: No

I 21:12:05 Format Properly: Yes

I 21:12:05 Format Size: Preferred

I 21:12:05 Format With Full Certification: Yes

I 21:12:05 Format Without Spare Areas: Yes

I 21:12:05 Erasing Disc...

W 21:12:05 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 21:12:05 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 21:12:24 Operation Successfully Completed! - Duration: 00:00:19

I 21:12:24 Operation Started!

I 21:12:24 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:12:24 Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 21:12:24 Media Sectors: 12,219,392

I 21:12:24 BD-RE FastWrite: No

I 21:12:24 Zeroing Sectors...

I 21:59:02 Synchronising Cache...

I 21:59:02 Operation Successfully Completed! - Duration: 00:46:37 - Total Duration: 00:46:57

I 21:59:02 Average Write Rate: 8,737 KB/s (1.9x)



Results:

I 22:12:50 ImgBurn Version 2.5.3.0 started!

I 22:12:50 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 22:12:50 Total Physical Memory: 3,143,248 KB - Available: 1,182,216 KB

I 22:12:50 Initialising SPTI...

I 22:12:50 Searching for SCSI / ATAPI devices...

I 22:12:50 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 22:12:50 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 22:12:50 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (H:) (ATA)

I 22:12:51 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 22:12:51 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 22:12:51 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 22:12:51 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 22:12:51 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 22:12:51 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 22:12:51 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 22:12:51 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:12:52 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 22:12:52 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 22:13:03 Operation Started!

I 22:13:03 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 22:13:03 Source File Sectors: 12,219,392 (MODE1/2048)

I 22:13:03 Source File Size: 25,025,314,816 bytes

I 22:13:03 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 22:13:03 Source File File System(s): None

I 22:13:03 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 22:13:03 Destination Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 22:13:03 Destination Media Sectors: 12,219,392

I 22:13:03 Write Mode: BD

I 22:13:03 Write Type: DAO

I 22:13:03 Write Speed: 2x

I 22:13:03 BD-RE FastWrite: No

I 22:13:03 Link Size: Auto

I 22:13:03 Lock Volume: Yes

I 22:13:03 Test Mode: No

I 22:13:03 OPC: No

I 22:13:03 BURN-Proof: Enabled

I 22:13:03 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 22:13:03 Advanced Settings - Optimal Writing Speed: No

I 22:13:03 Filling Buffer... (40 MB)

I 22:13:04 Writing LeadIn...

I 22:13:04 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 22:13:04 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 22:59:40 Synchronising Cache...

I 22:59:41 Exporting Graph Data...

I 22:59:41 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_06-NOVEMBER-2010_22-13_RITEK-BW1-01_2x.ibg

I 22:59:41 Export Successfully Completed!

I 22:59:41 Operation Successfully Completed! - Duration: 00:46:38

I 22:59:41 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,042 KB/s (2.0x)

I 22:59:41 Cycling Tray before Verify...

I 23:00:00 Device Ready!

I 23:00:01 Operation Started!

I 23:00:01 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:00:01 Source Media Type: BD-RE (Disc ID: RITEK-BW1-01) (Speeds: 2x)

I 23:00:01 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 23:00:01 Image File Sectors: 12,219,392 (MODE1/2048)

I 23:00:01 Image File Size: 25,025,314,816 bytes

I 23:00:01 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 23:00:01 Image File File System(s): None

I 23:00:01 Read Speed (Data/Audio): MAX / MAX

I 23:00:01 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 23:00:01 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 23:16:26 Exporting Graph Data...

I 23:16:26 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_06-NOVEMBER-2010_22-13_RITEK-BW1-01_2x.ibg

I 23:16:26 Export Successfully Completed!

I 23:16:26 Operation Successfully Completed! - Duration: 00:16:25

I 23:16:26 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,149 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Panasonic 2x BD-RE [MEI-T01-01] @ 2x



Panasonic - Part Number: LM-BEU25AE - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Complete

State of Last Session: Complete

Erasable: Yes

Sessions: 1

Sectors: 11,826,176

Size: 24,220,008,448 bytes

Time: 2628:04:26 (MM:SS:FF)

Supported Write Speeds: 2x



TOC Information:

Session 1... (LBA: 0)

-> Track 01 (Mode 1, LBA: 0 - 11826175)

-> LeadOut (LBA: 11826176)



BD Disc Information:

Disc ID: MEI-T01-01

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Disc Time Stamp: 12/2005

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x02 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 11826175 (0x00B473FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 23:11:42 ImgBurn Version 2.5.3.0 started!

I 23:11:42 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 23:11:42 Total Physical Memory: 3,143,248 KB - Available: 935,204 KB

I 23:11:42 Initialising SPTI...

I 23:11:42 Searching for SCSI / ATAPI devices...

I 23:11:42 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 23:11:43 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 23:11:43 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (H:) (ATA)

I 23:11:43 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 23:11:43 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 23:11:43 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 23:11:43 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 23:11:43 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 23:11:43 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 23:11:43 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 23:11:43 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:11:43 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 23:11:43 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 23:11:57 Operation Started!

I 23:11:57 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:11:57 Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 23:11:57 Quick Erase: No

I 23:11:57 Format Properly: Yes

I 23:11:57 Format Size: Preferred

I 23:11:57 Format With Full Certification: Yes

I 23:11:57 Format Without Spare Areas: Yes

I 23:11:57 Erasing Disc...

W 23:11:57 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 23:11:57 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 23:12:16 Operation Successfully Completed! - Duration: 00:00:19

I 23:12:16 Operation Started!

I 23:12:16 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 23:12:16 Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 23:12:16 Media Sectors: 12,219,392

I 23:12:16 BD-RE FastWrite: No

I 23:12:16 Zeroing Sectors...

I 23:58:54 Synchronising Cache...

I 23:58:54 Operation Successfully Completed! - Duration: 00:46:38 - Total Duration: 00:46:57

I 23:58:54 Average Write Rate: 8,734 KB/s (1.9x)



Results:

I 09:15:49 ImgBurn Version 2.5.3.0 started!

I 09:15:49 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 09:15:49 Total Physical Memory: 3,143,248 KB - Available: 938,132 KB

I 09:15:49 Initialising SPTI...

I 09:15:49 Searching for SCSI / ATAPI devices...

I 09:15:49 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 09:15:49 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 09:15:49 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (H:) (ATA)

I 09:15:50 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 09:15:50 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 09:15:50 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 09:15:50 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 09:15:50 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 09:15:50 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 09:15:50 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 09:15:50 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 09:15:50 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 09:15:50 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 09:16:52 Operation Started!

I 09:16:52 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 09:16:52 Source File Sectors: 12,219,392 (MODE1/2048)

I 09:16:52 Source File Size: 25,025,314,816 bytes

I 09:16:52 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 09:16:52 Source File File System(s): None

I 09:16:52 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 09:16:52 Destination Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 09:16:52 Destination Media Sectors: 12,219,392

I 09:16:52 Write Mode: BD

I 09:16:52 Write Type: DAO

I 09:16:52 Write Speed: 2x

I 09:16:52 BD-RE FastWrite: No

I 09:16:52 Link Size: Auto

I 09:16:52 Lock Volume: Yes

I 09:16:52 Test Mode: No

I 09:16:52 OPC: No

I 09:16:52 BURN-Proof: Enabled

I 09:16:52 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 09:16:52 Advanced Settings - Optimal Writing Speed: No

I 09:16:53 Filling Buffer... (40 MB)

I 09:16:53 Writing LeadIn...

I 09:16:53 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 09:16:53 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 10:03:30 Synchronising Cache...

I 10:03:31 Exporting Graph Data...

I 10:03:31 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_09-NOVEMBER-2010_09-16_MEI-T01-01_2x.ibg

I 10:03:31 Export Successfully Completed!

I 10:03:31 Operation Successfully Completed! - Duration: 00:46:38

I 10:03:31 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,041 KB/s (2.0x)

I 10:03:31 Cycling Tray before Verify...

I 10:03:49 Device Ready!

I 10:03:50 Operation Started!

I 10:03:50 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 10:03:50 Source Media Type: BD-RE (Disc ID: MEI-T01-01) (Speeds: 2x)

I 10:03:50 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 10:03:50 Image File Sectors: 12,219,392 (MODE1/2048)

I 10:03:50 Image File Size: 25,025,314,816 bytes

I 10:03:50 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 10:03:50 Image File File System(s): None

I 10:03:50 Read Speed (Data/Audio): MAX / MAX

I 10:03:50 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 10:03:50 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 10:20:16 Exporting Graph Data...

I 10:20:16 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_09-NOVEMBER-2010_09-16_MEI-T01-01_2x.ibg

I 10:20:16 Export Successfully Completed!

I 10:20:16 Operation Successfully Completed! - Duration: 00:16:26

I 10:20:16 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,117 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Sony 2x BD-RE [sONY-ES1-02] @ 2x



Sony - Part Number: BNE25BS2 - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: SONY-ES1-02

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 00:18:19 ImgBurn Version 2.5.3.0 started!

I 00:18:19 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 00:18:19 Total Physical Memory: 3,143,248 KB - Available: 1,086,412 KB

I 00:18:19 Initialising SPTI...

I 00:18:19 Searching for SCSI / ATAPI devices...

I 00:18:19 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 00:18:19 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 00:18:19 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 00:18:19 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 00:18:19 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 00:18:20 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 00:18:20 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 00:18:20 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 00:18:20 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 00:18:20 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 00:18:20 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 00:18:20 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 00:18:20 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 00:18:26 Operation Started!

I 00:18:26 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 00:18:26 Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 00:18:26 Quick Erase: No

I 00:18:26 Format Properly: Yes

I 00:18:26 Format Size: Preferred

I 00:18:26 Format With Full Certification: Yes

I 00:18:26 Format Without Spare Areas: Yes

I 00:18:26 Erasing Disc...

W 00:18:26 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 00:18:26 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 00:18:45 Operation Successfully Completed! - Duration: 00:00:19

I 00:18:45 Operation Started!

I 00:18:45 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 00:18:45 Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 00:18:45 Media Sectors: 12,219,392

I 00:18:45 BD-RE FastWrite: No

I 00:18:45 Zeroing Sectors...

I 01:05:23 Synchronising Cache...

I 01:05:23 Operation Successfully Completed! - Duration: 00:46:38 - Total Duration: 00:46:57

I 01:05:23 Average Write Rate: 8,734 KB/s (1.9x)



Results:

I 09:14:31 ImgBurn Version 2.5.3.0 started!

I 09:14:31 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 09:14:31 Total Physical Memory: 3,143,248 KB - Available: 936,956 KB

I 09:14:31 Initialising SPTI...

I 09:14:31 Searching for SCSI / ATAPI devices...

I 09:14:31 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 09:14:31 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 09:14:31 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 09:14:32 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 09:14:32 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 09:14:32 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 09:14:32 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 09:14:32 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 09:14:32 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (W:) (SCSI)

I 09:14:32 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 09:14:32 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 09:14:32 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 09:14:32 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 2 BD-ROM/HD DVD-ROMs, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 09:15:27 Operation Started!

I 09:15:27 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 09:15:27 Source File Sectors: 12,219,392 (MODE1/2048)

I 09:15:27 Source File Size: 25,025,314,816 bytes

I 09:15:27 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 09:15:27 Source File Volume Set Identifier: 12219392_SECTORS

I 09:15:27 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 09:15:27 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 09:15:27 Source File File System(s): ISO9660

I 09:15:27 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 09:15:27 Destination Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 09:15:27 Destination Media Sectors: 12,219,392

I 09:15:27 Write Mode: BD

I 09:15:27 Write Type: DAO

I 09:15:27 Write Speed: 2x

I 09:15:27 BD-RE FastWrite: No

I 09:15:27 Link Size: Auto

I 09:15:27 Lock Volume: Yes

I 09:15:27 Test Mode: No

I 09:15:27 OPC: No

I 09:15:27 BURN-Proof: Enabled

I 09:15:27 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 09:15:27 Advanced Settings - Optimal Writing Speed: No

I 09:15:28 Filling Buffer... (40 MB)

I 09:15:28 Writing LeadIn...

I 09:15:38 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 09:15:38 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 10:02:14 Synchronising Cache...

I 10:02:15 Exporting Graph Data...

I 10:02:15 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_12-NOVEMBER-2010_09-15_SONY-ES1-02_2x.ibg

I 10:02:15 Export Successfully Completed!

I 10:02:15 Operation Successfully Completed! - Duration: 00:46:47

I 10:02:15 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,033 KB/s (2.0x)

I 10:02:15 Cycling Tray before Verify...

I 10:02:34 Device Ready!

I 10:02:34 Operation Started!

I 10:02:34 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 10:02:34 Source Media Type: BD-RE (Disc ID: SONY-ES1-02) (Speeds: 2x)

I 10:02:34 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 10:02:34 Image File Sectors: 12,219,392 (MODE1/2048)

I 10:02:34 Image File Size: 25,025,314,816 bytes

I 10:02:34 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 10:02:34 Image File Volume Set Identifier: 12219392_SECTORS

I 10:02:34 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 10:02:34 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 10:02:34 Image File File System(s): ISO9660

I 10:02:34 Read Speed (Data/Audio): MAX / MAX

I 10:02:34 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 10:02:34 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 10:18:59 Exporting Graph Data...

I 10:18:59 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_12-NOVEMBER-2010_09-15_SONY-ES1-02_2x.ibg

I 10:18:59 Export Successfully Completed!

I 10:18:59 Operation Successfully Completed! - Duration: 00:16:25

I 10:18:59 Average Verify Rate: 24,836 KB/s (5.5x) - Maximum Verify Rate: 36,110 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

TDK 2x BD-RE [TDKBLD-WBA-00] @ 2x



TDK - Part Number: BD-RE25JC2XE - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: TDKBLD-WBA-00

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 15:11:56 ImgBurn Version 2.5.3.0 started!

I 15:11:56 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 15:11:56 Total Physical Memory: 3,143,248 KB - Available: 1,134,968 KB

I 15:11:56 Initialising SPTI...

I 15:11:56 Searching for SCSI / ATAPI devices...

I 15:11:57 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 15:11:57 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 15:11:57 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 15:11:57 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 15:11:57 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 15:11:57 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 15:11:57 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:11:57 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 15:11:57 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 15:11:57 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 15:11:58 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:11:58 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 15:11:58 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 15:12:07 Operation Started!

I 15:12:07 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:12:07 Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 15:12:07 Quick Erase: No

I 15:12:07 Format Properly: Yes

I 15:12:07 Format Size: Preferred

I 15:12:07 Format With Full Certification: Yes

I 15:12:07 Format Without Spare Areas: Yes

I 15:12:07 Erasing Disc...

W 15:12:07 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 15:12:07 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 15:12:26 Operation Successfully Completed! - Duration: 00:00:19

I 15:12:26 Operation Started!

I 15:12:26 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:12:26 Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 15:12:26 Media Sectors: 12,219,392

I 15:12:26 BD-RE FastWrite: No

I 15:12:26 Zeroing Sectors...

I 15:59:04 Synchronising Cache...

I 15:59:04 Operation Successfully Completed! - Duration: 00:46:38 - Total Duration: 00:46:57

I 15:59:04 Average Write Rate: 8,734 KB/s (1.9x)



Results:

I 16:05:18 ImgBurn Version 2.5.3.0 started!

I 16:05:18 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 16:05:18 Total Physical Memory: 3,143,248 KB - Available: 1,180,392 KB

I 16:05:18 Initialising SPTI...

I 16:05:18 Searching for SCSI / ATAPI devices...

I 16:05:18 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 16:05:18 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 16:05:18 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 16:05:18 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 16:05:19 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 16:05:19 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 16:05:19 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 16:05:19 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 16:05:19 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 16:05:19 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 16:05:19 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:05:19 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 16:05:19 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 16:05:23 Operation Started!

I 16:05:23 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 16:05:23 Source File Sectors: 12,219,392 (MODE1/2048)

I 16:05:23 Source File Size: 25,025,314,816 bytes

I 16:05:23 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 16:05:23 Source File Volume Set Identifier: 12219392_SECTORS

I 16:05:23 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 16:05:23 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 16:05:23 Source File File System(s): ISO9660

I 16:05:23 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:05:23 Destination Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 16:05:23 Destination Media Sectors: 12,219,392

I 16:05:23 Write Mode: BD

I 16:05:23 Write Type: DAO

I 16:05:23 Write Speed: 2x

I 16:05:23 BD-RE FastWrite: No

I 16:05:23 Link Size: Auto

I 16:05:23 Lock Volume: Yes

I 16:05:23 Test Mode: No

I 16:05:23 OPC: No

I 16:05:23 BURN-Proof: Enabled

I 16:05:23 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 16:05:23 Advanced Settings - Optimal Writing Speed: No

I 16:05:23 Filling Buffer... (40 MB)

I 16:05:23 Writing LeadIn...

I 16:05:33 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 16:05:33 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 16:52:09 Synchronising Cache...

I 16:52:11 Exporting Graph Data...

I 16:52:11 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_13-NOVEMBER-2010_16-05_TDKBLD-WBA-000_2x.ibg

I 16:52:11 Export Successfully Completed!

I 16:52:11 Operation Successfully Completed! - Duration: 00:46:47

I 16:52:11 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,033 KB/s (2.0x)

I 16:52:11 Cycling Tray before Verify...

I 16:52:30 Device Ready!

I 16:52:30 Operation Started!

I 16:52:30 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:52:30 Source Media Type: BD-RE (Disc ID: TDKBLD-WBA-000) (Speeds: 2x)

I 16:52:30 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 16:52:30 Image File Sectors: 12,219,392 (MODE1/2048)

I 16:52:30 Image File Size: 25,025,314,816 bytes

I 16:52:30 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 16:52:30 Image File Volume Set Identifier: 12219392_SECTORS

I 16:52:30 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 16:52:30 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 16:52:30 Image File File System(s): ISO9660

I 16:52:30 Read Speed (Data/Audio): MAX / MAX

I 16:52:30 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 16:52:30 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 17:08:56 Exporting Graph Data...

I 17:08:56 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_13-NOVEMBER-2010_16-05_TDKBLD-WBA-000_2x.ibg

I 17:08:56 Export Successfully Completed!

I 17:08:56 Operation Successfully Completed! - Duration: 00:16:25

I 17:08:56 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,099 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Verbatim 2x BD-RE [VERBAT-IM0-000] @ 2x



Verbatim - Part Number: 43614 - 0903-02 - Made in Taiwan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: VERBAT-IM0-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 15:43:07 ImgBurn Version 2.5.3.0 started!

I 15:43:07 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 15:43:07 Total Physical Memory: 3,143,248 KB - Available: 1,144,392 KB

I 15:43:07 Initialising SPTI...

I 15:43:07 Searching for SCSI / ATAPI devices...

I 15:43:07 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 15:43:07 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 15:43:07 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 15:43:07 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 15:43:07 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 15:43:07 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 15:43:07 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 15:43:07 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 15:43:08 -> Drive 9 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 15:43:08 -> Drive 10 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:43:08 -> Drive 11 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 15:43:08 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 15:43:14 Operation Started!

I 15:43:14 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:43:14 Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 15:43:14 Quick Erase: No

I 15:43:14 Format Properly: Yes

I 15:43:14 Format Size: Preferred

I 15:43:14 Format With Full Certification: Yes

I 15:43:14 Format Without Spare Areas: Yes

I 15:43:14 Erasing Disc...

W 15:43:15 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 15:43:15 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 15:43:34 Operation Successfully Completed! - Duration: 00:00:19

I 15:43:34 Operation Started!

I 15:43:34 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 15:43:34 Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 15:43:34 Media Sectors: 12,219,392

I 15:43:34 BD-RE FastWrite: No

I 15:43:34 Zeroing Sectors...

I 16:30:12 Synchronising Cache...

I 16:30:12 Operation Successfully Completed! - Duration: 00:46:38 - Total Duration: 00:46:57

I 16:30:12 Average Write Rate: 8,734 KB/s (1.9x)



Results:

I 16:47:55 ImgBurn Version 2.5.3.0 started!

I 16:47:55 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 16:47:55 Total Physical Memory: 3,143,248 KB - Available: 1,052,276 KB

I 16:47:55 Initialising SPTI...

I 16:47:55 Searching for SCSI / ATAPI devices...

I 16:47:55 -> Drive 1 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 16:47:55 -> Drive 2 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 16:47:55 -> Drive 3 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 16:47:56 -> Drive 4 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 16:47:56 -> Drive 5 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 16:47:56 -> Drive 6 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 16:47:56 -> Drive 7 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 16:47:56 -> Drive 8 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 16:47:56 -> Drive 9 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 16:47:56 -> Drive 10 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:47:56 -> Drive 11 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 16:47:56 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 16:48:00 Operation Started!

I 16:48:00 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 16:48:00 Source File Sectors: 12,219,392 (MODE1/2048)

I 16:48:00 Source File Size: 25,025,314,816 bytes

I 16:48:00 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 16:48:00 Source File Volume Set Identifier: 12219392_SECTORS

I 16:48:00 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 16:48:00 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 16:48:00 Source File File System(s): ISO9660

I 16:48:00 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 16:48:00 Destination Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 16:48:00 Destination Media Sectors: 12,219,392

I 16:48:00 Write Mode: BD

I 16:48:00 Write Type: DAO

I 16:48:00 Write Speed: 2x

I 16:48:00 BD-RE FastWrite: No

I 16:48:00 Link Size: Auto

I 16:48:00 Lock Volume: Yes

I 16:48:00 Test Mode: No

I 16:48:00 OPC: No

I 16:48:00 BURN-Proof: Enabled

I 16:48:00 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 16:48:00 Advanced Settings - Optimal Writing Speed: No

I 16:48:01 Filling Buffer... (40 MB)

I 16:48:01 Writing LeadIn...

I 16:48:01 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 16:48:01 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 17:34:38 Synchronising Cache...

I 17:34:39 Exporting Graph Data...

I 17:34:39 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_15-NOVEMBER-2010_16-48_VERBAT-IM0-000_2x.ibg

I 17:34:39 Export Successfully Completed!

I 17:34:39 Operation Successfully Completed! - Duration: 00:46:38

I 17:34:39 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,033 KB/s (2.0x)

I 17:34:39 Cycling Tray before Verify...

I 17:34:58 Device Ready!

I 17:34:58 Operation Started!

I 17:34:58 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 17:34:58 Source Media Type: BD-RE (Disc ID: VERBAT-IM0-000) (Speeds: 2x)

I 17:34:58 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 17:34:58 Image File Sectors: 12,219,392 (MODE1/2048)

I 17:34:58 Image File Size: 25,025,314,816 bytes

I 17:34:58 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 17:34:58 Image File Volume Set Identifier: 12219392_SECTORS

I 17:34:58 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 17:34:58 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 17:34:58 Image File File System(s): ISO9660

I 17:34:58 Read Speed (Data/Audio): MAX / MAX

I 17:34:58 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 17:34:58 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 17:51:24 Exporting Graph Data...

I 17:51:24 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_15-NOVEMBER-2010_16-48_VERBAT-IM0-000_2x.ibg

I 17:51:24 Export Successfully Completed!

I 17:51:24 Operation Successfully Completed! - Duration: 00:16:25

I 17:51:24 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,081 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Victor JVC 2x BD-RE [JVCRE1-101-001] @ 2x



Victor JVC - Part Number: BV-E130JW5 - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: JVCRE1-101-001

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 11:40:12 ImgBurn Version 2.5.3.0 started!

I 11:40:12 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 11:40:12 Total Physical Memory: 3,143,248 KB - Available: 997,792 KB

I 11:40:12 Initialising SPTI...

I 11:40:12 Searching for SCSI / ATAPI devices...

I 11:40:12 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 11:40:12 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 11:40:12 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 11:40:12 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 11:40:12 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 11:40:12 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 11:40:13 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 11:40:13 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 11:40:13 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 11:40:13 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 11:40:13 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:40:13 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 11:40:13 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 11:40:49 Operation Started!

I 11:40:49 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:40:49 Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 11:40:49 Quick Erase: No

I 11:40:49 Format Properly: Yes

I 11:40:49 Format Size: Preferred

I 11:40:49 Format With Full Certification: Yes

I 11:40:49 Format Without Spare Areas: Yes

I 11:40:49 Erasing Disc...

W 11:40:49 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 11:40:49 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 11:41:09 Operation Successfully Completed! - Duration: 00:00:20

I 11:41:09 Operation Started!

I 11:41:09 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:41:09 Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 11:41:09 Media Sectors: 12,219,392

I 11:41:09 BD-RE FastWrite: No

I 11:41:09 Zeroing Sectors...

I 12:27:47 Synchronising Cache...

I 12:27:47 Operation Successfully Completed! - Duration: 00:46:38 - Total Duration: 00:46:58

I 12:27:47 Average Write Rate: 8,734 KB/s (1.9x)



Results:

I 12:46:29 ImgBurn Version 2.5.3.0 started!

I 12:46:30 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 12:46:30 Total Physical Memory: 3,143,248 KB - Available: 937,932 KB

I 12:46:30 Initialising SPTI...

I 12:46:30 Searching for SCSI / ATAPI devices...

I 12:46:30 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 12:46:30 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 12:46:30 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 12:46:30 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 12:46:30 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 12:46:30 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 12:46:30 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:46:30 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 12:46:30 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 12:46:30 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 12:46:31 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:46:31 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 12:46:31 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 12:46:37 Operation Started!

I 12:46:37 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:46:37 Source File Sectors: 12,219,392 (MODE1/2048)

I 12:46:37 Source File Size: 25,025,314,816 bytes

I 12:46:37 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 12:46:37 Source File Volume Set Identifier: 12219392_SECTORS

I 12:46:37 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 12:46:37 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 12:46:37 Source File File System(s): ISO9660

I 12:46:37 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:46:37 Destination Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 12:46:37 Destination Media Sectors: 12,219,392

I 12:46:37 Write Mode: BD

I 12:46:37 Write Type: DAO

I 12:46:37 Write Speed: 2x

I 12:46:37 BD-RE FastWrite: No

I 12:46:37 Link Size: Auto

I 12:46:37 Lock Volume: Yes

I 12:46:37 Test Mode: No

I 12:46:37 OPC: No

I 12:46:37 BURN-Proof: Enabled

I 12:46:37 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 12:46:37 Advanced Settings - Optimal Writing Speed: No

I 12:46:37 Filling Buffer... (40 MB)

I 12:46:37 Writing LeadIn...

I 12:46:47 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:46:47 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:33:24 Synchronising Cache...

I 13:33:25 Exporting Graph Data...

I 13:33:25 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_17-NOVEMBER-2010_12-46_JVCRE1-101-001_2x.ibg

I 13:33:25 Export Successfully Completed!

I 13:33:25 Operation Successfully Completed! - Duration: 00:46:47

I 13:33:25 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,033 KB/s (2.0x)

I 13:33:25 Cycling Tray before Verify...

I 13:33:44 Device Ready!

I 13:33:44 Operation Started!

I 13:33:44 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 13:33:44 Source Media Type: BD-RE (Disc ID: JVCRE1-101-001) (Speeds: 2x)

I 13:33:44 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 13:33:44 Image File Sectors: 12,219,392 (MODE1/2048)

I 13:33:44 Image File Size: 25,025,314,816 bytes

I 13:33:44 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 13:33:44 Image File Volume Set Identifier: 12219392_SECTORS

I 13:33:44 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 13:33:44 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 13:33:44 Image File File System(s): ISO9660

I 13:33:44 Read Speed (Data/Audio): MAX / MAX

I 13:33:44 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 13:33:44 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:50:09 Exporting Graph Data...

I 13:50:09 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_17-NOVEMBER-2010_12-46_JVCRE1-101-001_2x.ibg

I 13:50:09 Export Successfully Completed!

I 13:50:09 Operation Successfully Completed! - Duration: 00:16:24

I 13:50:09 Average Verify Rate: 24,836 KB/s (5.5x) - Maximum Verify Rate: 36,149 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Traxdata 2x BD-RE [RITEK-BW1-001] @ 2x



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: RITEK-BW1-001

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 11:23:00 ImgBurn Version 2.5.3.0 started!

I 11:23:00 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 11:23:00 Total Physical Memory: 3,143,248 KB - Available: 1,080,168 KB

I 11:23:00 Initialising SPTI...

I 11:23:00 Searching for SCSI / ATAPI devices...

I 11:23:00 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 11:23:00 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 11:23:00 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 11:23:00 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 11:23:00 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 11:23:00 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 11:23:00 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 11:23:00 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 11:23:00 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 11:23:00 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 11:23:01 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:23:01 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 11:23:01 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 11:23:08 Operation Started!

I 11:23:08 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:23:08 Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 11:23:08 Quick Erase: No

I 11:23:08 Format Properly: Yes

I 11:23:08 Format Size: Preferred

I 11:23:08 Format With Full Certification: Yes

I 11:23:08 Format Without Spare Areas: Yes

I 11:23:08 Erasing Disc...

W 11:23:08 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 11:23:08 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 11:23:28 Operation Successfully Completed! - Duration: 00:00:19

I 11:23:28 Operation Started!

I 11:23:28 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 11:23:28 Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 11:23:28 Media Sectors: 12,219,392

I 11:23:28 BD-RE FastWrite: No

I 11:23:28 Zeroing Sectors...

I 12:10:05 Synchronising Cache...

I 12:10:06 Operation Successfully Completed! - Duration: 00:46:37 - Total Duration: 00:46:57

I 12:10:06 Average Write Rate: 8,737 KB/s (1.9x)



Results:

I 12:11:26 ImgBurn Version 2.5.3.0 started!

I 12:11:26 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 12:11:26 Total Physical Memory: 3,143,248 KB - Available: 1,046,040 KB

I 12:11:26 Initialising SPTI...

I 12:11:26 Searching for SCSI / ATAPI devices...

I 12:11:26 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 12:11:26 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 12:11:26 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 12:11:26 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 12:11:26 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 12:11:26 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 12:11:26 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 12:11:26 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 12:11:26 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 12:11:27 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 12:11:27 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:11:27 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 12:11:27 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 12:11:44 Operation Started!

I 12:11:44 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:11:44 Source File Sectors: 12,219,392 (MODE1/2048)

I 12:11:44 Source File Size: 25,025,314,816 bytes

I 12:11:44 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 12:11:44 Source File Volume Set Identifier: 12219392_SECTORS

I 12:11:44 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 12:11:44 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 12:11:44 Source File File System(s): ISO9660

I 12:11:44 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:11:44 Destination Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 12:11:44 Destination Media Sectors: 12,219,392

I 12:11:44 Write Mode: BD

I 12:11:44 Write Type: DAO

I 12:11:44 Write Speed: 2x

I 12:11:44 BD-RE FastWrite: No

I 12:11:44 Link Size: Auto

I 12:11:44 Lock Volume: Yes

I 12:11:44 Test Mode: No

I 12:11:44 OPC: No

I 12:11:44 BURN-Proof: Enabled

I 12:11:44 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 12:11:44 Advanced Settings - Optimal Writing Speed: No

I 12:11:44 Filling Buffer... (40 MB)

I 12:11:44 Writing LeadIn...

I 12:11:54 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:11:54 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 12:58:31 Synchronising Cache...

I 12:58:32 Exporting Graph Data...

I 12:58:32 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_20-NOVEMBER-2010_12-11_RITEK-BW1-001_2x.ibg

I 12:58:32 Export Successfully Completed!

I 12:58:32 Operation Successfully Completed! - Duration: 00:46:48

I 12:58:32 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,038 KB/s (2.0x)

I 12:58:32 Cycling Tray before Verify...

I 12:58:50 Device Ready!

I 12:58:51 Operation Started!

I 12:58:51 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 12:58:51 Source Media Type: BD-RE (Disc ID: RITEK-BW1-001) (Speeds: 2x)

I 12:58:51 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 12:58:51 Image File Sectors: 12,219,392 (MODE1/2048)

I 12:58:51 Image File Size: 25,025,314,816 bytes

I 12:58:51 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 12:58:51 Image File Volume Set Identifier: 12219392_SECTORS

I 12:58:51 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 12:58:51 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 12:58:51 Image File File System(s): ISO9660

I 12:58:51 Read Speed (Data/Audio): MAX / MAX

I 12:58:51 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 12:58:51 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 13:15:16 Exporting Graph Data...

I 13:15:16 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_20-NOVEMBER-2010_12-11_RITEK-BW1-001_2x.ibg

I 13:15:16 Export Successfully Completed!

I 13:15:16 Operation Successfully Completed! - Duration: 00:16:25

I 13:15:16 Average Verify Rate: 24,810 KB/s (5.5x) - Maximum Verify Rate: 36,108 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Infiniti 2x BD-RE [PHILIP-W02-000] @ 2x



Infiniti - Part Number: RSBDREJC



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information:

Disc ID: PHILIP-W02-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 1

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

Last User Data PSN for Disc: 0

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



Format Capacities:

DT: 0x01 - NB: 12219392 (0x00BA7400) - TDP: 20480

FT: 0x00 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11826176 (0x00B47400) - TDP: 12288

FT: 0x30 - NB: 11564032 (0x00B07400) - TDP: 20480

FT: 0x30 - NB: 12088320 (0x00B87400) - TDP: 4096

FT: 0x31 - NB: 12219392 (0x00BA7400) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 12219391 (0x00BA73FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 01:46:48 ImgBurn Version 2.5.3.0 started!

I 01:46:48 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 01:46:48 Total Physical Memory: 3,143,248 KB - Available: 1,233,600 KB

I 01:46:48 Initialising SPTI...

I 01:46:48 Searching for SCSI / ATAPI devices...

I 01:46:49 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 01:46:49 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 01:46:49 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 01:46:49 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 01:46:49 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 01:46:49 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 01:46:49 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 01:46:49 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 01:46:49 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 01:46:49 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 01:46:50 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 01:46:50 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 01:46:50 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 01:47:30 Operation Started!

I 01:47:30 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 01:47:30 Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 01:47:30 Quick Erase: No

I 01:47:30 Format Properly: Yes

I 01:47:30 Format Size: Preferred

I 01:47:30 Format With Full Certification: Yes

I 01:47:30 Format Without Spare Areas: Yes

I 01:47:30 Erasing Disc...

W 01:47:30 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 01:47:30 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 01:47:49 Operation Successfully Completed! - Duration: 00:00:19

I 01:47:49 Operation Started!

I 01:47:49 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 01:47:49 Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 01:47:49 Media Sectors: 12,219,392

I 01:47:49 BD-RE FastWrite: No

I 01:47:49 Zeroing Sectors...

I 02:34:27 Synchronising Cache...

I 02:34:27 Operation Successfully Completed! - Duration: 00:46:37 - Total Duration: 00:46:57

I 02:34:27 Average Write Rate: 8,737 KB/s (1.9x)



Results:

I 08:44:08 ImgBurn Version 2.5.3.0 started!

I 08:44:08 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 08:44:08 Total Physical Memory: 3,143,248 KB - Available: 1,254,892 KB

I 08:44:08 Initialising SPTI...

I 08:44:08 Searching for SCSI / ATAPI devices...

I 08:44:08 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 08:44:08 -> Drive 2 - Info: ATAPI iHAS524 A BL2U (M:) (ATA)

I 08:44:08 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 08:44:08 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 08:44:09 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 08:44:09 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 08:44:09 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 08:44:09 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 08:44:09 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 08:44:09 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 08:44:09 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 08:44:09 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 08:44:09 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 08:44:15 Operation Started!

I 08:44:15 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 08:44:15 Source File Sectors: 12,219,392 (MODE1/2048)

I 08:44:15 Source File Size: 25,025,314,816 bytes

I 08:44:15 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 08:44:15 Source File Volume Set Identifier: 12219392_SECTORS

I 08:44:15 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 08:44:15 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 08:44:15 Source File File System(s): ISO9660

I 08:44:15 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 08:44:15 Destination Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 08:44:15 Destination Media Sectors: 12,219,392

I 08:44:15 Write Mode: BD

I 08:44:15 Write Type: DAO

I 08:44:15 Write Speed: 2x

I 08:44:15 BD-RE FastWrite: No

I 08:44:15 Link Size: Auto

I 08:44:15 Lock Volume: Yes

I 08:44:15 Test Mode: No

I 08:44:15 OPC: No

I 08:44:15 BURN-Proof: Enabled

I 08:44:15 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 08:44:15 Advanced Settings - Optimal Writing Speed: No

I 08:44:15 Filling Buffer... (40 MB)

I 08:44:15 Writing LeadIn...

I 08:44:25 Writing Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 08:44:25 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 09:31:01 Synchronising Cache...

I 09:31:03 Exporting Graph Data...

I 09:31:03 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_22-NOVEMBER-2010_08-44_PHILIP-W02-000_2x.ibg

I 09:31:03 Export Successfully Completed!

I 09:31:03 Operation Successfully Completed! - Duration: 00:46:47

I 09:31:03 Average Write Rate: 8,740 KB/s (1.9x) - Maximum Write Rate: 9,038 KB/s (2.0x)

I 09:31:03 Cycling Tray before Verify...

I 09:31:21 Device Ready!

I 09:31:22 Operation Started!

I 09:31:22 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 09:31:22 Source Media Type: BD-RE (Disc ID: PHILIP-W02-000) (Speeds: 2x)

I 09:31:22 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 09:31:22 Image File Sectors: 12,219,392 (MODE1/2048)

I 09:31:22 Image File Size: 25,025,314,816 bytes

I 09:31:22 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 09:31:22 Image File Volume Set Identifier: 12219392_SECTORS

I 09:31:22 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 09:31:22 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 09:31:22 Image File File System(s): ISO9660

I 09:31:22 Read Speed (Data/Audio): MAX / MAX

I 09:31:22 Verifying Session 1 of 1... (1 Track, LBA: 0 - 12219391)

I 09:31:22 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 12219391)

I 09:47:46 Exporting Graph Data...

I 09:47:46 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_22-NOVEMBER-2010_08-44_PHILIP-W02-000_2x.ibg

I 09:47:46 Export Successfully Completed!

I 09:47:46 Operation Successfully Completed! - Duration: 00:16:24

I 09:47:46 Average Verify Rate: 24,836 KB/s (5.5x) - Maximum Verify Rate: 36,149 KB/s (8.0x)






Scans:










Share this post


Link to post
Share on other sites

Maxell 2x BD-RE DL [TDKBLD-Wfa-000] @ 2x



Maxell - Part Number: BD-RE50.MEL.1P - Item# 58639200 - Made in Japan



Media Information:

PIONEER BD-RW BDR-205 1.09 (SATA)

Current Profile: BD-RE



Disc Information:

Status: Empty

State of Last Session: Empty

Erasable: Yes

Supported Write Speeds: 2x



BD Disc Information (L0):

Disc ID: TDKBLD-Wfa-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 2

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

First PAA of Data Zone: 131,072

Last PAA of Data Zone: 1,658,494



BD Disc Information (L1):

Disc ID: TDKBLD-Wfa-000

Disc Type: BD-RE

Disc Size: 120mm

Disc Class: 0

Disc Version: 2

Number of Layers: 2

Layer Type: Rewritable

DVD Layer Present: No

CD Layer Present: No

Channel Bit Length: 74.5nm (25GB Per Layer)

BCA Present: Yes

Maximum Transfer Rate: Not Specified

First PAA of Data Zone: 2,535,808

Last PAA of Data Zone: 4,063,230



Format Capacities:

DT: 0x01 - NB: 24438784 (0x0174E800) - TDP: 36864

FT: 0x00 - NB: 23652352 (0x0168E800) - TDP: 24576

FT: 0x30 - NB: 23652352 (0x0168E800) - TDP: 24576

FT: 0x30 - NB: 23259136 (0x0162E800) - TDP: 36864

FT: 0x30 - NB: 24307712 (0x0172E800) - TDP: 4096

FT: 0x31 - NB: 24438784 (0x0174E800) - TDP: 2048



Performance (Write Speed):

Descriptor 1...

-> B0: 0x00, B1: 0x00, B2: 0x00, B3: 0x00

-> EL: 24438783 (0x0174E7FF)

-> RS: 8,990 KB/s (2x) - WS: 8,990 KB/s (2x)



Full Erase:

I 18:26:42 ImgBurn Version 2.5.3.0 started!

I 18:26:42 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 18:26:42 Total Physical Memory: 3,143,248 KB - Available: 1,089,376 KB

I 18:26:42 Initialising SPTI...

I 18:26:42 Searching for SCSI / ATAPI devices...

I 18:26:42 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 18:26:42 -> Drive 2 - Info: ATAPI iHAS624 B GL24 (M:) (ATA)

I 18:26:43 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 18:26:43 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 18:26:43 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 18:26:43 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 18:26:43 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 18:26:43 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 18:26:43 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 18:26:43 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 18:26:43 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 18:26:43 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 18:26:43 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 18:29:14 Operation Started!

I 18:29:14 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 18:29:14 Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 18:29:14 Quick Erase: No

I 18:29:14 Format Properly: Yes

I 18:29:14 Format Size: Preferred

I 18:29:14 Format With Full Certification: Yes

I 18:29:14 Format Without Spare Areas: Yes

I 18:29:14 Erasing Disc...

W 18:29:14 FormatDisc(FT: 0x31, FST: 0x02) Not Supported!

W 18:29:14 FormatDisc(FT: 0x31, FST: 0x03) Not Supported!

I 18:29:38 Operation Successfully Completed! - Duration: 00:00:24

I 18:29:38 Operation Started!

I 18:29:38 Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 18:29:38 Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 18:29:38 Media Sectors: 24,438,784

I 18:29:38 BD-RE FastWrite: No

I 18:29:38 Zeroing Sectors...

I 20:03:04 Synchronising Cache...

I 20:03:05 Operation Successfully Completed! - Duration: 01:33:26 - Total Duration: 01:33:50

I 20:03:05 Average Write Rate: 8,718 KB/s (1.9x)



Results:

I 20:14:15 ImgBurn Version 2.5.3.0 started!

I 20:14:15 Microsoft Windows Vista Ultimate Edition (6.0, Build 6002 : Service Pack 2)

I 20:14:15 Total Physical Memory: 3,143,248 KB - Available: 1,210,032 KB

I 20:14:15 Initialising SPTI...

I 20:14:15 Searching for SCSI / ATAPI devices...

I 20:14:15 -> Drive 1 - Info: DTSOFT BDROM 1.05 (W:) (Virtual)

I 20:14:15 -> Drive 2 - Info: ATAPI iHAS624 B GL24 (M:) (ATA)

I 20:14:15 -> Drive 3 - Info: HL-DT-ST BD-RE GGW-H20L YL05 (O:) (ATA)

I 20:14:15 -> Drive 4 - Info: Optiarc DVD RW AD-7263S 1.02 (Q:) (ATA)

I 20:14:16 -> Drive 5 - Info: PIONEER DVD-RW DVR-217F 1.07 (P:) (ATA)

I 20:14:16 -> Drive 6 - Info: PLEXTOR DVDR PX-760A 1.07 (N:) (ATA)

I 20:14:16 -> Drive 7 - Info: ATAPI iHBS112 2 CL0F (U:) (SATA)

I 20:14:16 -> Drive 8 - Info: ATAPI iHES208 2 8L0C (S:) (SATA)

I 20:14:16 -> Drive 9 - Info: ELBY CLONEDRIVE 1.4 (V:) (SCSI)

I 20:14:16 -> Drive 10 - Info: HL-DT-ST BD-RE BH10LS30 1.00 (R:) (SATA)

I 20:14:16 -> Drive 11 - Info: PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:14:16 -> Drive 12 - Info: TSSTcorp DVDWBD SH-B123L SB02 (Y:) (SATA)

I 20:14:16 Found 2 DVD±RWs, 2 DVD±RW/RAMs, 1 BD-ROM, 1 BD-ROM/HD DVD-ROM, 2 BD-ROM/DVD±RWs, 3 BD-REs and 1 HD DVD-ROM/BD-RE!

I 20:14:22 Operation Started!

I 20:14:22 Source File: -==/\/[DISCOVERY IMAGE]\/\==-

I 20:14:22 Source File Sectors: 24,438,784 (MODE1/2048)

I 20:14:22 Source File Size: 50,050,629,632 bytes

I 20:14:22 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 20:14:22 Source File Volume Set Identifier: 24438784_SECTORS

I 20:14:22 Source File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 20:14:22 Source File Implementation Identifier: ImgBurn v2.5.3.0

I 20:14:22 Source File File System(s): ISO9660

I 20:14:22 Destination Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 20:14:22 Destination Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 20:14:22 Destination Media Sectors: 24,438,784

I 20:14:22 Write Mode: BD

I 20:14:22 Write Type: DAO

I 20:14:22 Write Speed: 2x

I 20:14:22 BD-RE FastWrite: No

I 20:14:22 Link Size: Auto

I 20:14:22 Lock Volume: Yes

I 20:14:22 Test Mode: No

I 20:14:22 OPC: No

I 20:14:22 BURN-Proof: Enabled

I 20:14:22 Write Speed Successfully Set! - Effective: 8,990 KB/s (2x)

I 20:14:22 Advanced Settings - Optimal Writing Speed: No

I 20:14:22 Filling Buffer... (40 MB)

I 20:14:23 Writing LeadIn...

I 20:14:35 Writing Session 1 of 1... (1 Track, LBA: 0 - 24438783)

I 20:14:35 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 24438783)

I 20:14:35 Writing Layer 0... (LBA: 0 - 12219391)

I 21:01:12 Writing Layer 1... (LBA: 12219392 - 24438783)

I 21:47:53 Synchronising Cache...

I 21:47:55 Exporting Graph Data...

I 21:47:55 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_28-NOVEMBER-2010_20-14_TDKBLD-Wfa-000_2x.ibg

I 21:47:55 Export Successfully Completed!

I 21:47:55 Operation Successfully Completed! - Duration: 01:33:32

I 21:47:55 Average Write Rate: 8,732 KB/s (1.9x) - Maximum Write Rate: 9,044 KB/s (2.0x)

I 21:47:55 Cycling Tray before Verify...

I 21:48:19 Device Ready!

I 21:48:19 Operation Started!

I 21:48:19 Source Device: [7:3:0] PIONEER BD-RW BDR-205 1.09 (X:) (SATA)

I 21:48:19 Source Media Type: BD-RE (Disc ID: TDKBLD-Wfa-000) (Speeds: 2x)

I 21:48:19 Image File: -==/\/[DISCOVERY IMAGE]\/\==-

I 21:48:19 Image File Sectors: 24,438,784 (MODE1/2048)

I 21:48:19 Image File Size: 50,050,629,632 bytes

I 21:48:19 Image File Volume Identifier: IMGBURN_DISCOVERY_IMAGE

I 21:48:19 Image File Volume Set Identifier: 24438784_SECTORS

I 21:48:19 Image File Application Identifier: IMGBURN V2.5.3.0 - THE ULTIMATE IMAGE BURNER!

I 21:48:19 Image File Implementation Identifier: ImgBurn v2.5.3.0

I 21:48:19 Image File File System(s): ISO9660

I 21:48:19 Read Speed (Data/Audio): MAX / MAX

I 21:48:19 Verifying Session 1 of 1... (1 Track, LBA: 0 - 24438783)

I 21:48:19 Verifying Track 1 of 1... (MODE1/2048, LBA: 0 - 24438783)

I 21:48:19 Verifying Layer 0... (LBA: 0 - 12219391)

I 22:10:04 Verifying Layer 1... (LBA: 12219392 - 24438783)

I 22:31:52 Exporting Graph Data...

I 22:31:53 Graph Data File: C:\Users\Richard\AppData\Roaming\ImgBurn\Graph Data Files\PIONEER_BD-RW_BDR-205_1.09_28-NOVEMBER-2010_20-14_TDKBLD-Wfa-000_2x.ibg

I 22:31:53 Export Successfully Completed!

I 22:31:53 Operation Successfully Completed! - Duration: 00:43:32

I 22:31:53 Average Verify Rate: 18,712 KB/s (4.2x) - Maximum Verify Rate: 27,217 KB/s (6.1x)






Scans:










Share this post


Link to post
Share on other sites
Sign in to follow this

×

Important Information

By using this site, you agree to our Terms of Use.
