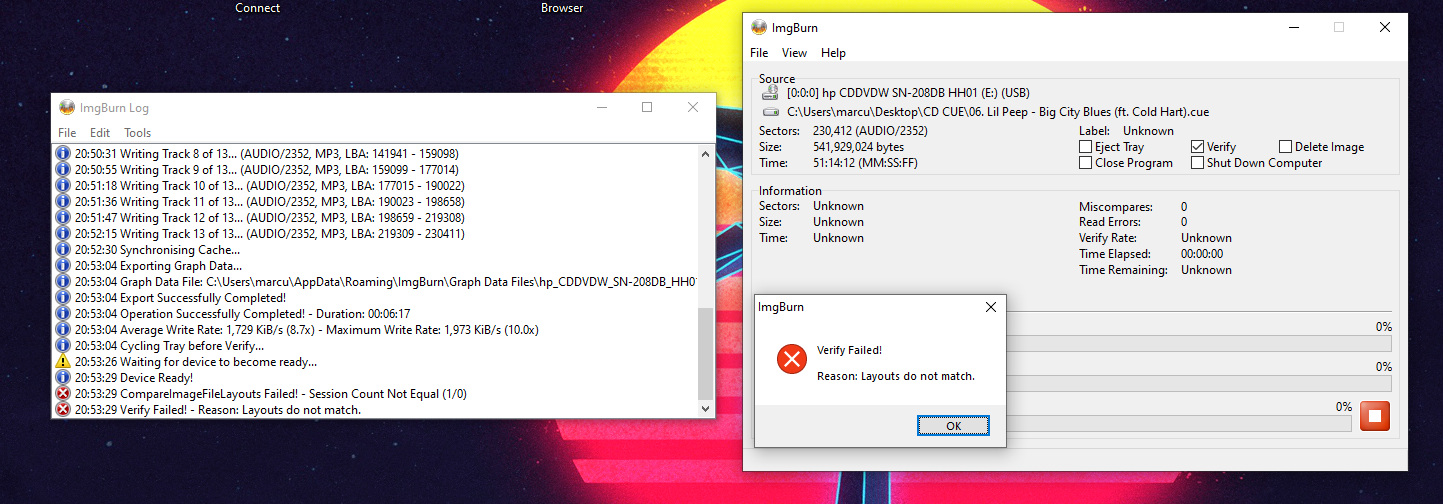

MTSGrim Posted 2 hours ago Posted 2 hours ago I have been trying for hours to burn 13 or so songs onto a CD. I thought switching to ImgBurn would be my saving grace but even after converting the files to a CUE, it gets through the burn process with no issue until the very end. I have an external disc reader and the tray pops open at the end which I am then prompted that is is normal I must close the tray manually and press OK. After doing so I'm greeted by "Verify Failed!" Reason: Layouts do not match. This project is extremely important to me and have yet to find any success with any burner software. I have tried windows media player, AnyBurn, BurnAware, and finally ImgBurn. I have also tried using a different disc reader to no avail. Some help would be greatly appreciated, thanks!
dbminter Posted 2 hours ago Posted 2 hours ago I've got a pretty good idea, but I'll need to see everything from the Log window for this failed burn. A screen grab won't do the trick. Copy and paste everything from the Log window or, if you've already closed ImgBurn, open the Log from Help and copy and paste the entirety of the burn and attempt to Verify that fails.
MTSGrim Posted 2 hours ago Author Posted 2 hours ago 2 minutes ago, dbminter said: I've got a pretty good idea, but I'll need to see everything from the Log window for this failed burn. A screen grab won't do the trick. Copy and paste everything from the Log window or, if you've already closed ImgBurn, open the Log from Help and copy and paste the entirety of the burn and attempt to Verify that fails. I 21:08:21 Operation Started! I 21:08:21 Source File: C:\Users\marcu\Desktop\CD CUE\06. Lil Peep - Big City Blues (ft. Cold Hart).cue I 21:08:21 Source File Sectors: 230,412 (AUDIO/2352) I 21:08:21 Source File Size: 541,929,024 bytes I 21:08:21 Source File File System(s): None I 21:08:21 Destination Device: [0:0:0] hp CDDVDW SN-208DB HH01 (E:) (USB) I 21:08:21 Destination Media Type: CD-R (Disc ID: 97m26s66f, CMC Magnetics Corp.) I 21:08:21 Destination Media Supported Write Speeds: 10x, 16x, 20x, 24x I 21:08:21 Destination Media Sectors: 359,844 I 21:08:21 Write Mode: CD I 21:08:21 Write Type: SAO I 21:08:21 Write Speed: MAX I 21:08:21 Lock Volume: Yes I 21:08:21 Test Mode: No I 21:08:21 OPC: No I 21:08:21 BURN-Proof: Enabled I 21:08:22 Write Speed Successfully Set! - Effective: 4,234 KB/s (24x) I 21:08:22 Filling Buffer... (80 MiB) I 21:08:24 Writing LeadIn... I 21:09:05 Writing Session 1 of 1... (13 Tracks, LBA: 0 - 230411) I 21:09:05 Writing Track 1 of 13... (AUDIO/2352, MP3, LBA: 0 - 11597) I 21:09:19 Writing Track 2 of 13... (AUDIO/2352, MP3, LBA: 11598 - 39095) I 21:09:50 Writing Track 3 of 13... (AUDIO/2352, MP3, LBA: 39096 - 59711) I 21:10:10 Writing Track 4 of 13... (AUDIO/2352, MP3, LBA: 59712 - 81763) I 21:10:30 Writing Track 5 of 13... (AUDIO/2352, MP3, LBA: 81764 - 96465) I 21:10:43 Writing Track 6 of 13... (AUDIO/2352, MP3, LBA: 96466 - 112805) I 21:10:58 Writing Track 7 of 13... (AUDIO/2352, MP3, LBA: 112806 - 141940) I 21:11:21 Writing Track 8 of 13... (AUDIO/2352, MP3, LBA: 141941 - 159098) I 21:11:35 Writing Track 9 of 13... (AUDIO/2352, MP3, LBA: 159099 - 177014) I 21:11:48 Writing Track 10 of 13... (AUDIO/2352, MP3, LBA: 177015 - 190022) I 21:11:58 Writing Track 11 of 13... (AUDIO/2352, MP3, LBA: 190023 - 198658) I 21:12:04 Writing Track 12 of 13... (AUDIO/2352, MP3, LBA: 198659 - 219308) I 21:12:18 Writing Track 13 of 13... (AUDIO/2352, MP3, LBA: 219309 - 230411) I 21:12:26 Synchronising Cache... I 21:13:02 Exporting Graph Data... I 21:13:02 Graph Data File: C:\Users\marcu\AppData\Roaming\ImgBurn\Graph Data Files\hp_CDDVDW_SN-208DB_HH01_SUNDAY-AUGUST-23-2026_9-08_PM_97m26s66f_MAX.ibg I 21:13:02 Export Successfully Completed! I 21:13:02 Operation Successfully Completed! - Duration: 00:04:40 I 21:13:02 Average Write Rate: 2,632 KiB/s (13.3x) - Maximum Write Rate: 3,590 KiB/s (18.1x) I 21:13:02 Cycling Tray before Verify... W 21:13:15 Waiting for device to become ready... I 21:13:20 Device Ready! E 21:13:20 CompareImageFileLayouts Failed! - Session Count Not Equal (1/0) E 21:13:20 Verify Failed! - Reason: Layouts do not match. here ya go!
MTSGrim Posted 2 hours ago Author Posted 2 hours ago If it helps, I am also using a Verbatim CD-R for this
dbminter Posted 1 hour ago Posted 1 hour ago Everything you posted explains a lot and backs up what I thought. This is the most important part: I 21:08:21 Destination Media Type: CD-R (Disc ID: 97m26s66f, CMC Magnetics Corp.) You're using Verbatim Life Series CD-R's which are made by CMC Magnetics Corporation. CMC made discs are the absolute bottom of the barrel discs. About half of the issues we've ever seen on this board are caused by CMC discs. I would recommend you try some higher quality discs like the Verbatim DataLife Plus CD-R's. NOT the Life Series ones. Or CMC Pro. Despite the name, CMC Pro discs are made to Taiyo Yuden standards, which made some of the best media out there. Verbatim, too, is also owned by CMC, but the DataLife Plus series are farmed out to Mitsubishi, which are the best quality discs out there.
MTSGrim Posted 1 hour ago Author Posted 1 hour ago Just now, dbminter said: Everything you posted explains a lot and backs up what I thought. This is the most important part: I 21:08:21 Destination Media Type: CD-R (Disc ID: 97m26s66f, CMC Magnetics Corp.) You're using Verbatim Life Series CD-R's which are made by CMC Magnetics Corporation. CMC made discs are the absolute bottom of the barrel discs. About half of the issues we've ever seen on this board are caused by CMC discs. I would recommend you try some higher quality discs like the Verbatim DataLife Plus CD-R's. NOT the Life Series ones. Or CMC Pro. Despite the name, CMC Pro discs are made to Taiyo Yuden standards, which made some of the best media out there. Verbatim, too, is also owned by CMC, but the DataLife Plus series are farmed out to Mitsubishi, which are the best quality discs out there. thank you so much, i figured it was a disc problem at this point. Read awful things about verbatim today haha. Would Maxell Audio discs be a better option? or should i just go for the datalife plus?
dbminter Posted 1 hour ago Posted 1 hour ago I don't know who makes Maxell's discs. Maxell made some decent DVD-R's, but I had a few that were partially unreadable 20 years after writing. Since I do know who makes Verbatim's DataLife Plus CD-R and I use them all the time, I would go with what I knew and pay the extra for DataLife Plus.
