Cynthia Posted February 13, 2006 Posted February 13, 2006 (edited) Anyone heard of this problem before? Previusly I used the modified firmware 2.U3 on my Nec3520 and had no problems. Now with the latest modified firmware I have a problem. Using ImgBurn for the burnings. No problems during the burning or the verify stage (ejecting tray also). But when I after the burning try to read the burned disc - the Nec will not read it. Not even in Windows will it show up. Also tried to burn with Nero 7 - gave the same result (not really true - ImgBurn gave better result in the scanning with DVDInfoPro... ). I can read the burned disc in my other burner - a Pioneer and they also work in my stand alone player. Old burns on the same media but with the older firmware the Nec can still read. Also if I try to burn with other brands of media - then the burned disc will show up in the Nec. Burning the same MCC03 disc in the Pioneer - then the Nec can read it. Is it a problem with the firmware or my burner? #39;( The burned disc looks ok when I scan it: ** INFO : Drive = _NEC DVD_RW ND-3520AW - [FW 2.U4] - [ATAPI] ** INFO : Write Capabilities = DVD+R DVD+R-DL DVD+RW ** INFO : Write Capabilities = DVD-R DVD-R-DL DVD-RW ** INFO : Disc = [DVD-R:MCC 03RG20 ] ---------------------------------------------------------------------------- Unique Disc Identifier : [DVD-R:MCC 03RG20 ] ---------------------------------------------------------------------------- Disc & Book Type : [DVD-R] - [DVD-R] Manufacturer Name : [Mitsubishi Chemical Corp.] Manufacturer ID : [MCC 03RG20 ] Blank Disc Capacity : [2,298,496 Sectors = 4.71 GB (4.38 GiB)] ---------------------------------------------------------------------------- Edited February 13, 2006 by cynthia
cornholio7 Posted February 13, 2006 Posted February 13, 2006 hi cynthia have you tried flahing back and seeing if the problem is still there?
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 (edited) Hi! Tried to reflash it with the Nec original 3.06 version (extracted the .bin from the .exe file as the original Nec installer with firmware wouldn't accept the flashing). That firmware gave the same problem. It gave also a lower quality in the burning according to the scanning. I'll try to flash it back to version 2.U3. To see if the problem is with that version also. Edited February 13, 2006 by cynthia
Grain Posted February 13, 2006 Posted February 13, 2006 (edited) I don't have that problem with 2.U3 Cynthia. Just downloaded 2.U4. Got the system tied up for about an hour before I can flash it, if you haven't got it sorted by then I'll give it a whirl. Edit: I don't have that exact media code though.... Edited February 13, 2006 by Grain
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 (edited) No, the old firmware 2.U3 gave the same problem. Sounds as a case for Mulder and Scully... #39;( Edited February 13, 2006 by cynthia
Grain Posted February 13, 2006 Posted February 13, 2006 This is as close as I have to your media code Cynthia, Verb +R 16x, MCC-004-00, burning one as we speak, I'll then see if it can read it.
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 jmet flashed his Nec3520 with 2.U4 and also burned a MCC-004 disc and he had no problems.
Grain Posted February 13, 2006 Posted February 13, 2006 (edited) Plays fine in PowerDVD & shows up fine that "other" program, although windows sees nothing, it shows no title when in the nec drive, but does in the BenQ 1655. Strange I 22:24:10 ImgBurn Version 1.1.0.0 started! I 22:24:10 Microsoft Windows XP Home Edition (5.1, Build 2600 : Service Pack 2) I 22:24:10 Initialising SPTI... I 22:24:10 Searching for SCSI / ATAPI devices... I 22:24:10 Found 1 DVD-ROM and 3 DVD?RWs! I 22:28:08 Operation Started! I 22:28:08 Source File: G:\DVD ISO's\Maxtor ISO's\------------.ISO I 22:28:08 Source File Sectors: 2,285,848 (MODE1/2048) I 22:28:08 Source File Size: 4,681,416,704 bytes I 22:28:08 Source File Implementation Identifier: DVD Shrink I 22:28:08 Destination Device: [1:0:0] _NEC DVD_RW ND-3520AW 2.U4 (E:) (ATA) I 22:28:08 Destination Media Type: DVD+R (Disc ID: MCC-004-00) (Speeds: 2.4x, 4x, 6x, 8x, 12x, 16x) I 22:28:08 Destination Media Sectors: 2,295,104 I 22:28:08 Write Mode: DVD I 22:28:08 Write Type: DAO I 22:28:08 Write Speed: MAX I 22:28:08 Link Size: Auto I 22:28:08 Test Mode: No I 22:28:08 BURN-Proof: Enabled I 22:28:09 Filling Buffer... I 22:28:15 Writing LeadIn... I 22:28:37 Writing Image... I 22:33:52 Synchronising Cache... I 22:33:53 Closing Track... I 22:34:14 Finalising Disc... I 22:34:26 Operation Successfully Completed! - Duration: 00:06:17 I 22:34:26 Average Write Rate: 14,559 KB/s (10.5x) - Maximum Write Rate: 22,202 KB/s (16.0x) I 22:34:26 Cycling Tray before Verify... I 22:34:43 Operation Started! I 22:34:43 Source Device: [1:0:0] _NEC DVD_RW ND-3520AW 2.U4 (E:) (ATA) I 22:34:43 Source Media Type: DVD+R (Disc ID: MCC-004-00) (Speeds: 2.4x, 4x, 6x, 8x, 12x, 16x) I 22:34:43 Image File: G:\DVD ISO's\Maxtor ISO's\------------.ISO I 22:34:43 Image File Sectors: 2,285,848 (MODE1/2048) I 22:34:43 Image File Size: 4,681,416,704 bytes I 22:34:43 Image File Implementation Identifier: DVD Shrink I 22:34:43 Verifying Sectors... I 22:40:19 Operation Successfully Completed! - Duration: 00:05:30 I 22:40:19 Average Verify Rate: 13,853 KB/s (10.0x) - Maximum Verify Rate: 21,108 KB/s (15.2x) Edited February 13, 2006 by Grain
chewy Posted February 13, 2006 Posted February 13, 2006 2U3 and 2U4 are both based on the factory 3.06, my drive went downhill with both, Dee reccomended I go back, michealdeboer said 2U2 is based on 3.05
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 Hi chewy and thanks for the info! Couldn't find 2.U2 on the webside but I found 2.U2 on my hard disk so I'll give a try with that one. If someone else wants it - I've uploaded it to this location: http://www.digital-digest.com/~cynthia/files/2U2.rpc1.zip
Grain Posted February 13, 2006 Posted February 13, 2006 At work now, but if I remember right the above burn scanned in the low 90% neighborhood, which is all I ask of this drive with 16X burns. Does some nice work at 8X, or rather did with older firmware, will have to test 2.U4 & see how it does a little slower.
Grain Posted February 13, 2006 Posted February 13, 2006 Does it act that way with non-MCC media also?
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 have you tried a total power down? No, will try that also. Does it act that way with non-MCC media also?Using printables of those Verbatims also. Don't have any of those home. Will get some. I do have some discs with the wellknowed named Princo... Will try with some of those highqualitydiscs...
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 The latest burn with firmware 2.U2. Don't look that good.
Cynthia Posted February 13, 2006 Author Posted February 13, 2006 Restarting the PC from unplugged powerconnection did not help. The Princo could be read after the burn in the Nec... The burn with the highgrade disc: I 20:22:37 ImgBurn Version 1.1.0.0 started! I 20:22:37 Microsoft Windows XP Professional (5.1, Build 2600 : Service Pack 2) I 20:22:37 Initialising SPTI... I 20:22:37 Searching for SCSI / ATAPI devices... I 20:22:37 Found 2 DVD?RWs! I 20:23:03 Operation Started! I 20:23:03 Source File: H:\KILLME.ISO I 20:23:03 Source File Sectors: 1?625?799 (MODE1/2048) I 20:23:03 Source File Size: 3?329?636?352 bytes I 20:23:03 Source File Implementation Identifier: DVD Shrink I 20:23:03 Destination Device: [1:1:0] _NEC DVD_RW ND-3520AW 2.U4 (F:) (ATA) I 20:23:03 Destination Media Type: DVD-R (Disc ID: PRINCO) (Speeds: 2x; 4x; 6x; 8x) I 20:23:03 Destination Media Sectors: 2?297?888 I 20:23:03 Write Mode: DVD I 20:23:03 Write Type: DAO I 20:23:03 Write Speed: MAX I 20:23:03 Link Size: Auto I 20:23:03 Test Mode: No I 20:23:03 BURN-Proof: Enabled I 20:23:03 Filling Buffer... I 20:23:06 Writing LeadIn... I 20:23:51 Writing Image... I 20:30:53 Synchronising Cache... I 20:31:13 Operation Successfully Completed! - Duration: 00:08:09 I 20:31:13 Average Write Rate: 7?705 KB/s (5.6x) - Maximum Write Rate: 11?508 KB/s (8.3x) I 20:31:13 Cycling Tray before Verify... I 20:31:30 Operation Started! I 20:31:30 Source Device: [1:1:0] _NEC DVD_RW ND-3520AW 2.U4 (F:) (ATA) I 20:31:30 Source Media Type: DVD-R (Disc ID: PRINCO) (Speeds: 2x; 4x; 6x; 8x) I 20:31:30 Image File: H:\KILLME.ISO I 20:31:30 Image File Sectors: 1?625?799 (MODE1/2048) I 20:31:30 Image File Size: 3?329?636?352 bytes I 20:31:30 Image File Implementation Identifier: DVD Shrink I 20:31:30 Verifying Sectors... E 20:35:55 Failed to read Sector 1430752 - Unrecovered Read Error E 20:35:55 Failed to Verify Sectors! E 20:35:58 Operation Failed! - Duration: 00:04:25 I 20:35:58 Average Verify Rate: 10?798 KB/s (7.8x) - Maximum Verify Rate: 16?724 KB/s (12.1x)

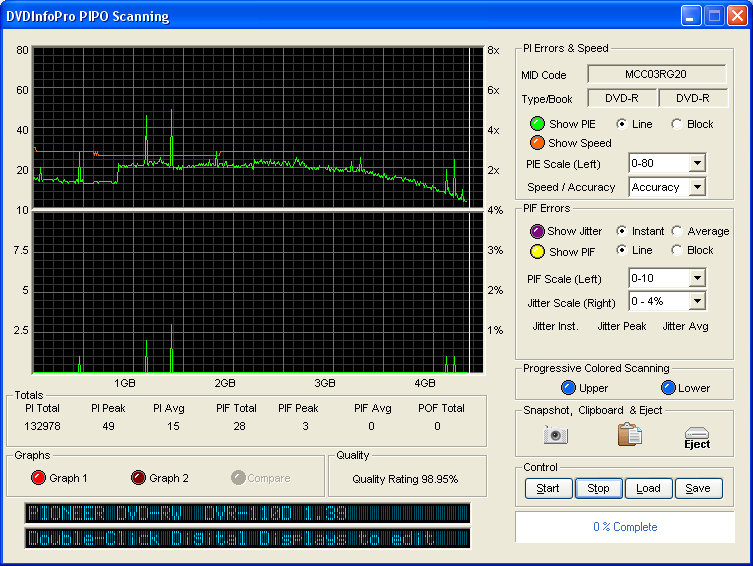

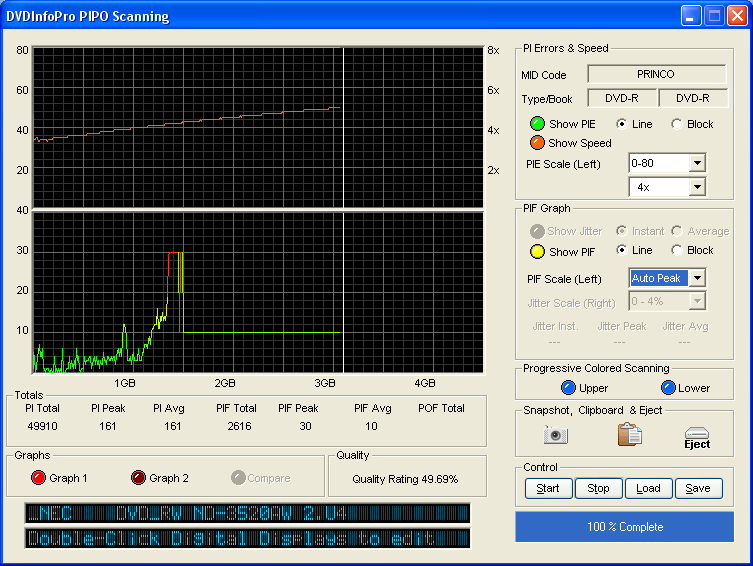

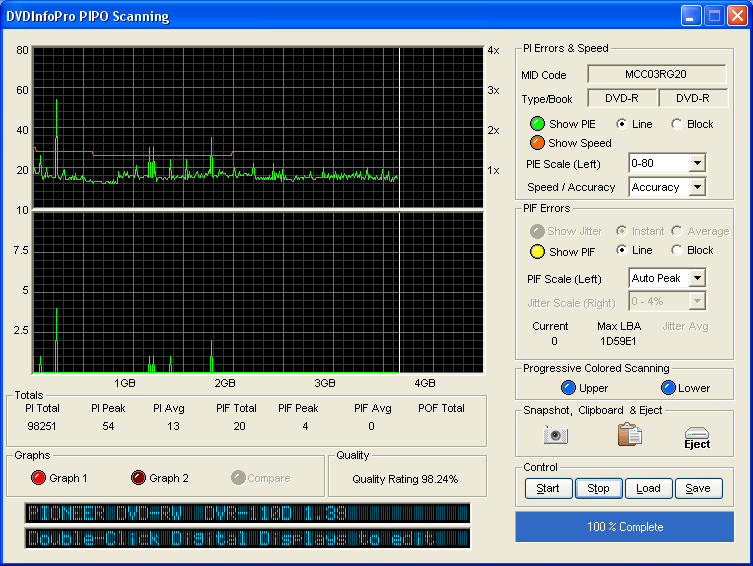

lfcrule1972 Posted February 14, 2006 Posted February 14, 2006 The 95.89% quality burn looks reasonable, ok its not 99% like the TYG02's but I am sure that would play ok.... The 49.69% one is pants though..... strange that Princo got that high a score
jmet Posted February 14, 2006 Posted February 14, 2006 cynthia, send me one of those DVD-R:MCC 03RG20 blanks and I'll test it out on mine. PM me for my address.
Cynthia Posted February 15, 2006 Author Posted February 15, 2006 I think Cynthia needs a Benq. Cynthia got a Nec4551A. #39;( Also got another spindle of those discs (this time printable) - but the same problem. The burning looks ok and it can read those tricky discs. Even the old burns with the Nec3520 could be read.
chewy Posted February 15, 2006 Posted February 15, 2006 I think Cynthia needs a Benq. Cynthia got a Nec4551A. #39;( to scan with and establish a baseline of sorts
